Jershtech DC Motors
Jershtech DC Motors
| Model Number | BL3650I | Usage | Fan, Home Appliance |
| Certification | ROHS | Type | Micro Motor |
| Torque | 25mNm | Construction | Permanent Magnet |
| Commutation | Brushless | Protect Feature | Drip-proof |
| Speed(RPM) | 3500rpm no load | Continuous Current(A) | 0.18A no load |
| Output Power | 1W~100W | Voltage(V) | 12V |
| Efficiency | IE 1 | Rated load speed | 3000rpm |
| Rated load torque | 25mNm | Rated load current | 0.58A |
| Starting torque | 162mnm | Starting current | 2.8A |
| The length of the motor | 50±0.3mm | Shaft dia | 4.0mm |
| Shaft length | Can be customized | Application | Air pump |
Packaging Detail: 1. Export standard packing; 2. Factory standard packing; 3. Packaging can be customized according to customer's request.
Delivery Detail: 15 days for samples, 25-30 DAYS for batch.
dc motor, dc gear motor, dc brushless motor, OEM and provide motor product design
Specifications: 12v 24v 10w 15w 30w 50w 100w 150w brushless dc motor

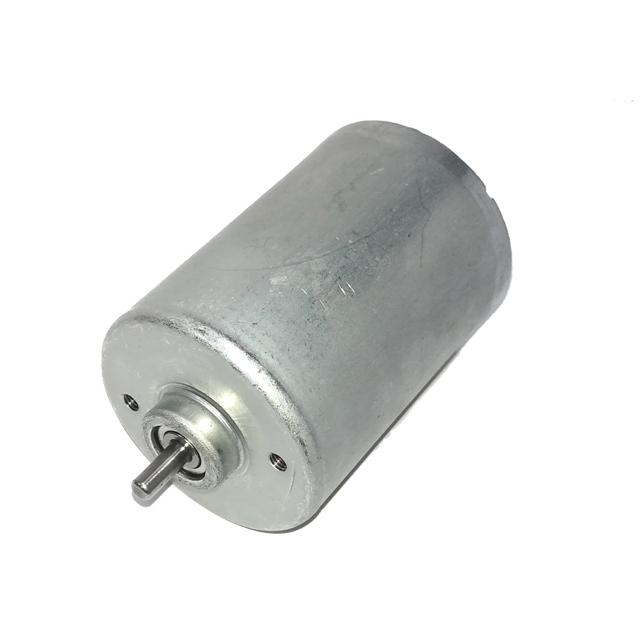

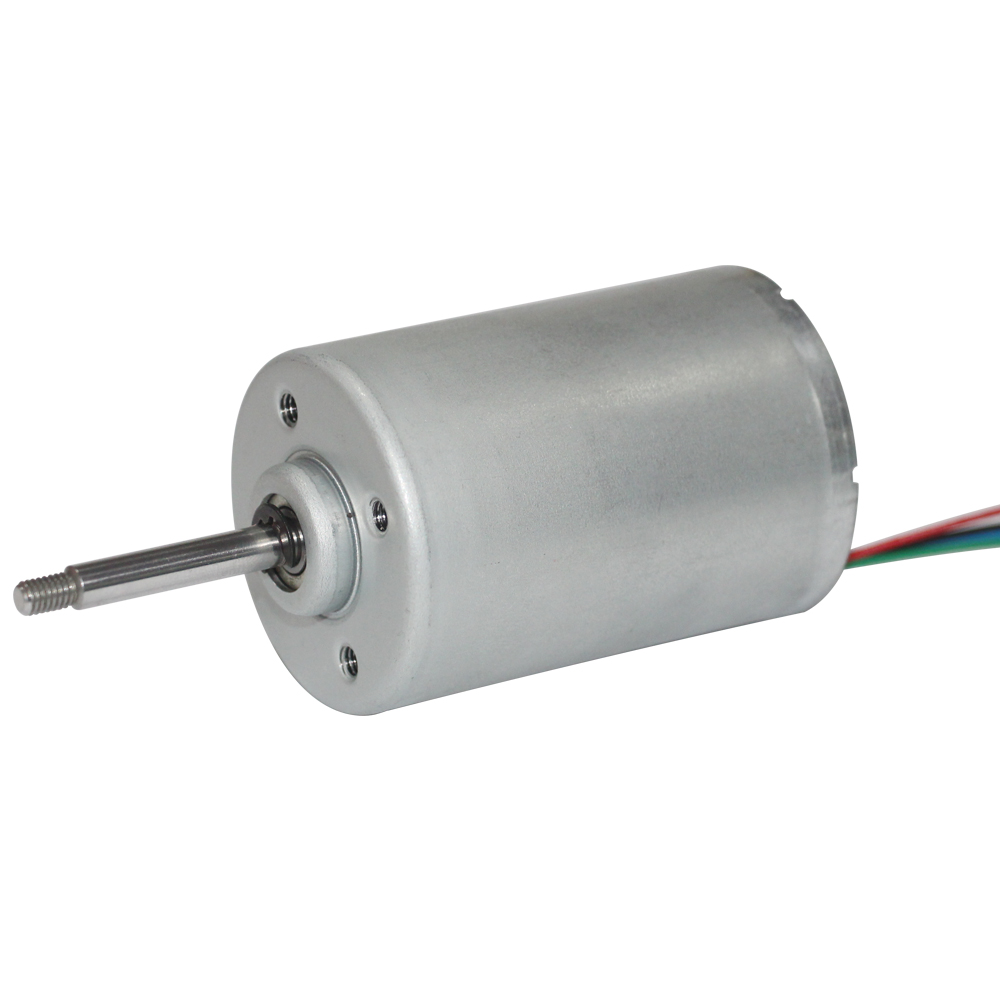

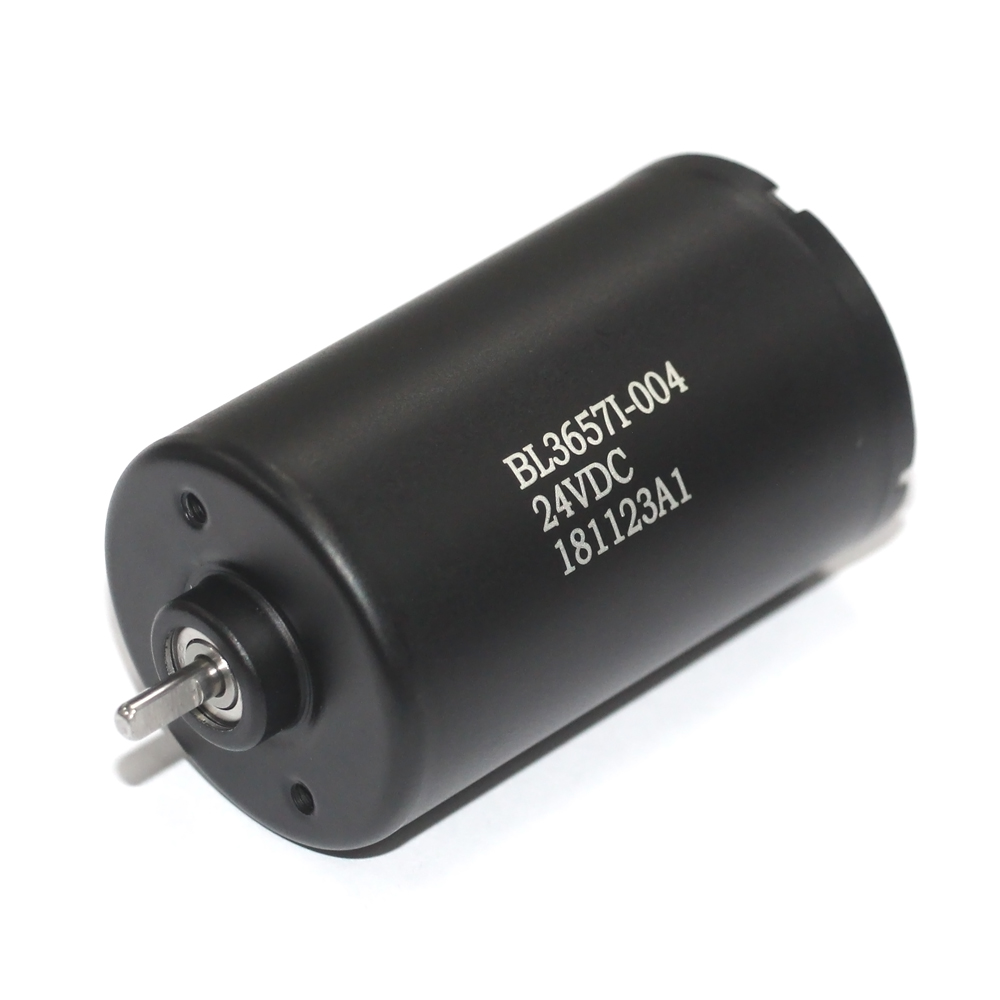

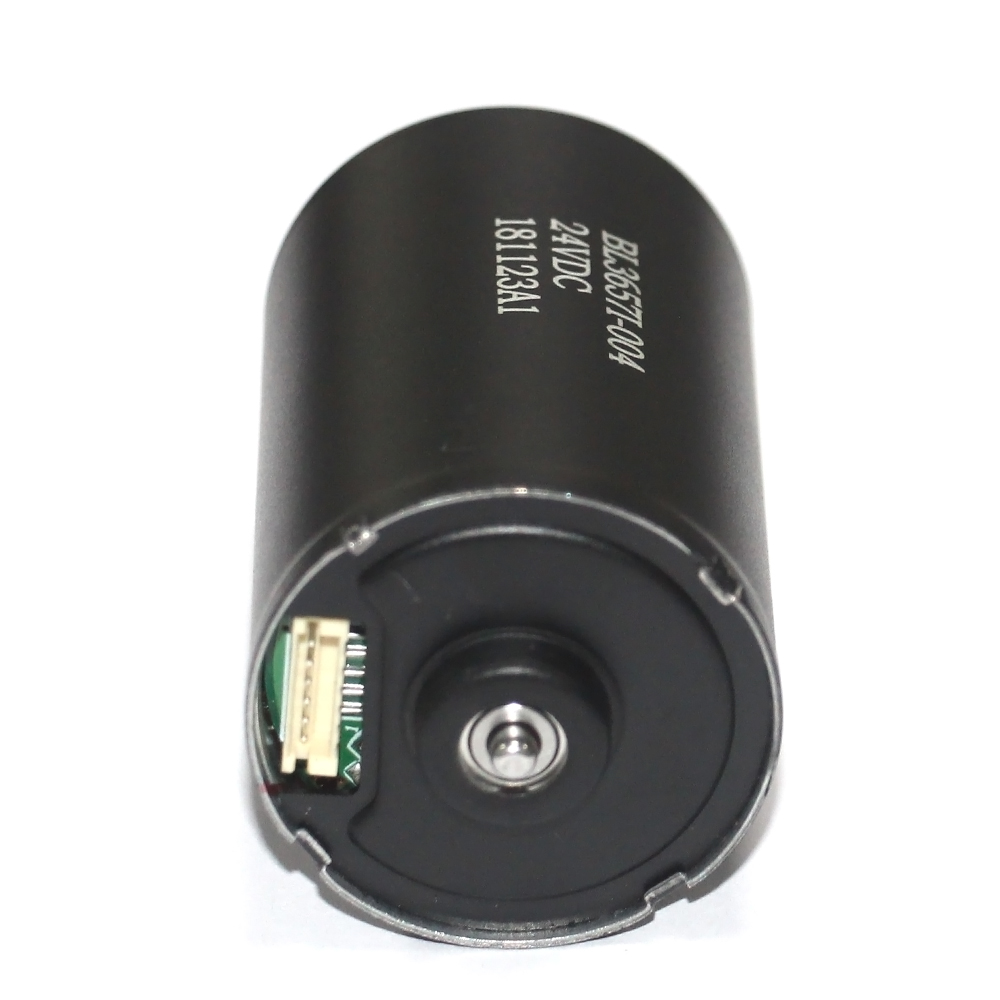

MOTOR PHOTOS:
Since establishing in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. Products are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, power tools, and automotive fields.
