| Product Name | Metal Brush DC Motor |
| Model Number | DFF-030PA |
| Usage | CD Player/Automobile CD Player, MD Player/ Recorder, Camcorder, etc. |
| Torque | 20g.cm |
| Commutation | Brush |
| Protect Feature | Totally Enclosed |
| Efficiency | IE 1 |
| Motor type | Micro DC Motor |
| Brush Type | Metal Brush |
| Construction | Permanent Magnet |

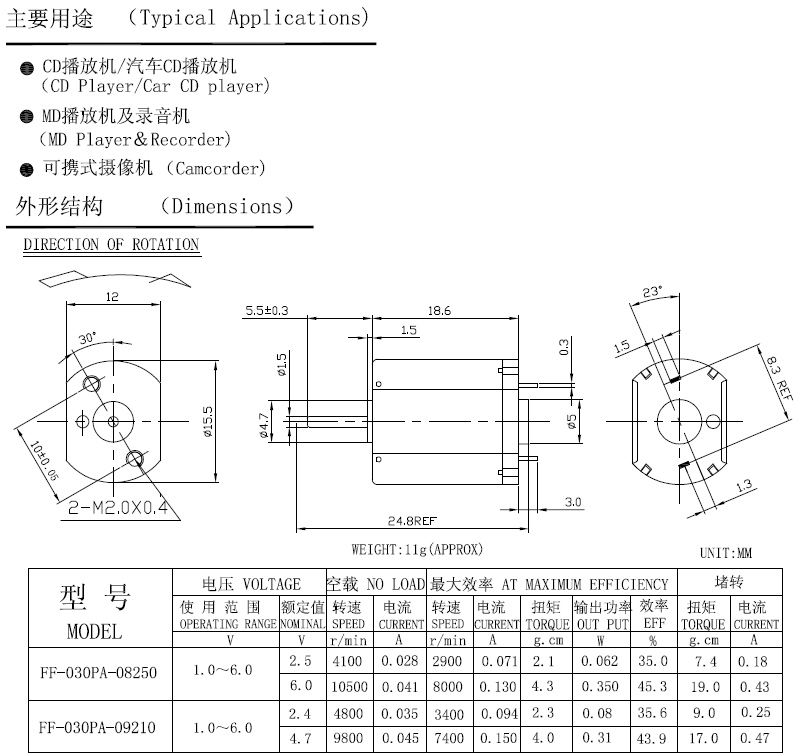

| Size | Diam 15.5mm x W 12mm x L 18.6mm |
| Bearing Type | Oil-bearing |
| Motor Shape | Flat |
| Torque(At max efficiency) | 2~10g.cm |
| Speed | 3000~30000rpm |
| Continuous Current(A) | 0.05~0.25A |

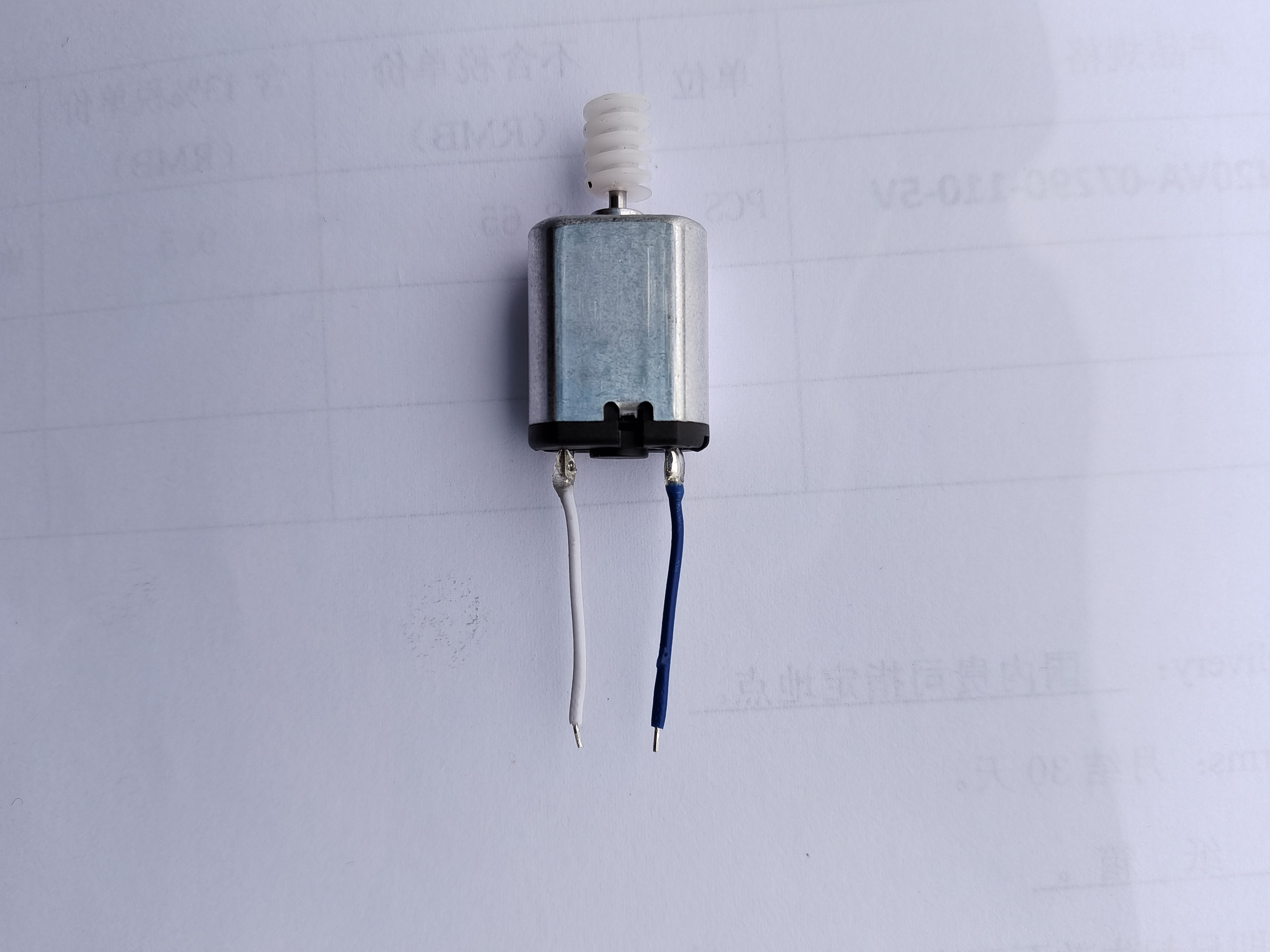

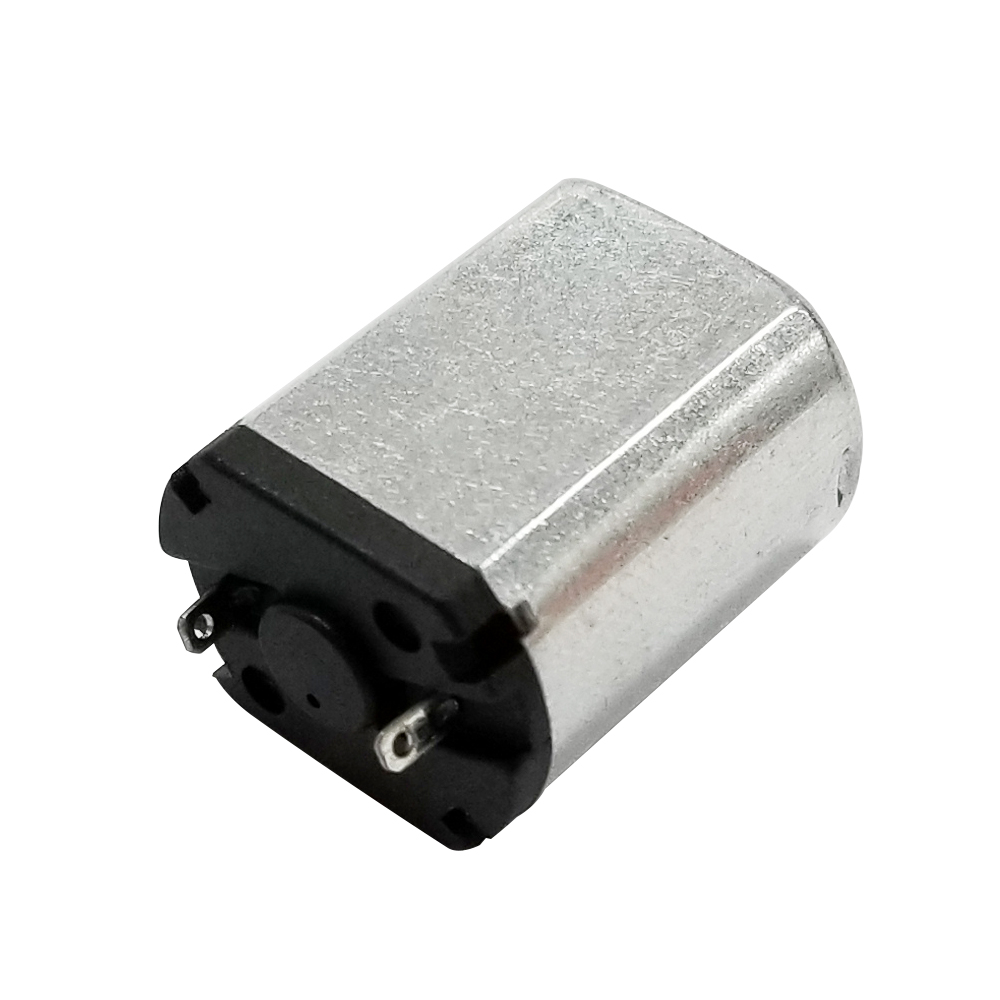

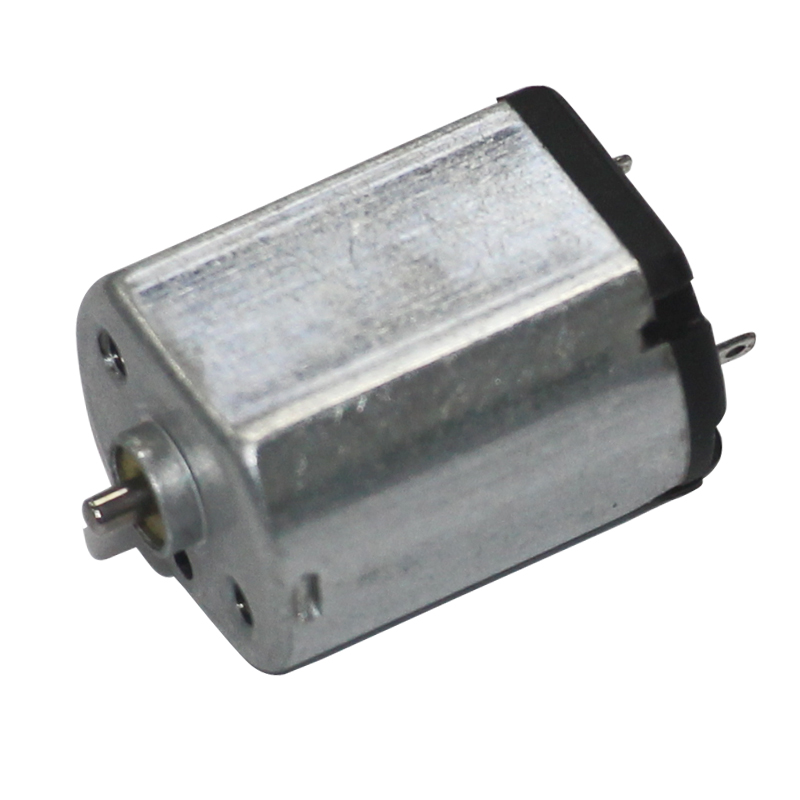

The Metal Brush DC Motor is a high-efficiency device with an output range of 0.1 to 1W, operating voltage of 1V to 6V, speed of 3000 to 30000 RPM, continuous current between 0.05A to 0.25A, and a stall torque of 20g.cm. It features a threaded hole size of 2-M2.0 x 0.4 and is typically used for smart lock applications. Customization is available for the worm gear according to customer requirements.
The application scenarios are very broad, such as power tools, home appliances, medical equipment, small electric vehicles, toys and other fields.

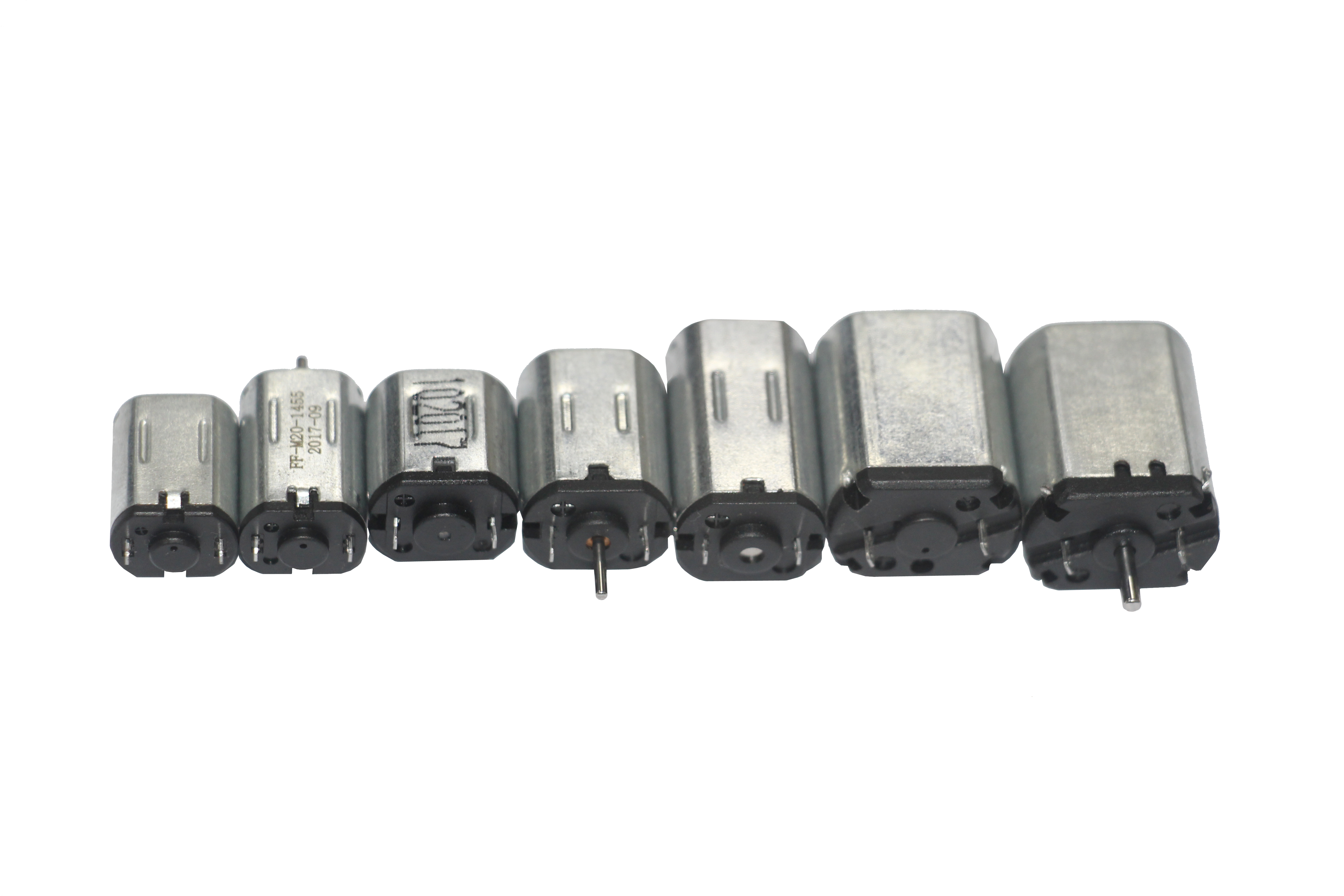

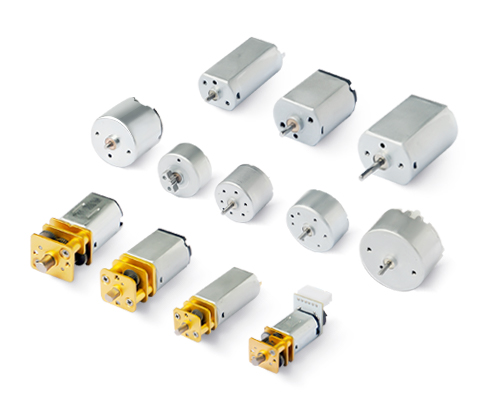

Φ10mm: FF-M10, FF-M20, FF-M30
Φ12mm: FF-N10, FF-N20, FF-N30
Φ20mm: FF130, FF180
Φ24mm: FF260, RC260, FF280, RC280, RF300, RF370
Φ28mm: RC360, RC365, RC380, RC385, RC390, RC395
Φ36mm: RS540, RS545, RS550, RS555, RS560, RS565
Φ42mm: RS750, RS755, RS770, RS775

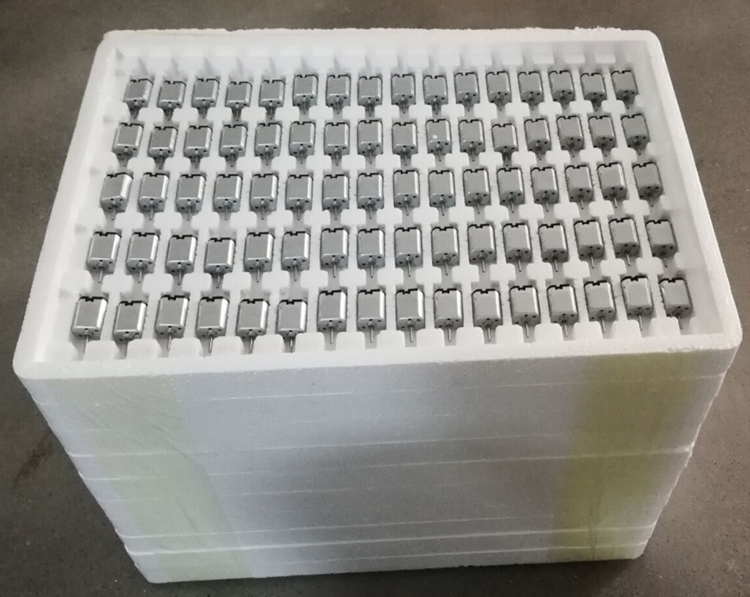

Package: Foam Box / EPE + Export Carton
Delivery Time: 3 working days for samples; 10-20 working days for bulk order.
