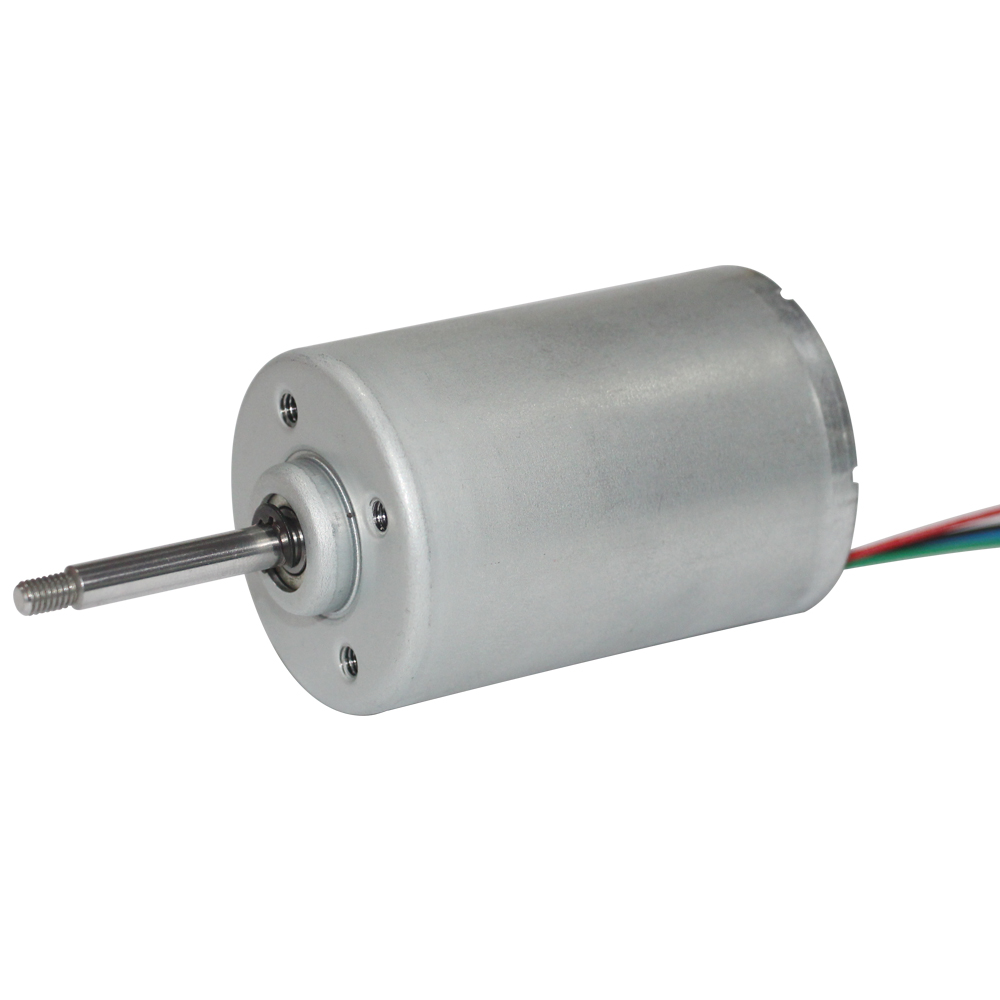

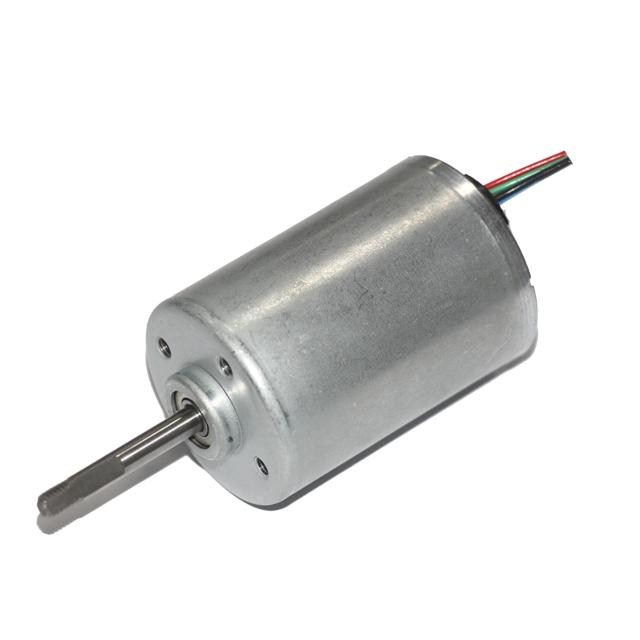

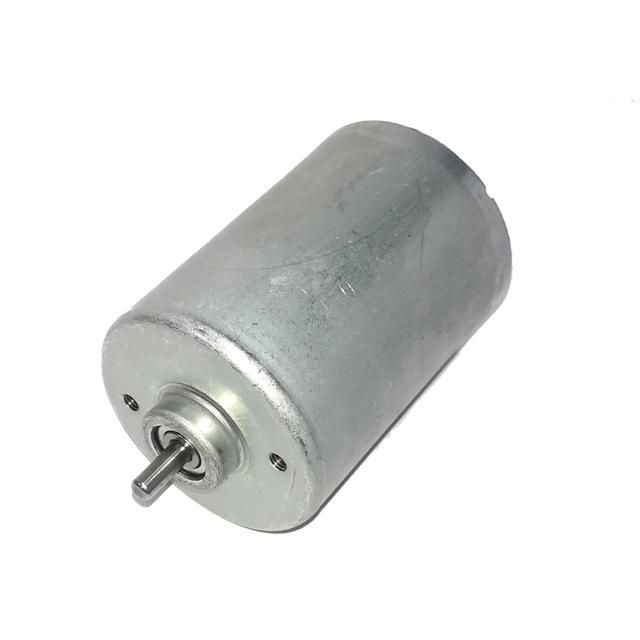

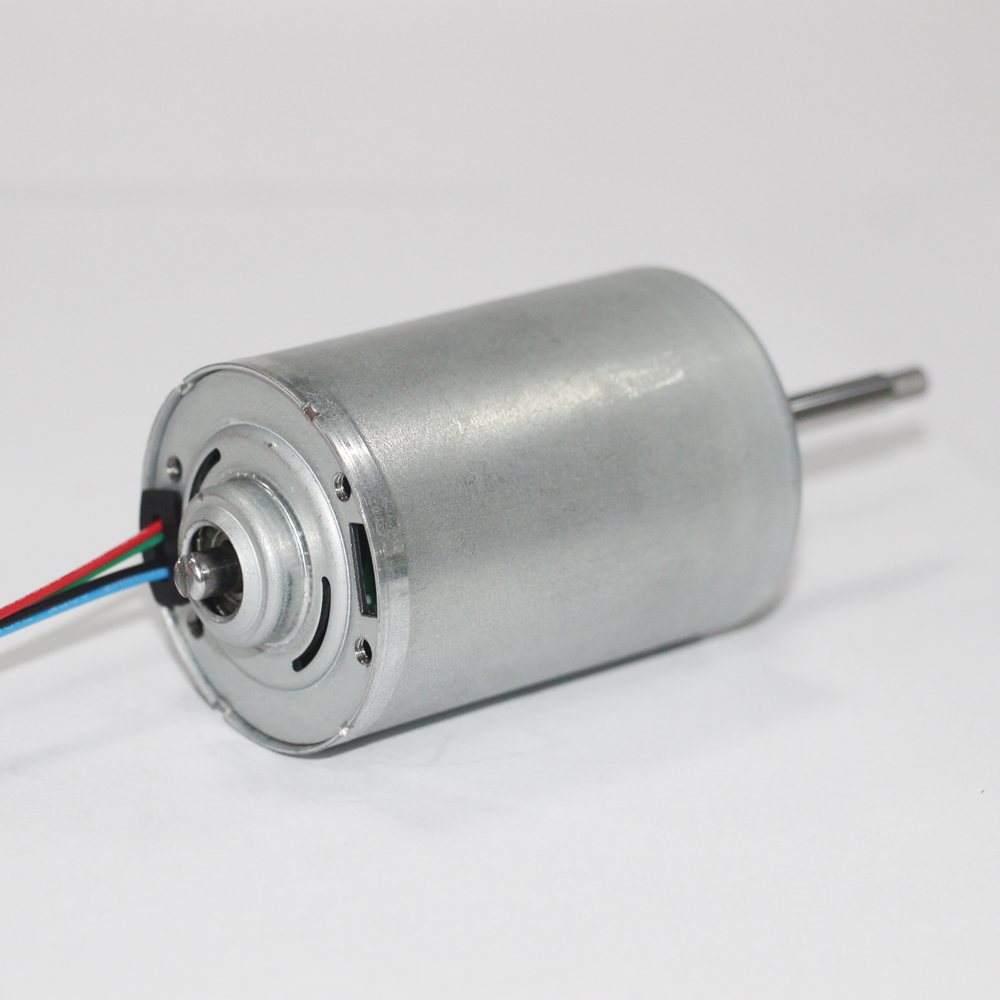

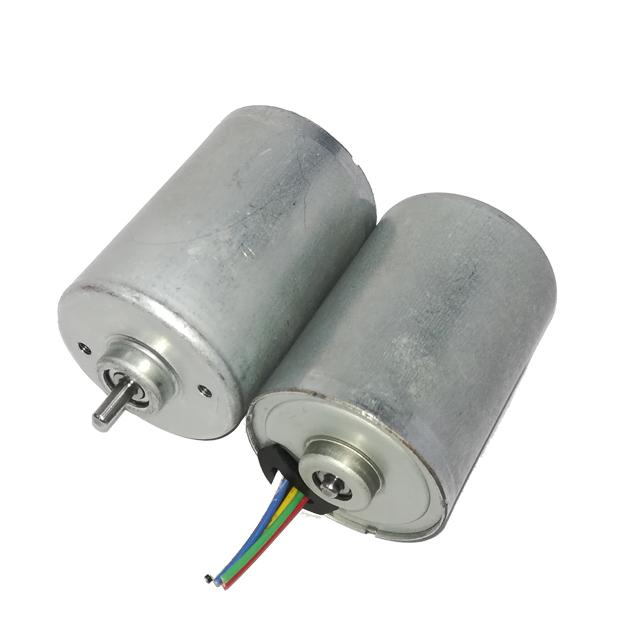

36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
1 / 5
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor
36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor

36mm Brushless Motor 36mm Bldc Motor 3630 3640 3650 3657 12v 24v Micro Waterproof Brushless Dc Motor

Send Inquiry

Product Description

📋 Product Description
Model Number DB3650 Usage Fan, Home Appliance
Certification ROHS Type Micro Motor
Torque 25mNm Construction Permanent Magnet
Commutation Brushless Protect Feature Drip-proof
Speed(RPM) 3500rpm no load Continuous Current(A) 0.18A no load
Output Power 1W~100W Voltage(V) 12V
Efficiency IE 1 Rated load speed 3000rpm
Starting torque 162mnm Starting current 2.8A
Shaft dia 4.0mm Application Air pump
📦 Packaging & Shipping
Packaging Detail 1. Export standard packing; 2. Factory standard packing; 3. Customized according to customer's request.
Delivery Detail 15 days for samples, 25-30 days for batch orders.
🛠️ Our Services & Technical Specifications

Professional DC Motor Solutions: OEM and Custom Product Design

Brushless DC Motor
Size: 36*50MM High-performance Brushless Motor
Performance: Long life, low noise, low EMI interference.
Control: CW & CCW Signal function, Stepless speed regulation.
Protection: Locked rotor protection, Micro Waterproof design.

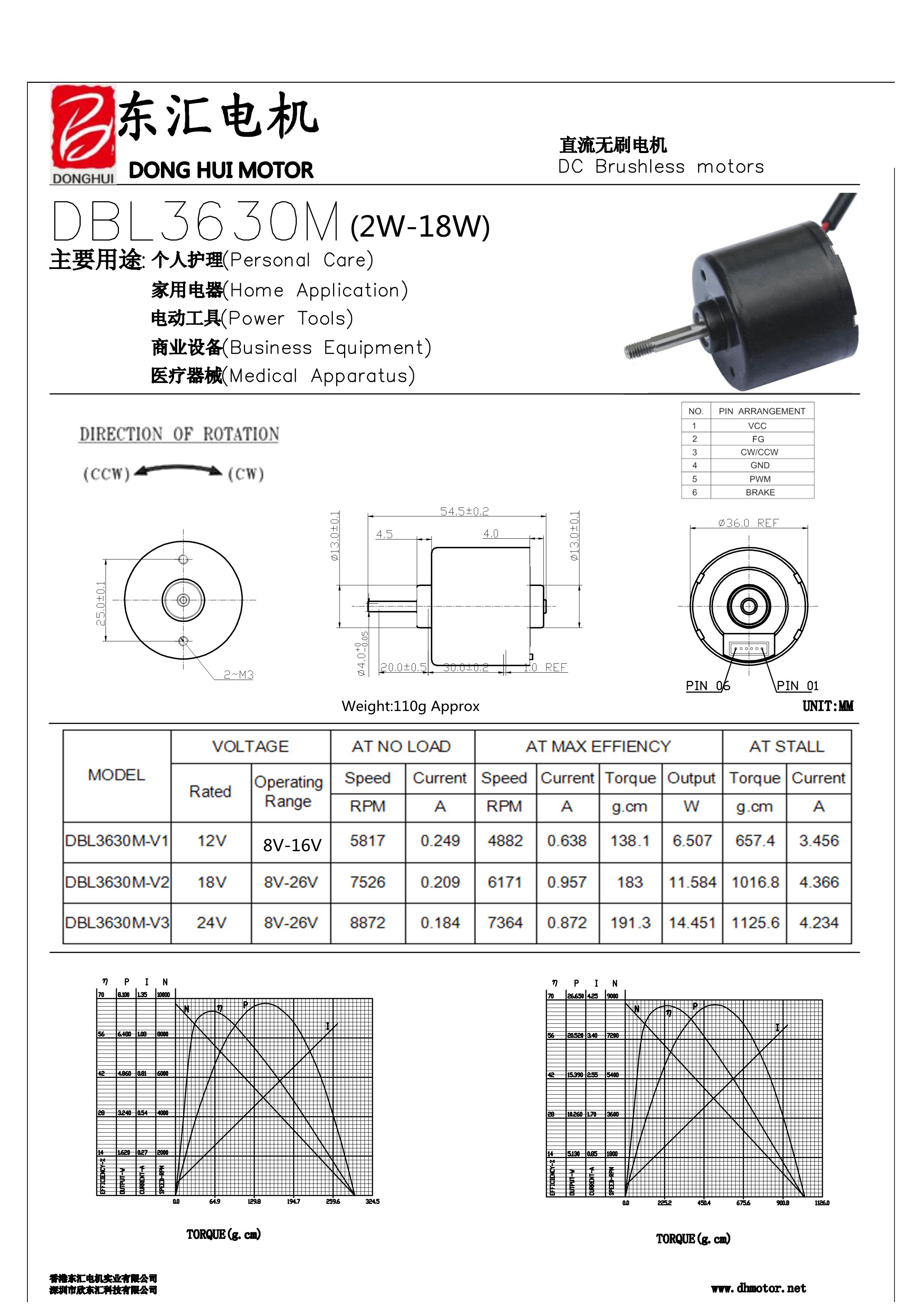

Technical Drawing 1

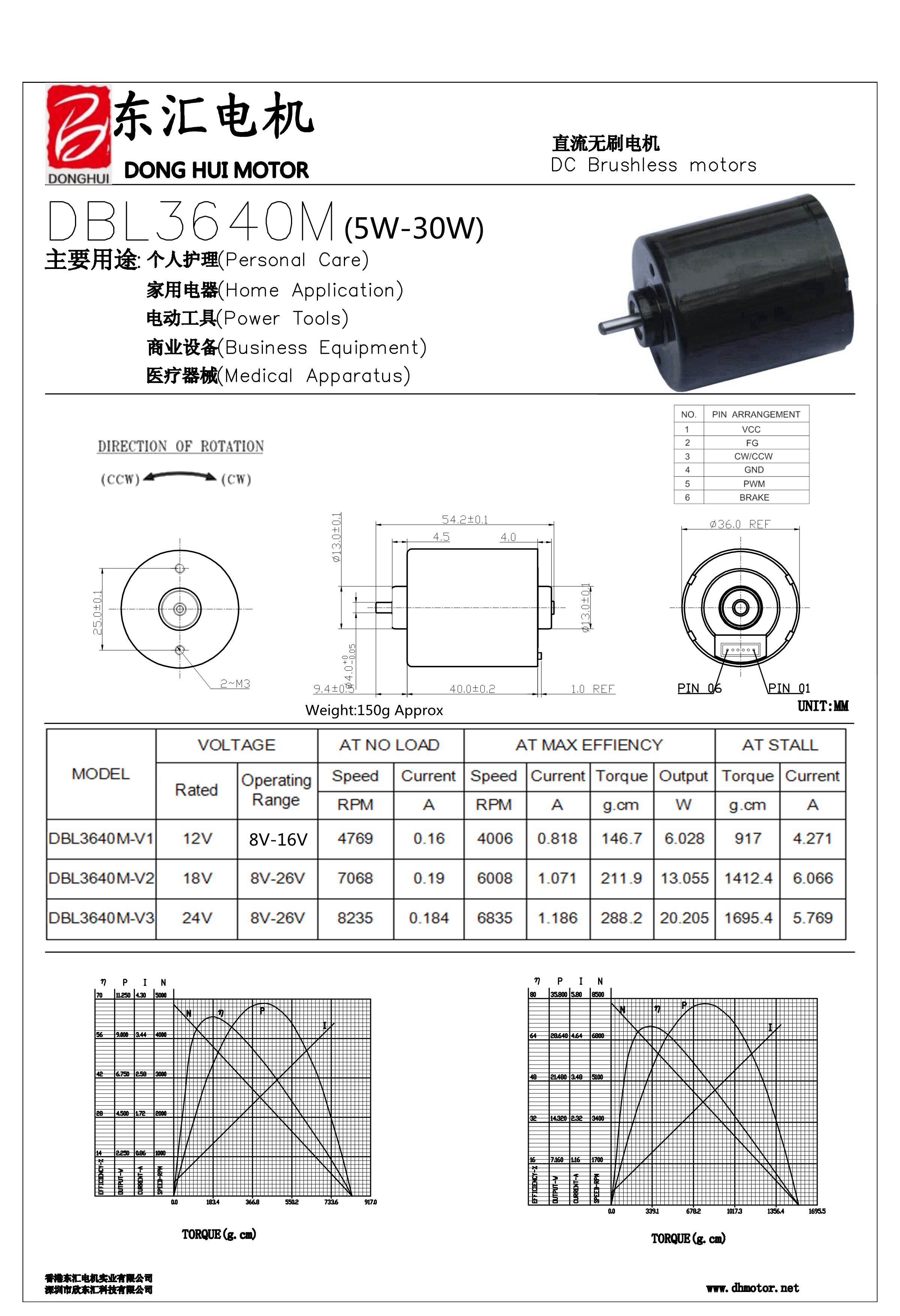

Technical Drawing 2
Motor Performance Chart
Motor Specifications
Motor Diagram
🏢 About Our Expertise
Production Line
Quality Control
Factory Overview

Since 2003, we have been committed to the development and production of micro motors, specializing in four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

Product Range: Diameter 4mm to 100mm.
Voltage Range: 1.5V - 42V DC; AC rectification available for 110V/220V.
Speed Range: 1 RPM up to 30,000 RPM.
Applications: Automotive, Medical, Power Tools, and Smart Home Appliances.
❓ Frequently Asked Questions
What are the main advantages of this brushless DC motor?
The 36mm brushless motor offers a longer lifespan, lower noise levels, and reduced EMI compared to traditional motors. It also features stepless speed regulation and CW/CCW rotation.
Is this motor suitable for outdoor or wet environments?
Yes, this model is designed with a drip-proof and waterproof construction, making it suitable for applications like air pumps and certain home appliances used in humid conditions.
Can the motor shaft be customized?
Yes, while the standard shaft diameter is 4.0mm, the shaft length and specific configurations can be customized to meet your specific application requirements.
What is the typical lead time for production?
We typically deliver samples within 15 days. For batch orders, the standard delivery time is between 25 to 30 days.
What industries commonly use your micro motors?
Our motors are widely used in consumer electronics, automotive components, medical equipment, office automation, and power tools.
Does the motor include built-in protection?
Yes, the motor includes locked rotor protection to prevent damage during mechanical failures and ensure operational safety.
