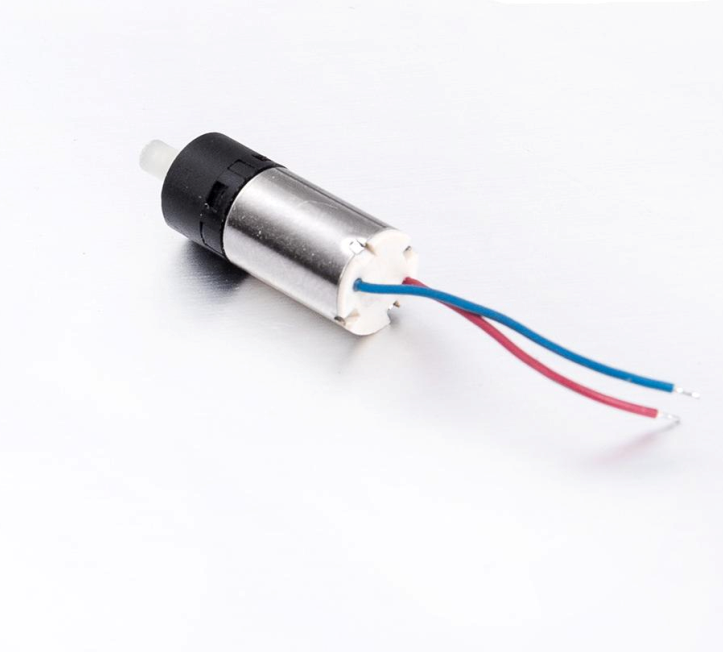

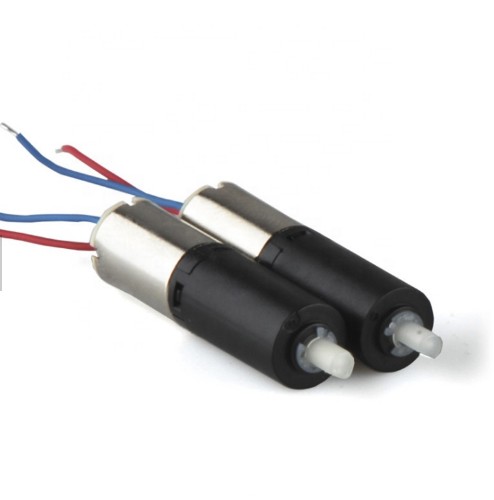

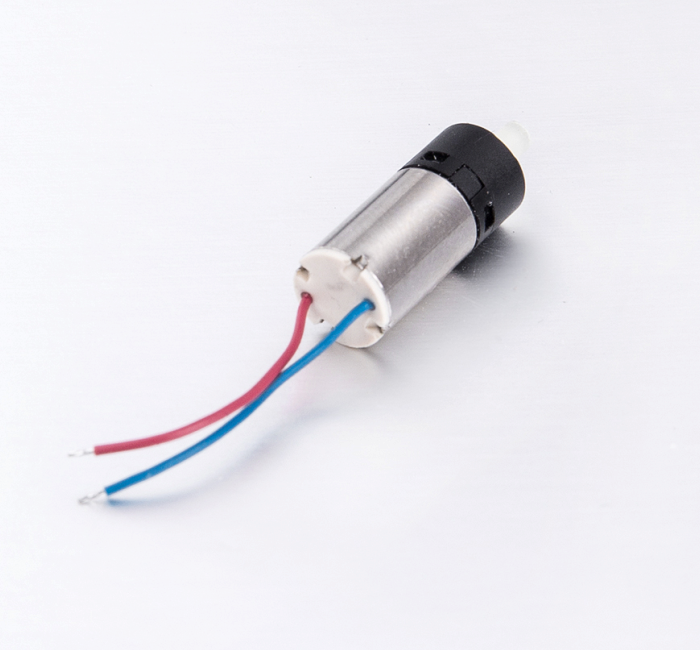

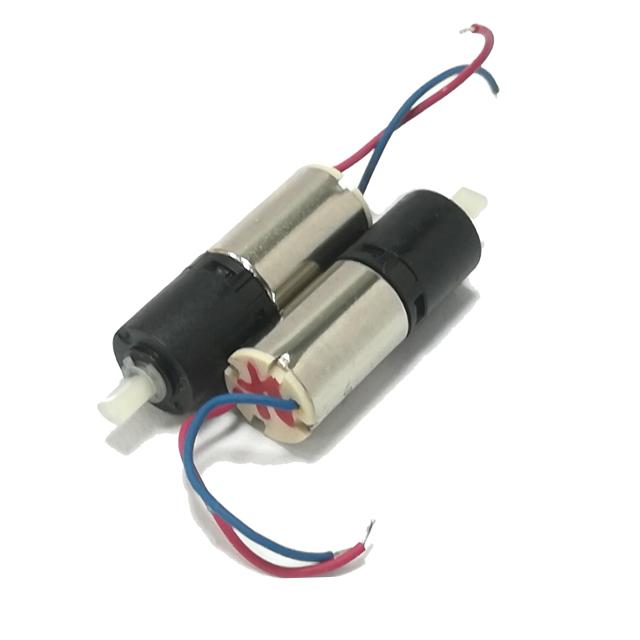

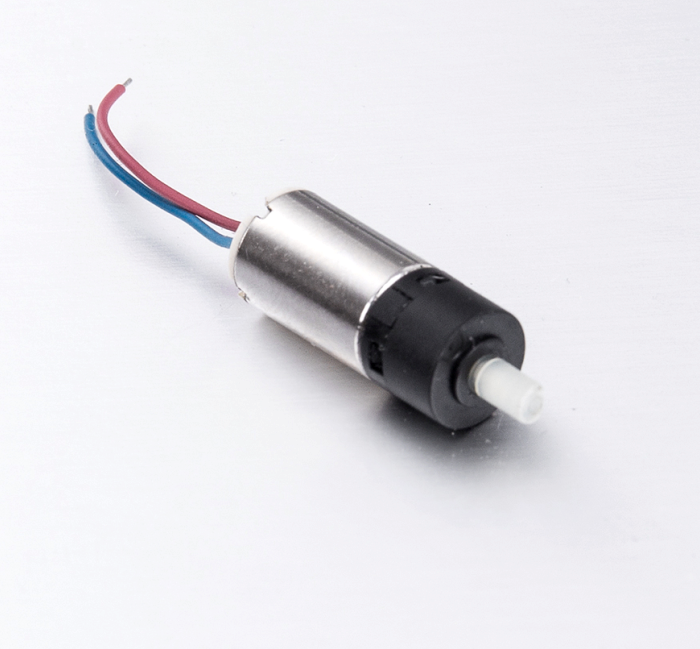

3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
1 / 5
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor with Planetary Gearbox

3v 6mm Micro DC Gear Motor with Planetary Gearbox

Send Inquiry

Product Description

Product Overview
Model Number DHPD006006-700 Type Gear Motor
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance Certification ROHS, ISO
Torque 200 G.cm Speed(RPM) 40 RPM
Voltage(V) 3V Continuous Current 0.12A
Output Power 0.2 W Efficiency IE 1
Construction Permanent Magnet Commutation Brush
Shaft Customized Weight 8g
Technical Specifications
6mm 3V Plastic Gear Motor with Planetary Gearbox
3v 6mm Micro DC Gear Motor
Planetary Gearbox Motor
  • Widely used in Toys, Remote control devices, Robots, Cameras, and Robotic hands.
  • Low noise, low current, no vibration, and long service life.
  • Reduction Ratios available: 26:1, 136:1, 700:1.
  • Compact size: 6.0mm diameter; Motor length approximately 9.3 mm.
  • Operating Environment: -10~+60°C; 15~90%RH.

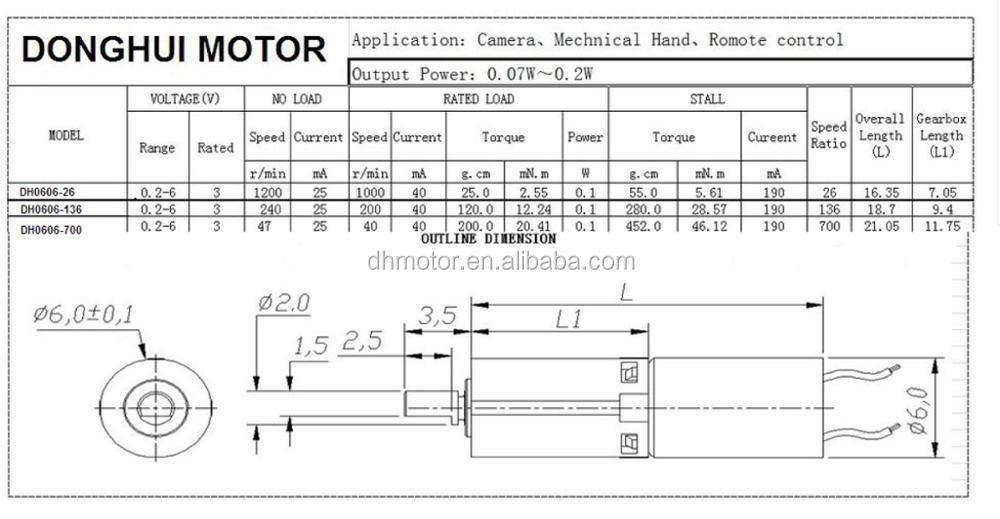

Motor Characteristics

Note: The technical data above is for reference. Specifications such as voltage, speed, torque, and shaft can be customized.

Product Gallery

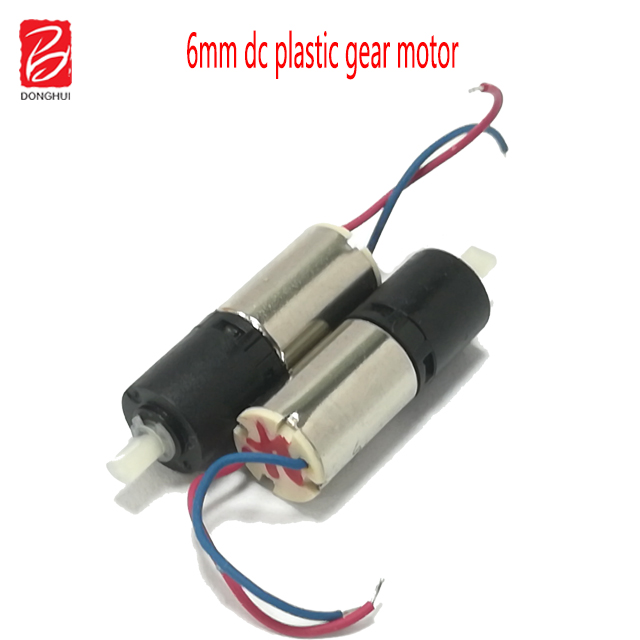

Plastic planetary gear motor view 1

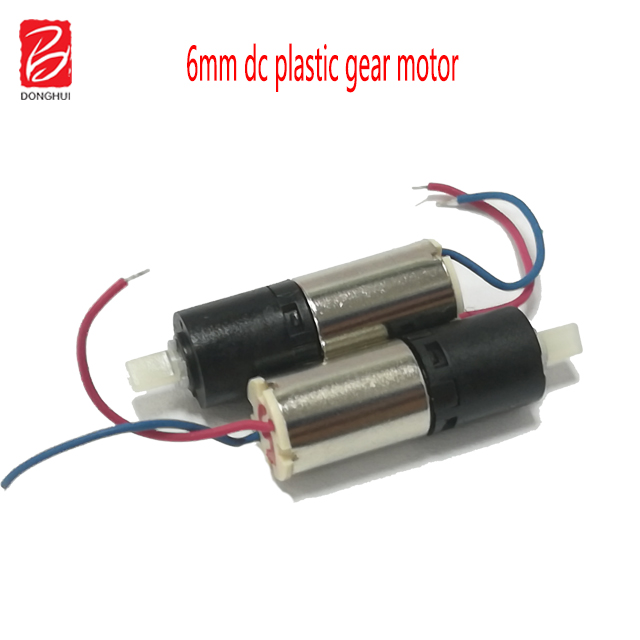

Plastic planetary gear motor view 2
Packaging & Shipping
Packaging Details 1000PCS/CTN, standard export packing
Delivery Detail Within 35 days
Manufacturing Facilities
Factory Production 1 Factory Production 2
Frequently Asked Questions
What are your main products?
We provide Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless DC motors, Vibration motors, and Planetary Gear motors.
What is the main usage of the micro DC gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems (vending machines, payment equipments), and automation industries.
Do you accept customization?
Yes, we have a strong design team to handle customization requirements based on your technical needs.
What data is required to place an order?
Please provide the required voltage, speed, torque, and overall dimensions for your application.
What if I don't know the specific technical data?
Please contact our sales team. We will guide you through the selection process and answer your questions patiently.
What is the standard lead time for delivery?
Standard delivery is typically within 35 days, depending on the order specifications and quantity.
