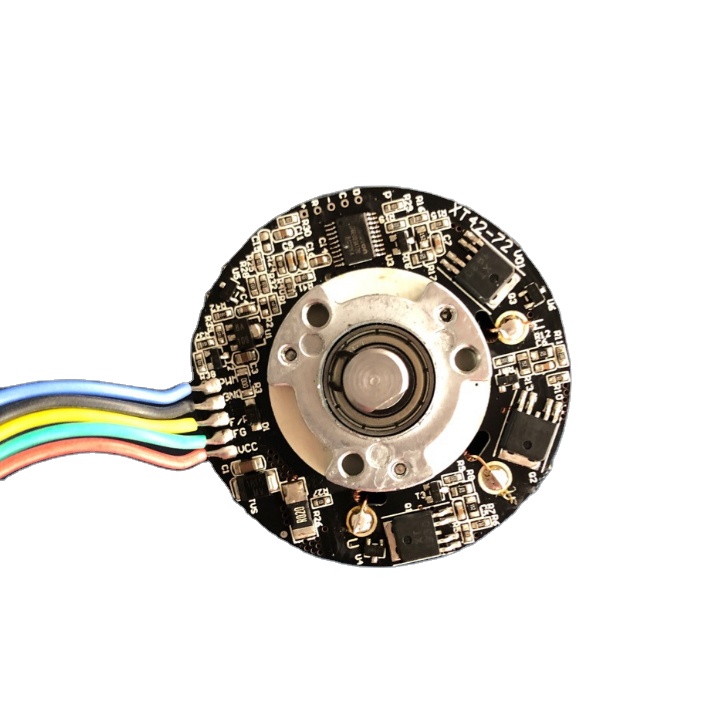

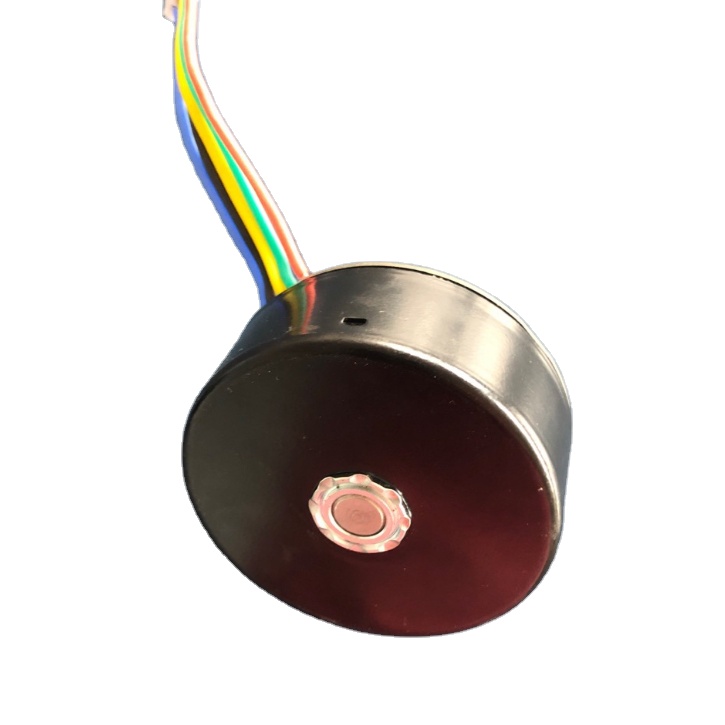

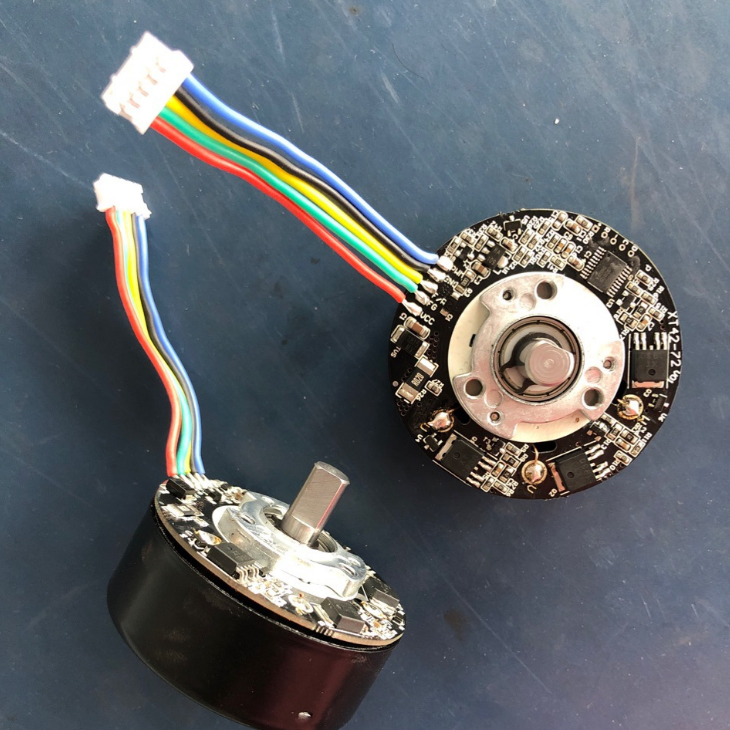

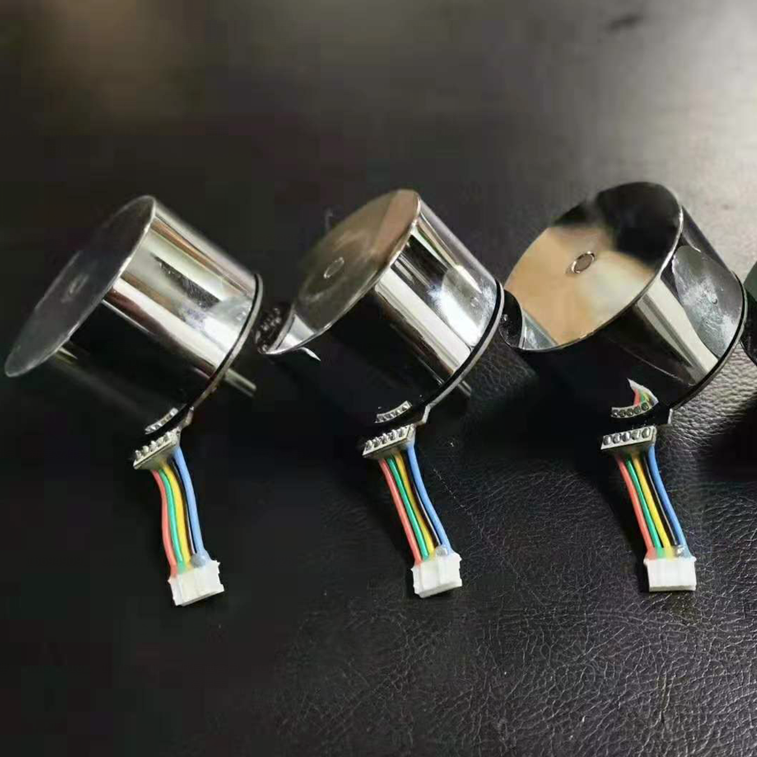

12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
1 / 4
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager
12V 18V 24V Outer Rotor Brushless Dc Motor for Massager

12V 18V 24V Outer Rotor Brushless Dc Motor for Massager

Send Inquiry

Product Description

12V 18V 24V Outer Rotor Brushless DC Motor
⚙️ Product Description
Size Diameter: 40mm, 45mm, 48mm, 50mm, 55mm
Voltage 12V / 18V / 24V
Unload Speed 2000-4000rpm
Rated Torque ≤0.1NM
Max Torque ≤1.0NM
Wattage 5-80W
Shaft Diameter 6mm
Application Muscle Massager, Massager Gun, Fascia Massager, Massager Hammer
✔ CW & CCW
✔ Signal Function Available
✔ Locked Rotor Protection
✔ Stepless Speed Regulation
✔ Low Noise & Low EMI
Notice: Data in the typical specification sheet are for reference. Voltage, rated torque, speed, current, power, gear box ratio & dimension, shaft extension feature & dimension can be changed to meet specific requirements.

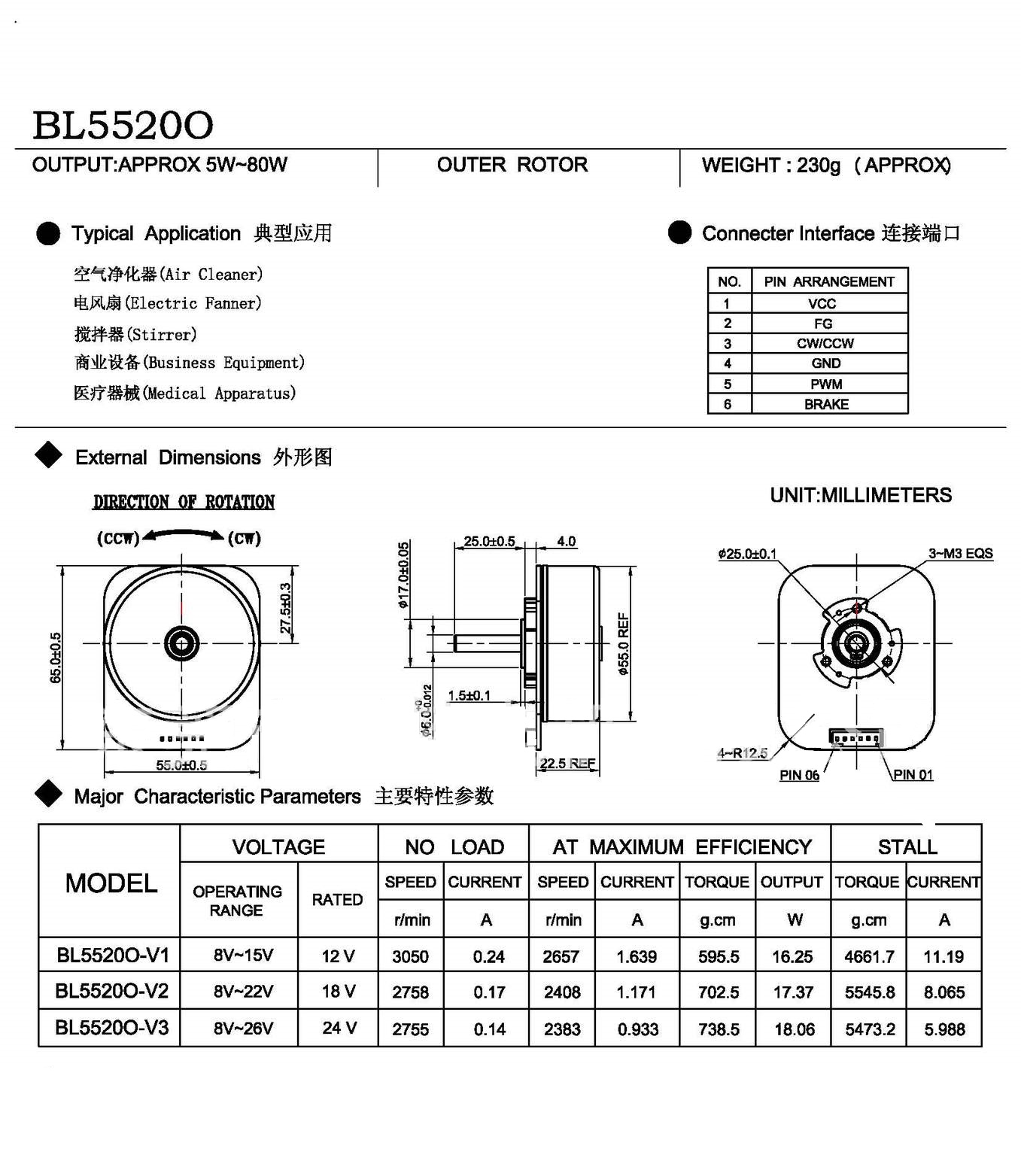

Brushless DC Motor Details

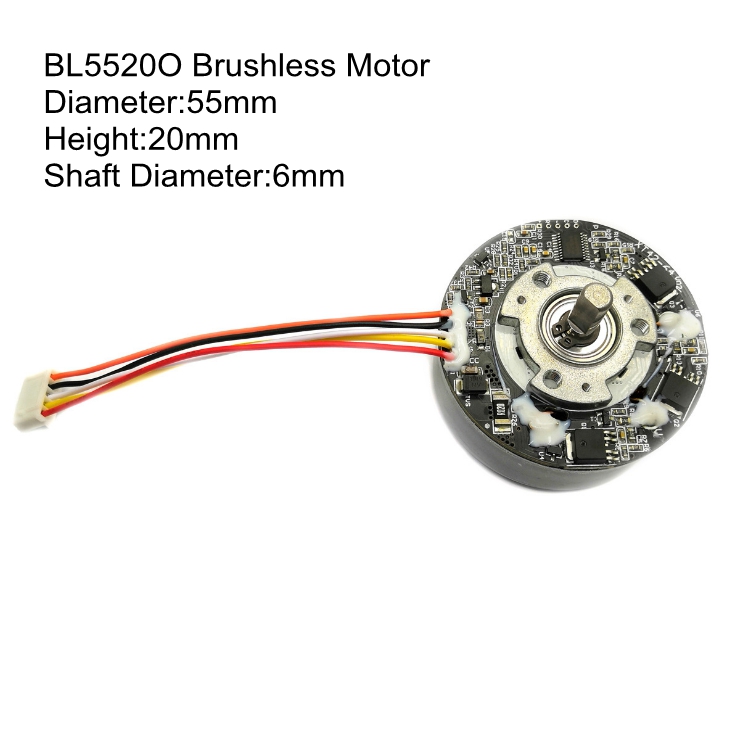

12V 24V Motor View

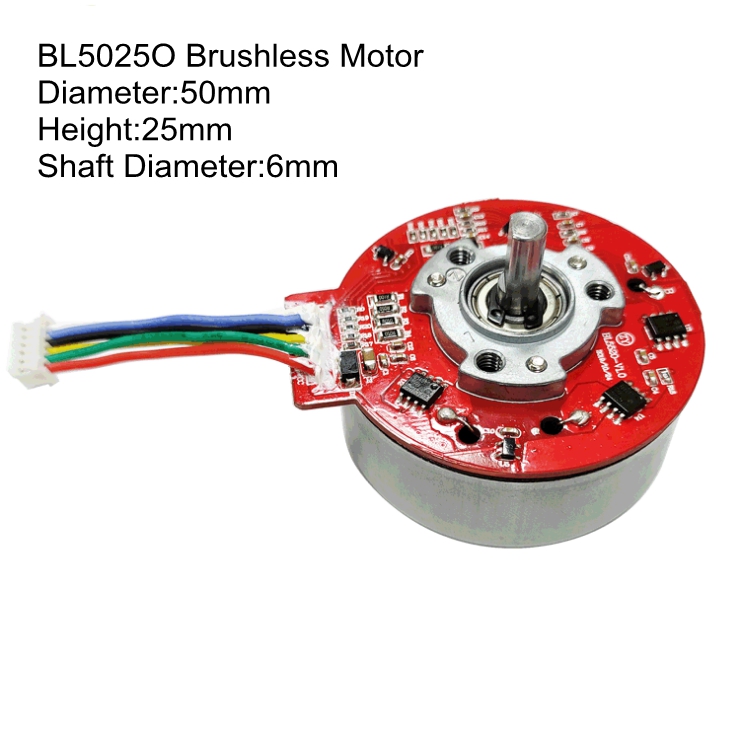

Outer Rotor Motor Design

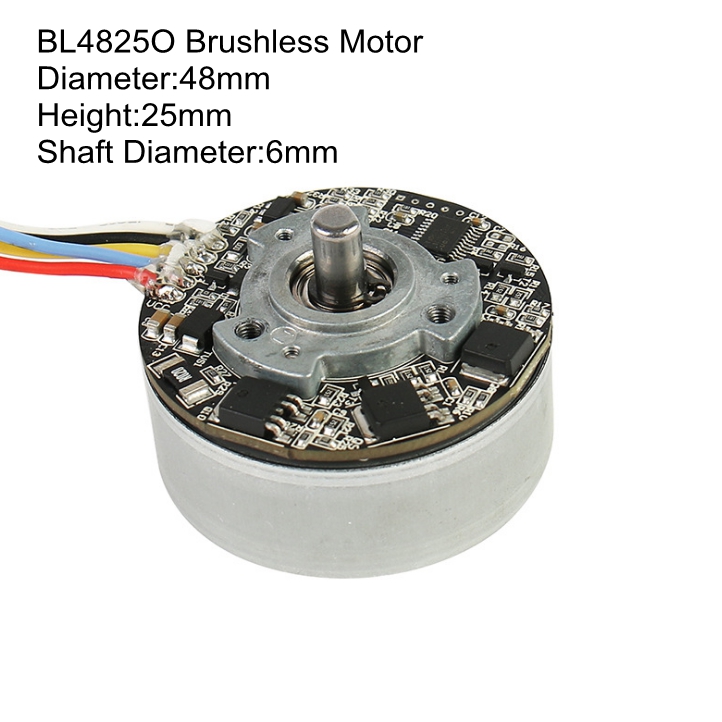

Massager Gun Motor

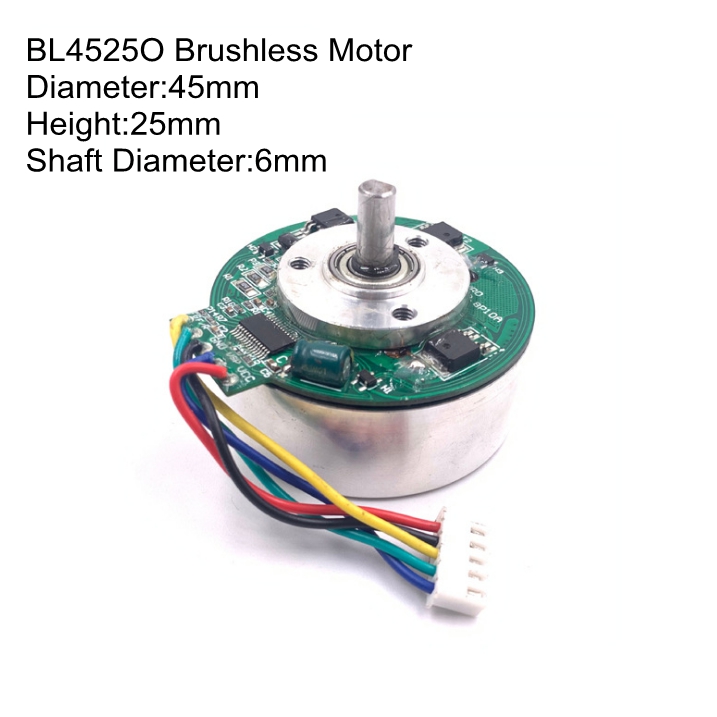

DC Motor Components

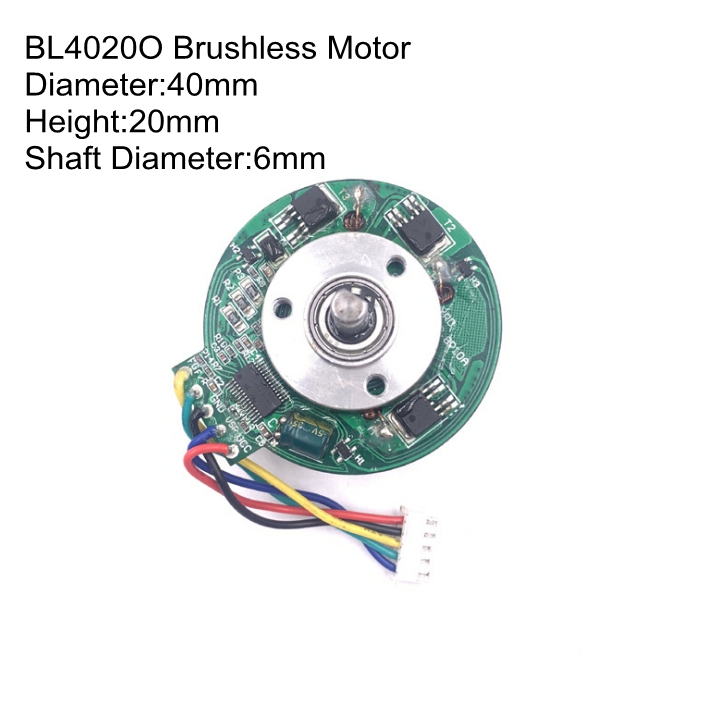

Brushless Motor Assembly
📊 Production Capacity

Professional micro motor manufacturer for 10 years.

  • Brush Motor Φ6mm—Φ60mm
  • Brushless Motor Φ12mm-Φ42mm
  • Coreless Brush/Brushless Motor Φ4mm—Φ45mm
  • Gear/Planetary Gear Motor Φ4mm—Φ60mm
  • Stepper Motor Φ6mm—Φ24mm
  • Vibration Motor Φ4mm—Φ45mm
  • Motor Voltage DC 1.5V-220V, AC 110V-240V
  • Speed Range 0.1-80,000 RPM
  • Torque Range 0.01-500 Kg.cm

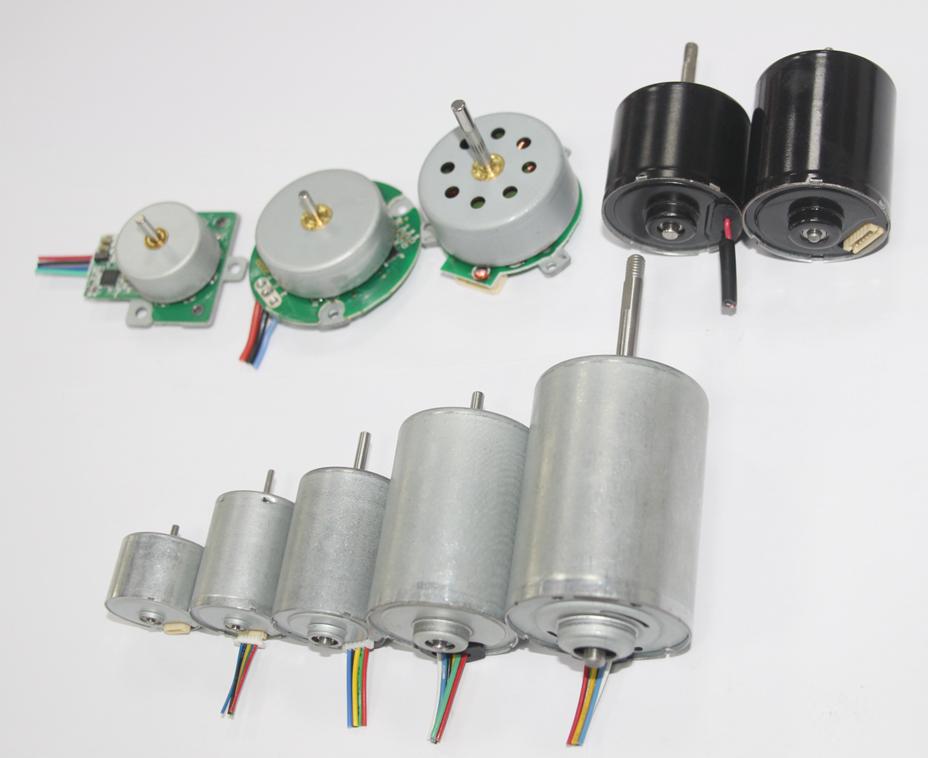

Motor Range

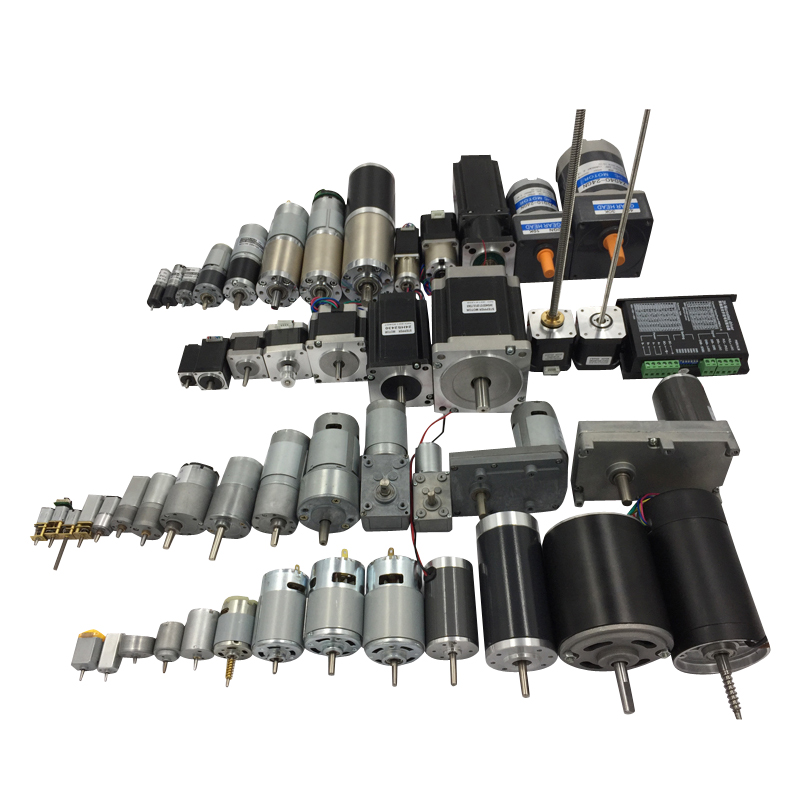

Manufacturing Facility
📦 Packaging & Shipping
Professional Packaging
Shipping Logistics
🔍 How To Selection Guide
1. Check The Motor Size
2. Check The Motor Voltage
3. Check The Motor Speed
4. Check The Motor Torque/Wattage
5. Custom Parameters Available
6. Application-Based Consultation
Quality Control

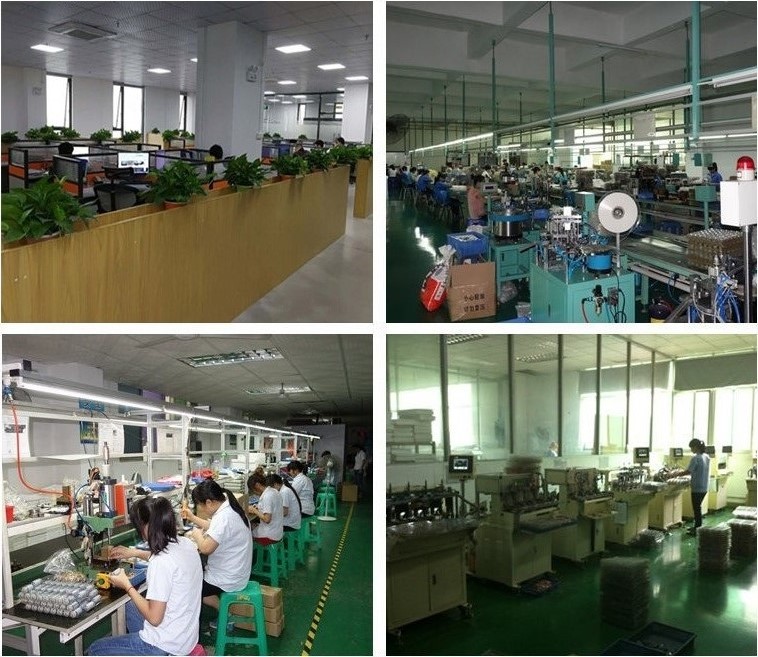

Testing Laboratory
FAQ
Can the motor specifications be customized?
Yes, voltage, rated torque, speed, power, shaft dimensions, and gear box ratios can all be tailored to meet your specific application requirements.
What are the main advantages of this outer rotor brushless motor?
It features low noise, low EMI, locked rotor protection, stepless speed regulation, and a long service life compared to traditional brushed motors.
What is the typical lead time for an order?
Lead times vary based on customization and quantity. Typically, samples take 7-15 days, while mass production takes 25-35 days.
Are these motors suitable for battery-operated devices?
Absolutely. With 12V, 18V, and 24V options and high efficiency, they are ideal for portable devices like massager guns and fascia hammers.
Do you provide technical support for motor selection?
Yes, if you are unsure of the parameters, you can provide details about your application, and our engineers will help determine the best motor for your needs.
What protection features are included?
The motors include locked rotor protection and can be configured with various electronic protections depending on the integrated driver requirements.
