China Supplier Cheap Price Stock 3v 145rpm 12mm Diameter Dc Micro Gear Motor Witn N20 DGA12-N20

1 / 5

China Supplier Cheap Price Stock 3v 145rpm 12mm Diameter Dc Micro Gear Motor Witn N20 DGA12-N20

Send Inquiry

Product Description

Permanent Magnet GM12 DC Gear Motor 145rpm 3V 800g.cm

10mm shaft D2.5mm N20 Door Lock Robot Micro Geared Motor

★

Promotion Only: Stock offer with limited quantity available.

⚙

Fixed Specifications: Motor voltage, speed, torque, and shaft specifications are fixed for this stock.

📦

MOQ: Minimum order quantity is 5 pcs. Bulk order pricing is negotiable.

🛠

Customization: If standard data does not meet your needs, contact us for custom configurations at normal pricing.

Technical Specifications

Item	Micro Gear Motor
Size	D10mm * 12mm * L24mm
Rated Voltage	DC 3.0 V
Working Voltage Range	DC 2.0 V ~ DC 4.0 V
Unload Speed	145 rpm ± 10%
Unload Current	60mA
Rated Speed	112 rpm ± 10%
Rated Torque	200g.cm
Rated Current	≤320mA
Max Current	≤800mA
Max Torque	≤3500g.cm
Wattage	0.29 watt
Application	Robot, Lock, Toys, Electric Power Tools

Product Presentation

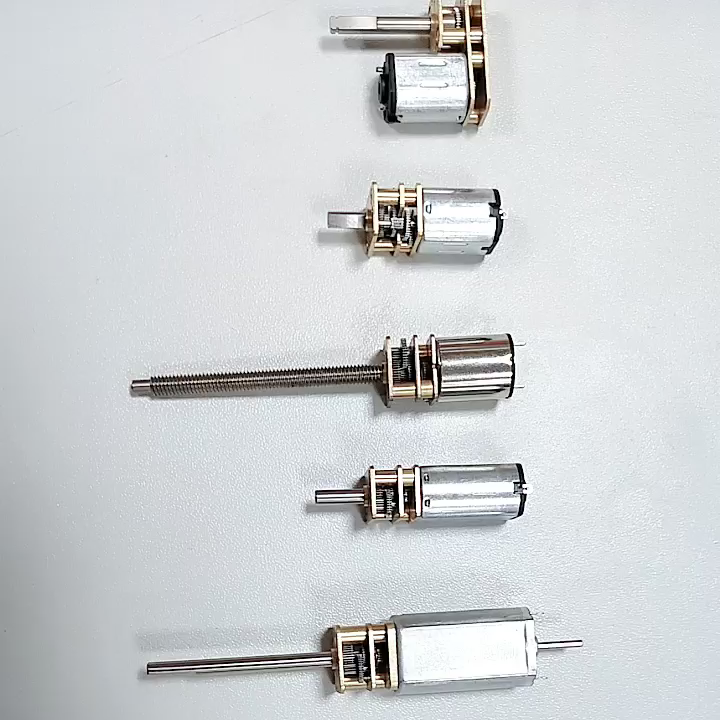

Available Variations & Related Products

With M3 / M4 Screw Shaft
Length: 10mm - 45mm

For 3D Pen Printer
Customized Wheel Size

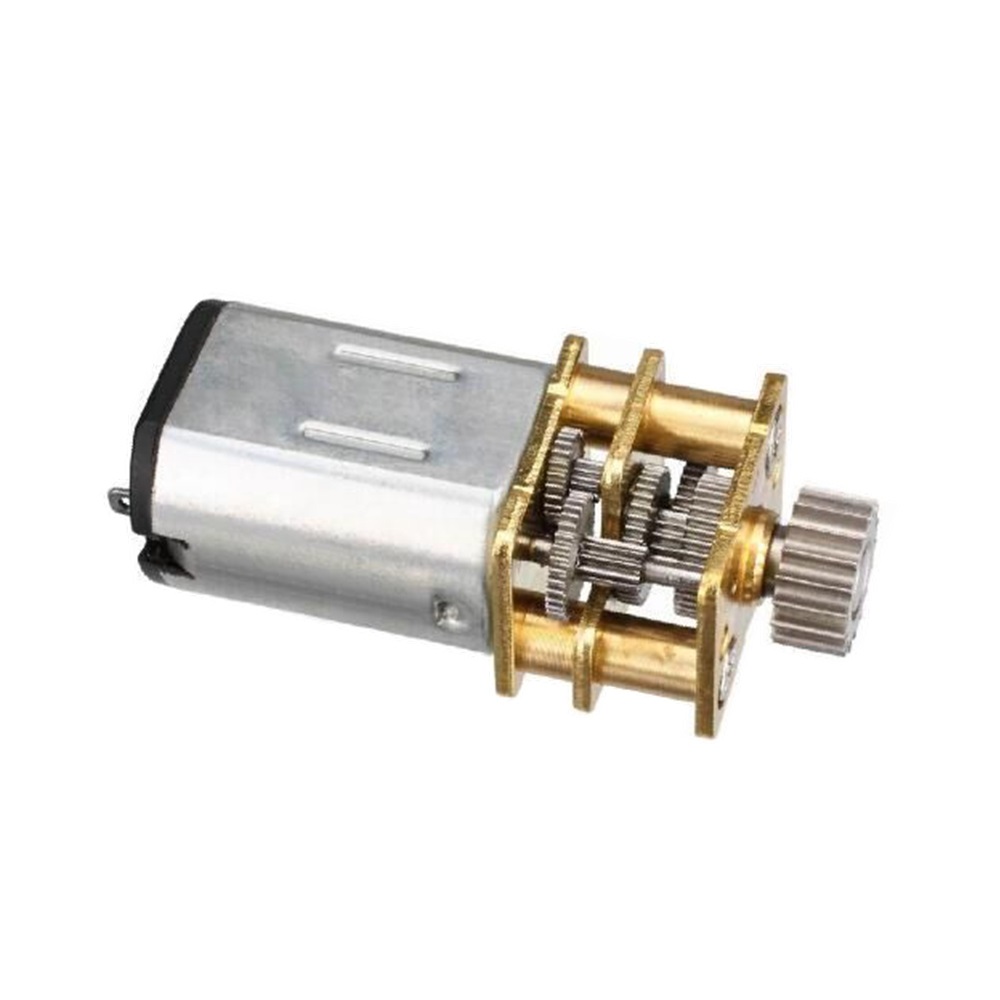

Big Metal Gear Wheel for Door Lock

With Encoder for Precise Instruments

Right Angle for Robot and Lock

Back Output Shaft U Type for Toys

Packing & Professional Capability

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Manufacturing Expertise

✔ Brush DC Motor: Φ6mm—Φ60mm
✔ Brushless DC Motor: Φ12mm—Φ42mm
✔ Coreless DC Motor: Φ4mm—Φ45mm
✔ Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm
✔ Voltage Range: DC 1.5V - 220V
✔ Speed Range: 0.1 - 80,000 RPM
✔ Gearbox Ratio: 1:4 to 1:5000

Frequently Asked Questions

What are your main motor products?

We offer a wide range of products including Diameter 4~60 mm DC Micro Motors, Gear Motors, Auto DC motors, Brush and Brushless DC motors, Vibration motors, and Spur Gear motors.

What are the primary applications for these micro gear motors?

Our motors are widely used in Home Appliances, Office Equipment, Health-care devices, Sanitation industries, Banking systems (vending machines, payment equipment), and Electronic locks or automation tools.

Do you support customized motor specifications?

Yes. We have a strong technical design team. If the stock specifications do not meet your requirements, we can customize the data according to your specific needs.

What information is needed to place an order?

Please provide the required Voltage, Speed, Torque, and the overall Dimension requirements for your application.

What if I am unsure about the specific motor data needed?

Please contact our sales team and describe your application requirements; we will recommend the best fit model for your project.

Is there a minimum order quantity (MOQ)?

For promotional stock items, the MOQ is 5 pieces. For custom orders or large volumes, pricing can be further discussed.

Please feel free to contact us regarding any motor questions!

Product Detail

China Supplier Cheap Price Stock 3v 145rpm 12mm Diameter Dc Micro Gear Motor Witn N20 DGA12-N20

Product Description

Permanent Magnet GM12 DC Gear Motor 145rpm 3V 800g.cm

Manufacturing Expertise
