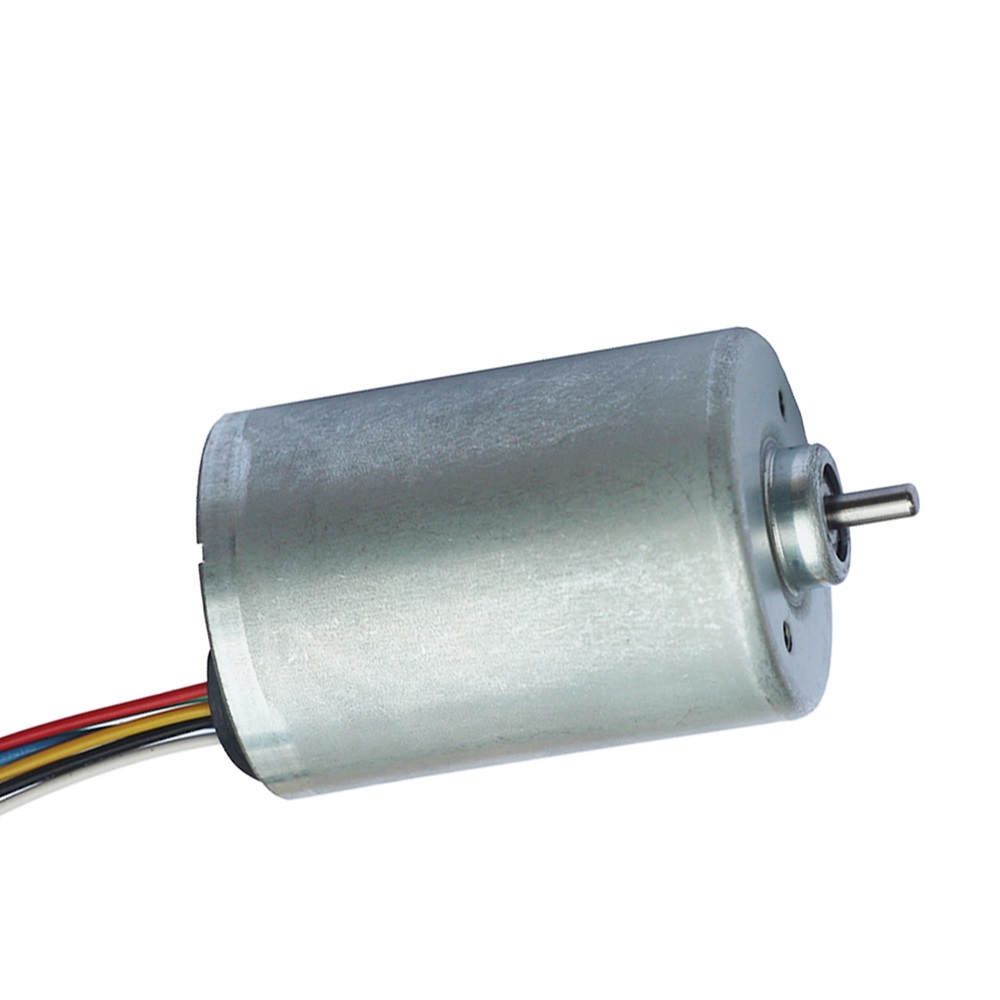

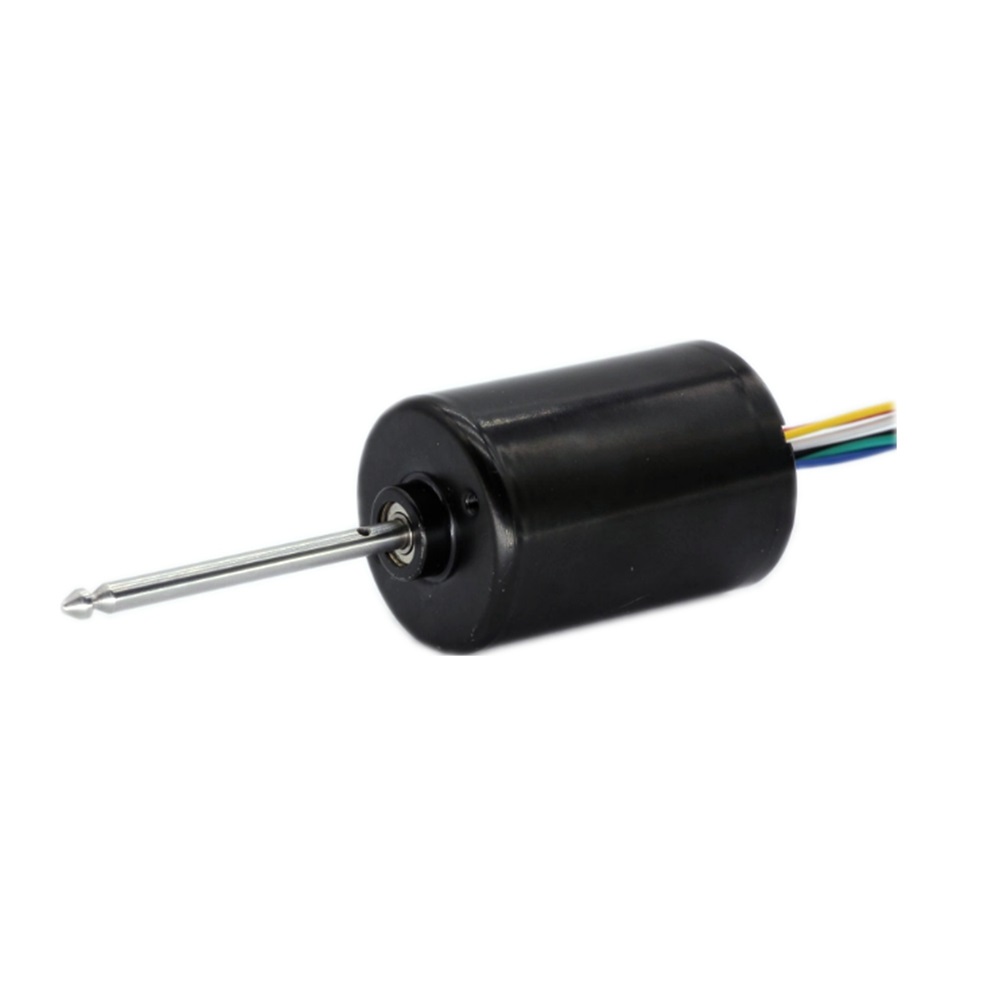

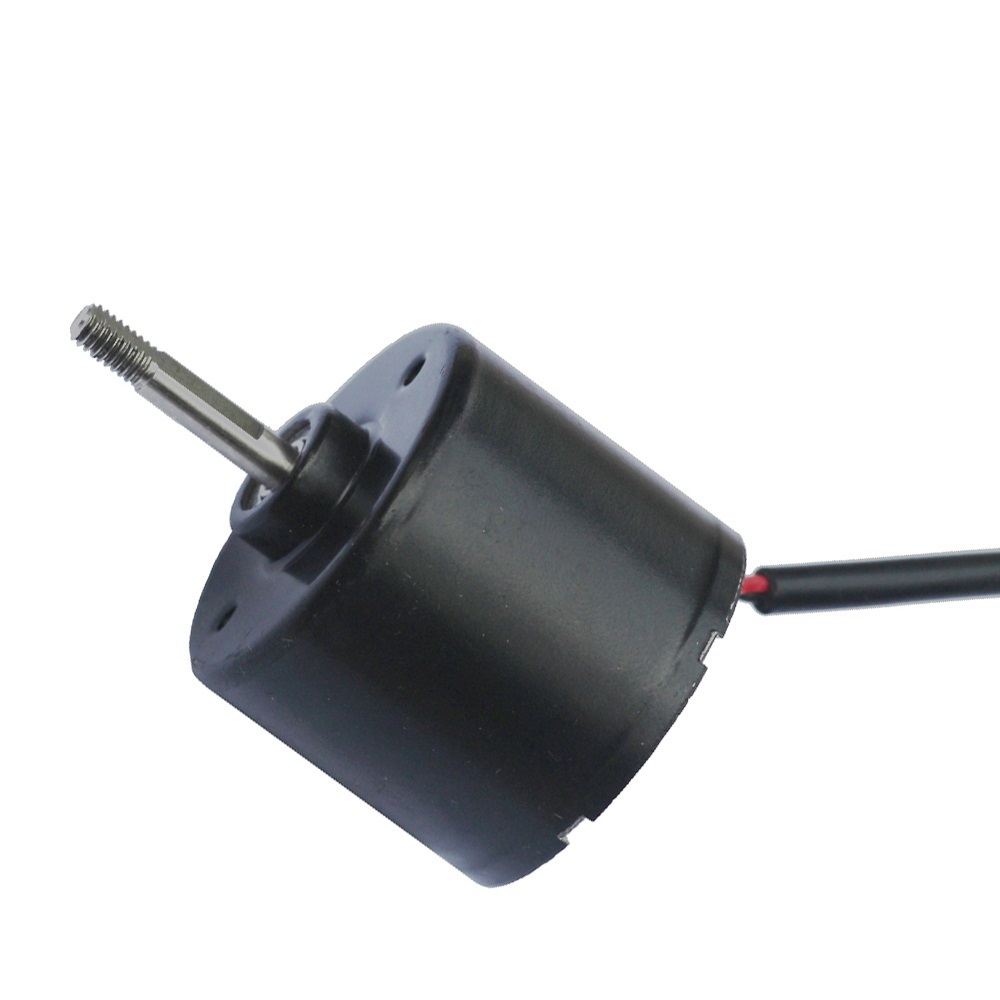

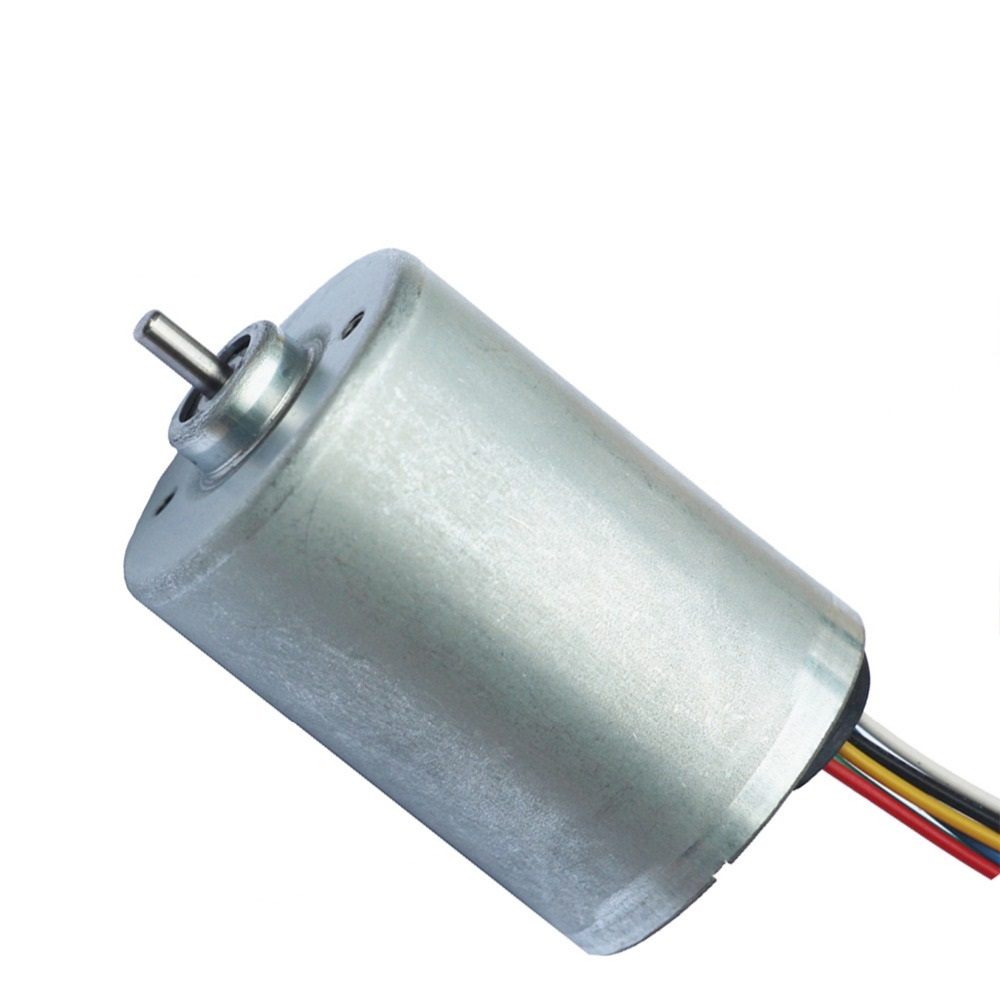

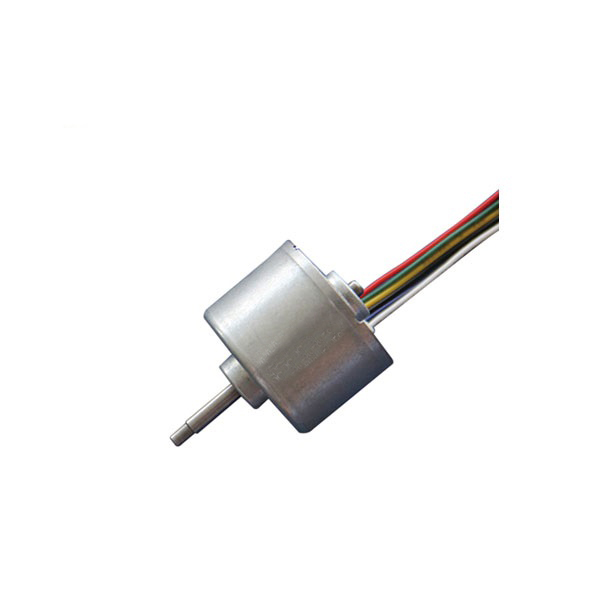

| Item | 36mm brushless motor |
| Size | Diameter 36mm, Length 26mm, 30mm, 40mm, 50mm, 57mm |
| Voltage | 8V~26V |
| Unload Speed | 2000-11000rpm |
| Output torque | ≤3000g.cm |
| Wattage | ≤50watt |
| Driver | Built-in design or Customized |
| Bearing | Ball bearing or normal bearing |
| Lifetime | 3000hours~20000hours |
| Function | Brake, FG, CW/CCW, PWM |
| Protection | Over current protection, Over heating protection |
| Feature | Long Lifetime, Low Noise, High Efficiency, Stable and Reliable |
| Application | Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill |
The following motor voltage, speed, torque, shaft length, and shaft type can be customized to meet your specific requirements.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Professional micro motor manufacturer for 10 years. Our current product capacity includes:
- Brush DC Motor: Φ6mm—Φ60mm
- Brushless DC Motor: Φ12mm-Φ42mm Coreless
- Brush/Brushless DC Motor: Φ4mm—Φ45mm
- Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm
- Stepper DC Motor: Φ6mm—Φ24mm
- Vibration DC Motor: Φ4mm—Φ45mm
- Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
- Speed Range: 0.1-80,000RPM
- Output Torque: 0.01-500Kg.cm
- Shaft Length: 0.1-150mm
- Gearbox Ratio: 1:4---1:5000
What are your main products?
We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush DC motors, Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of your micro DC gear motors?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industries, High-class toys, Banking Systems, automation industries, and electric door locks.
Do you accept customization?
Yes, we have a strong design team. We can customize specifications to provide technical solutions for your specific needs.
What data do I need to provide for an order?
Please provide the required voltage, speed, torque, and overall dimensions for the motor you need.
What if I don't know the specific motor data?
Please contact our sales team and describe your application requirements; we will recommend the best-fitting model for you.
What is the lifetime of your brushless motors?
Depending on the configuration and usage, the lifetime ranges from 3,000 hours to 20,000 hours.
Please feel free to contact us for a quotation and recommendation!
