Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
1 / 4
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30
Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30

Dc Micro Motor High Speed 1.2v 3v 6v 7v 9v Dc Motor FN20 FN30

Send Inquiry

Product Description

Product Description
1.2v 3v 6v 7v 9v DC Motor FN20 FN30
  • Rated Voltage: DC 1.2-9V
  • Speed No load: 3000-15000RPM
  • Torque: 2.5-20g.cm Torque At Max Efficiency
  • Motor Type: Precious Metal-brush motors
  • Dimensions: Diameter 12 mm, length 20.0mm, shaft 1.0mm
  • Weight: Approx 10g
  • Output power: 0.3~1.5W
  • Application: Robot, Home Appliance, Door Lock etc.
  • Customization: Free performance adjustment (voltage, speed, torque, etc.)

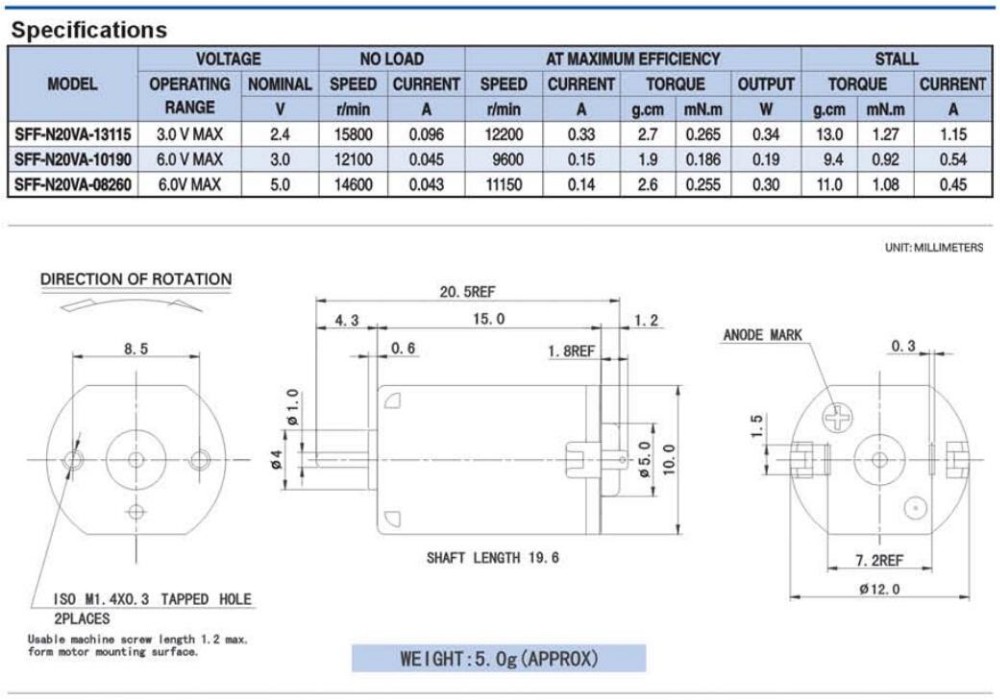

Specifications: FF-N20
Note: We can adjust the performance of voltage, torque, speed, current, power, shaft shape and length according to your need. Our engineer will send you the drawing and specs once you choose us.

Model No: FF-N20

DC Motor FF-N20

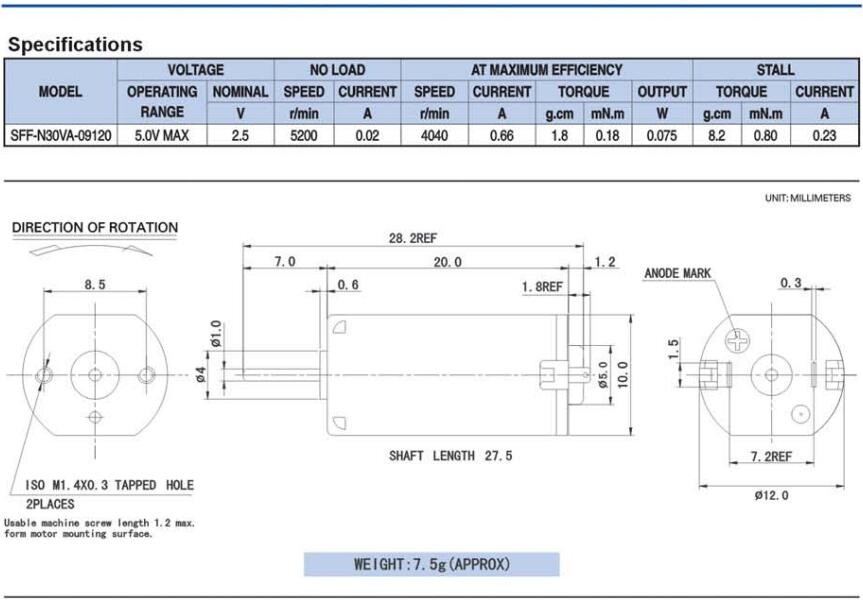

Specifications: FF-N30
Note: Performance of voltage, torque, speed, current, power, shaft shape and length can be customized based on requirements.

Model No: FF-N30

DC Motor FF-N30
Related Products
Related Product 1
Related Product 2
Production & Quality Control
Factory Overview 1
Factory Overview 2

Engaged in the design, development, production, sale and service of precision DC motors and gear motors. Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.

OUR ADVANTAGES:
  • 13 years experience to produce DC motor and DC gear motor.
  • Military enterprise as quality assurance, gears from military enterprise sources.
  • Strong Production and R & D Ability.
  • 10 Years Export Experience in Germany, Japan and USA.
Frequently Asked Questions
What are your main products?
We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush DC motors, Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of your micro DC gear motors?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, Banking Systems, automation industry, payment equipment, and electric door locks.
Do you accept customization for motor performance?
Yes, we have a strong design team and can customize the voltage, speed, torque, and overall dimensions to meet your specific technical requirements.
What information is needed to place an order?
Please provide the required voltage, speed, torque, and overall dimension requirements for your application.
Can you adjust the shaft shape and length?
Absolutely. We can customize the shaft shape and length according to your needs. Our engineers will provide detailed drawings and specifications during the selection process.
What should I do if I am unsure of the required motor specifications?
Please reach out to our team. We will patiently answer your questions and help you identify the best motor solution for your project.
