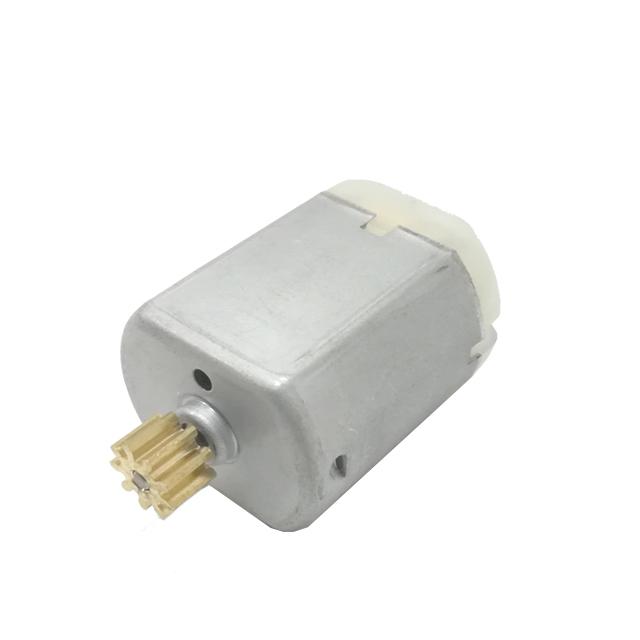

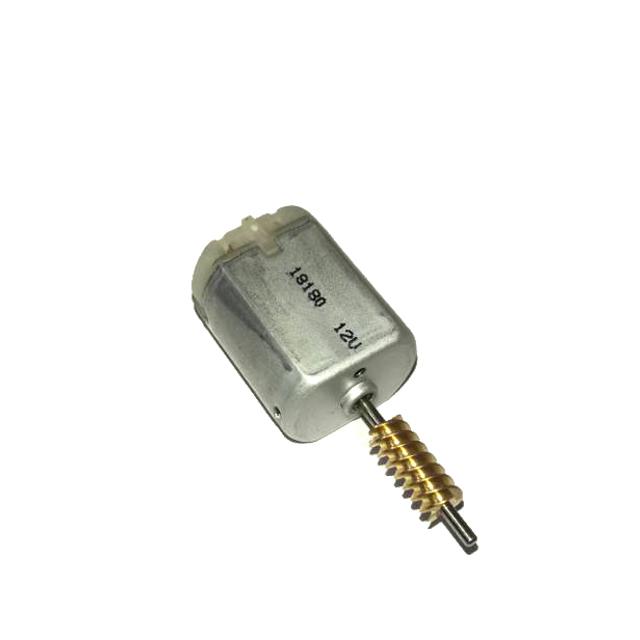

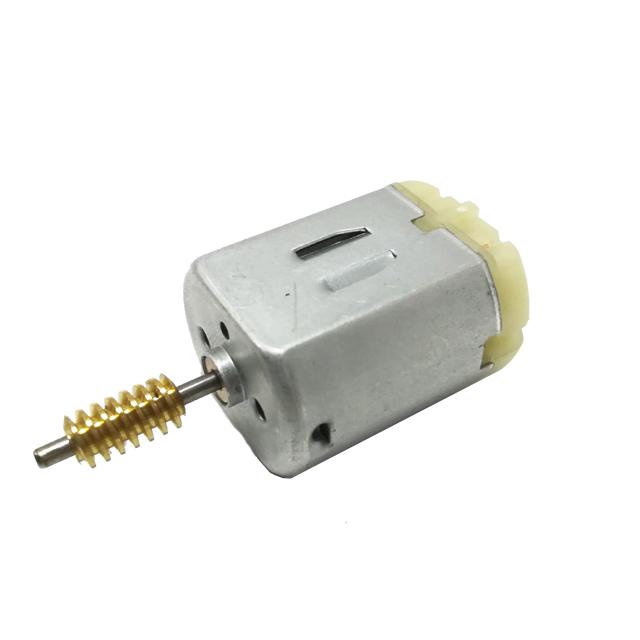

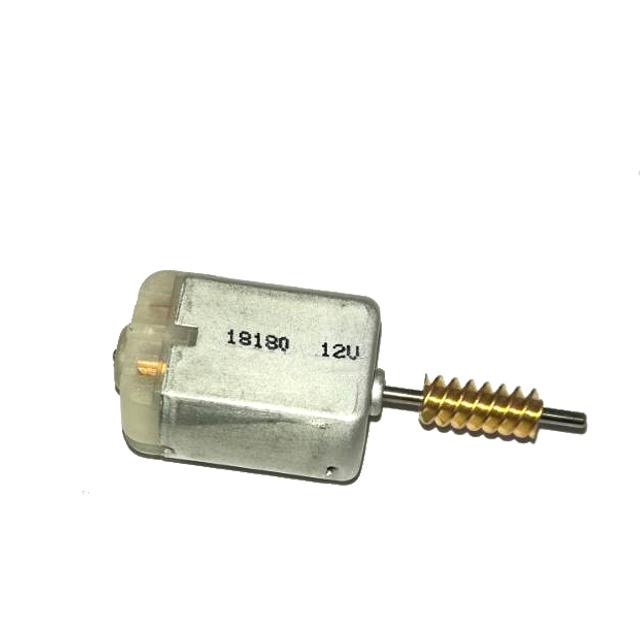

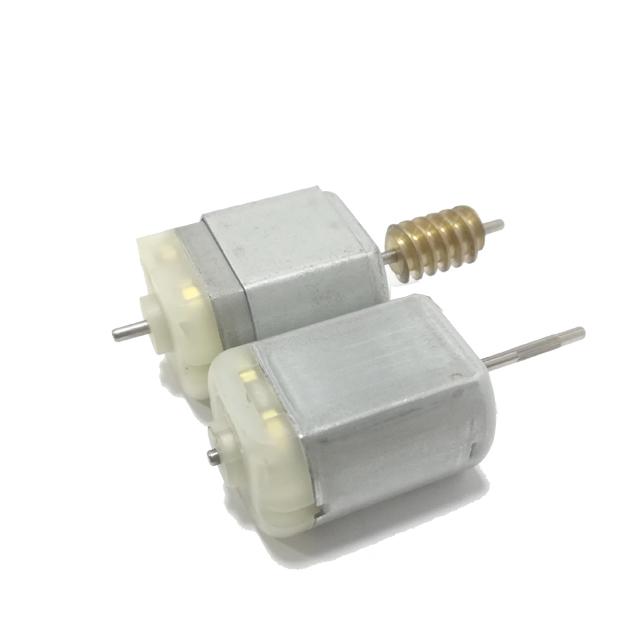

FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
1 / 5
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

Send Inquiry

Product Description

📋 Product Description
Place of Origin:
Guangdong China
Model Number:
fc 280sc 18180
Usage:
Car, Scanner
Certification:
ROHS
Type:
Micro Motor
Torque:
291G.CM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Closed
Speed(RPM):
9600rpm (No load)
Current(A):
0.1-5A
Output Power:
1-6W
Voltage(V):
12V
Efficiency:
IE 1
End Cap:
Plastic End Cap
Rotation:
Reversible
📦 Packaging & Shipping
Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail: Within 30 days
🛠️ Specifications & Visuals
12v Dc Motor car lock actuator
12V Car DC Motor Lock Actuator
✔ 12v 9600rpm High Performance
✔ ROHS Certification Compliant
✔ Permanent Magnet Construction
✔ Durable Plastic End Cap
✔ Low noise and long service life

Application: Door lock Actuator, Automotive Products

Product Gallery:

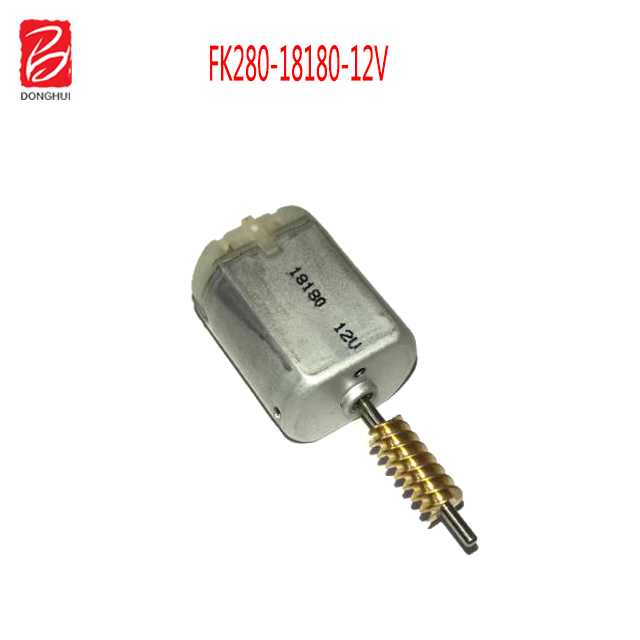

FC-280 motor view 1

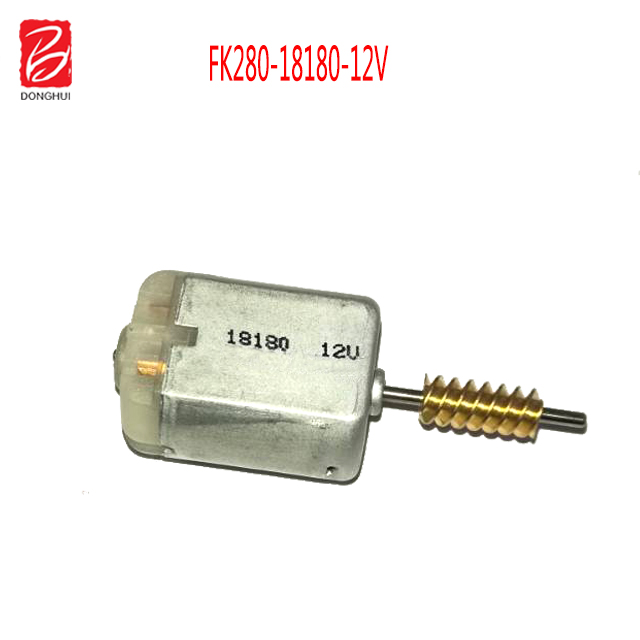

FC-280 motor view 2

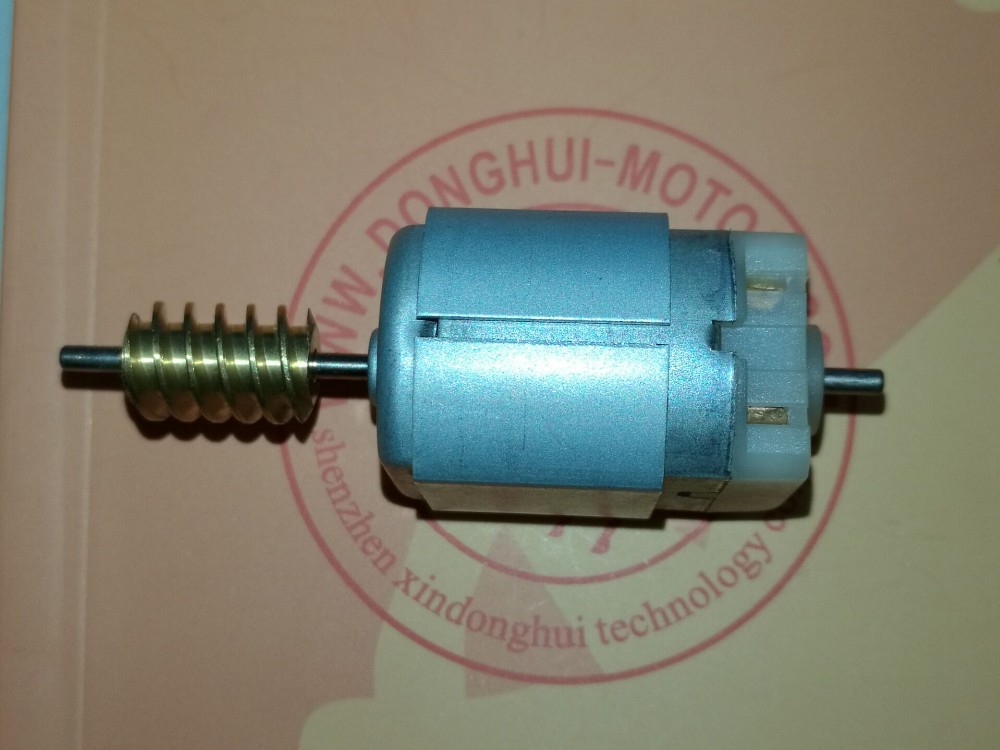

FC-280 motor view 3

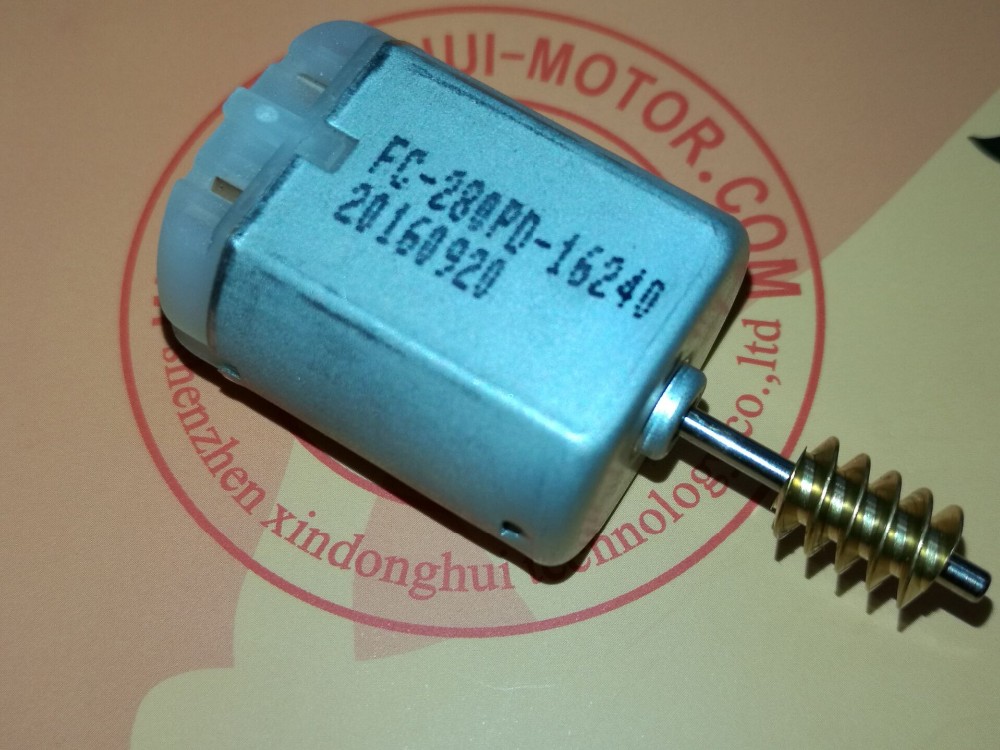

FC-280 motor view 4

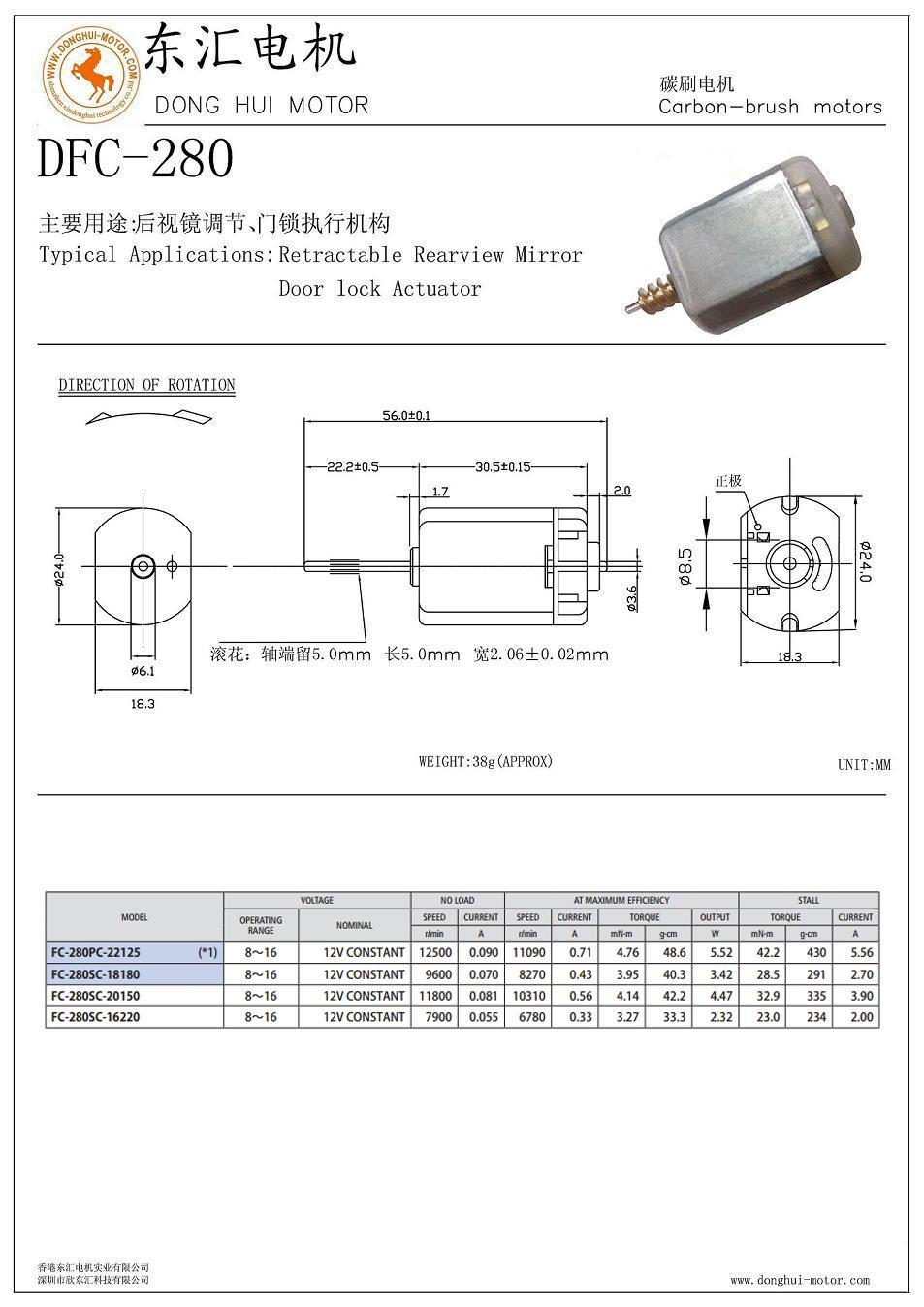

Outline Drawing:
FC-280 motor technical drawing
🏢 Manufacturing Excellence
Factory Overview
Production Line

Since the establishment in 2003, there has been a commitment to the development and production of micro motors, including four major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields.

➤ Main products: Dia4~100mm DC Micro Motor, Auto dc motor, Coreless Brushless motor, Gear Motor.
➤ DC Voltage range: 1.5V - 42V (AC rectify up to 240V).
➤ Speed range: 1 RPM - 30,000 RPM.
➤ Stall torque: 1g.cm - 30kg.cm.
Frequently Asked Questions (FAQ)
Q1: What is the primary application for the FC-280SC-18180 motor?
This motor is specifically designed for automotive door lock actuators and central locking systems, but it is also suitable for scanners and other precision micro-motor applications.
Q2: Can this motor rotate in both directions?
Yes, the motor features reversible rotation, allowing it to operate in both clockwise and counter-clockwise directions as required by the application.
Q3: What are the electrical specifications for this model?
The motor operates at a nominal 12V DC with a no-load speed of 9600rpm. The continuous current range is between 0.1A and 5A.
Q4: Does the product meet international safety standards?
Yes, the motor is ROHS certified, ensuring it meets environmental and safety requirements for hazardous substances.
Q5: What is the standard packaging and lead time for bulk orders?
The standard packaging is 500 pieces per carton. Delivery typically occurs within 30 days of order confirmation.
Q6: What type of brushes and bearings are used in this motor?
This model utilizes carbon brushes for commutation and oil-impregnated bearings for smooth operation and durability.
