FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
1 / 5
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use
FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use

FK 280SA 18165 12V DC Lock Actuator Motor Permanent Magnet with Brush Commutation for Car Use

Send Inquiry

Product Description

Product Description
Model Number fk-280sa-18165 Voltage 12V
Usage Car, Scanner Type Micro Motor
Torque 335G.CM AT STALL Construction Permanent Magnet
Commutation Brush Protect Feature Closed
Speed(RPM) 11800rpm (No load) Continuous Current 0.1-5A
Output Power 4.5W Efficiency IE 1
Certification ROHS Rotation Reversible
Brush Type Carbon brushes Bearing Type Oil-impregnated bearing

Key Specifications

12V Car Door Lock Actuator Motor

ROHS Certification
Permanent Magnet Construction
Plastic End Cap Design
Low Noise and Long Life
2-Pole Stator & 3-Slot Armature

Application: Primarily used in Door Lock Actuators and various Automotive Products.

Product Showcase
Motor Overview

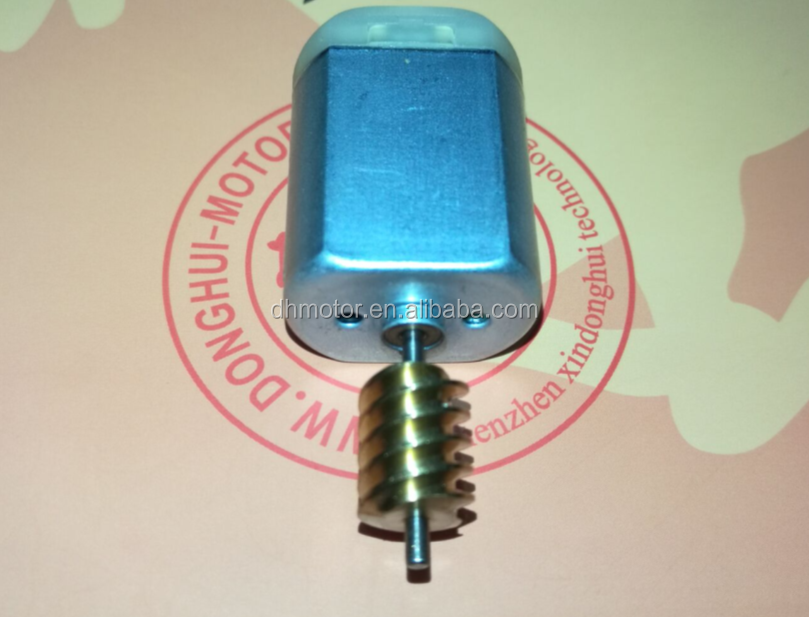

Motor Detail 1

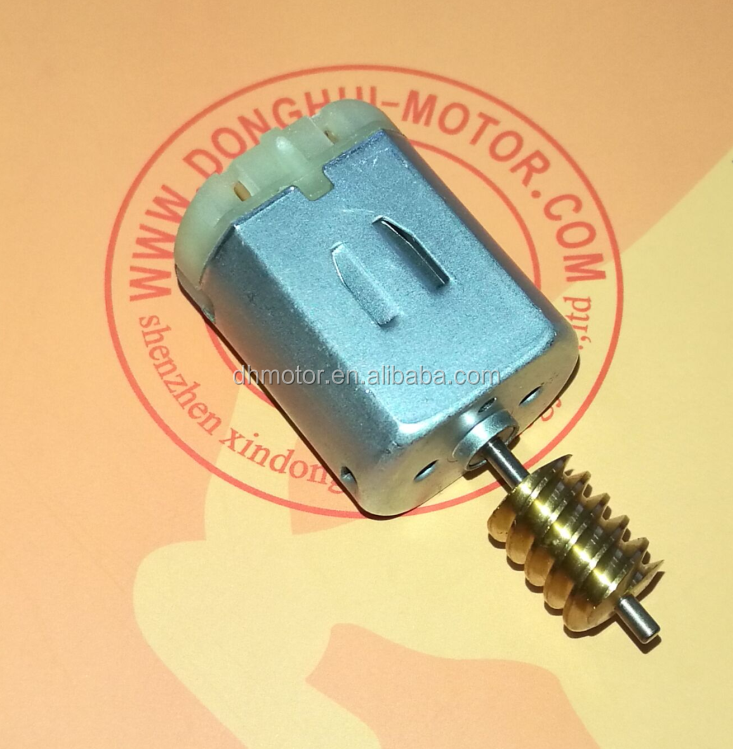

Motor Detail 2

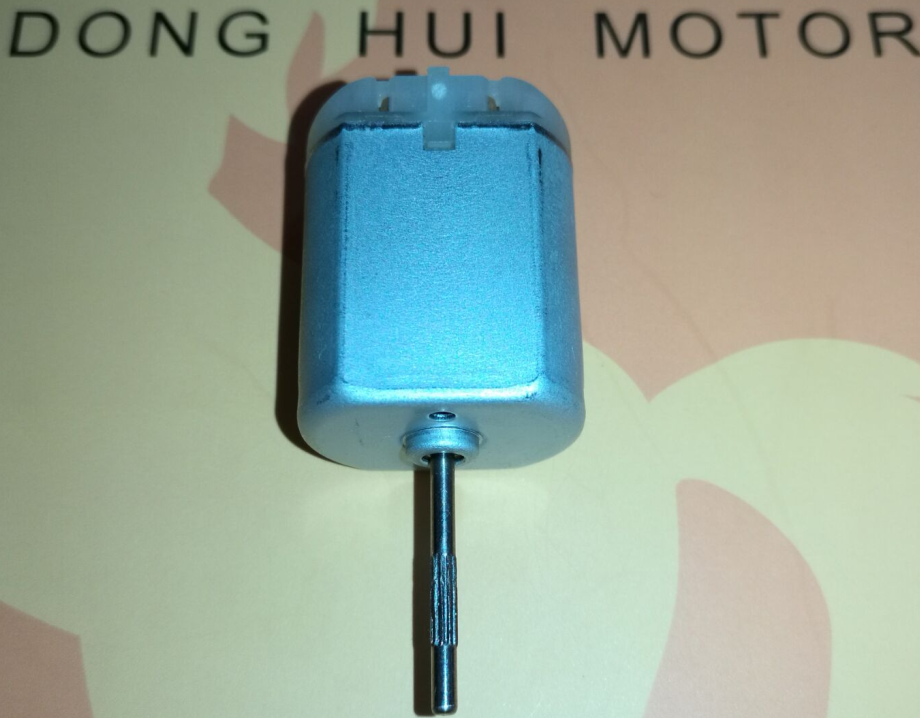

Motor Components

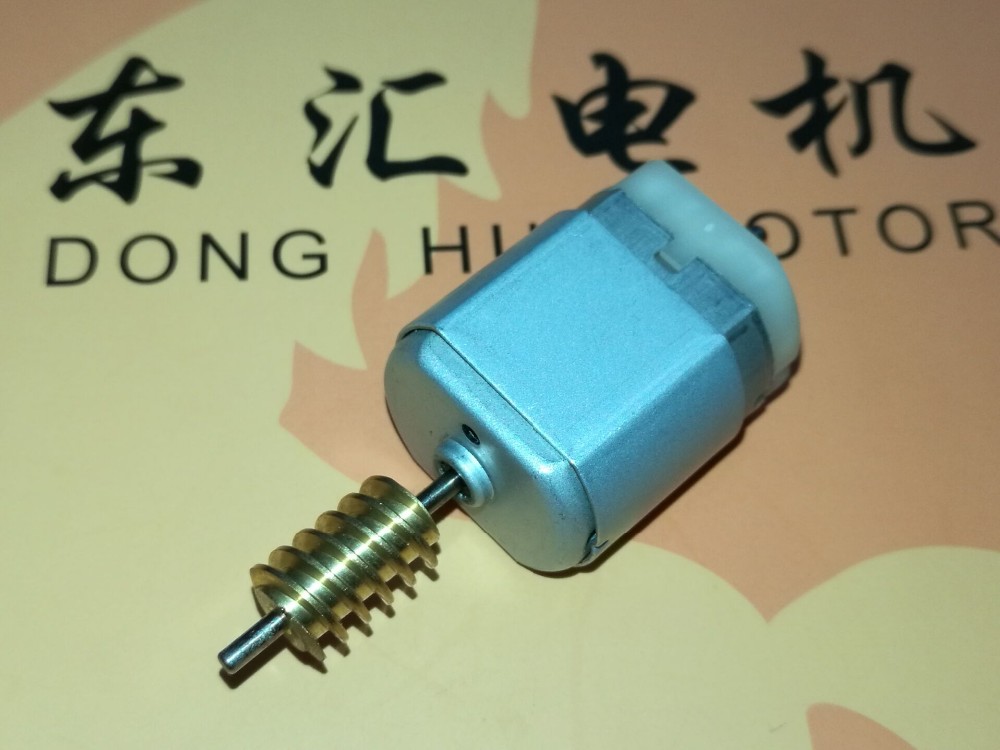

Product Angle 1
Product Angle 2
Technical Outline Drawing
Outline Drawing
General Capabilities
  • 📐 Size Range: Diameter 4mm to 100mm
  • ⚡ Voltage Range: 1.5V - 42V DC; AC Rectify 100V-240V
  • 🔄 Speed Range: 1 RPM to 30,000 RPM
  • 💪 Torque Range: 1g.cm to 30kg.cm
  • 🏭 Applications: Home appliances, Power Tools, Precision Instruments, Automotive, Audio-Visual equipment.
Packaging & Shipping
Packaging Details 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail Within 30 days
Frequently Asked Questions (FAQ)
Q1: What is the main application for the fk-280sa-18165 motor? A: This motor is primarily designed for automotive door lock actuators, scanners, and other micro-mechanical automotive products.
Q2: Can the rotation direction of this motor be changed? A: Yes, this micro DC motor is reversible, allowing for both clockwise and counter-clockwise rotation depending on the polarity.
Q3: What are the key features of the motor's construction? A: It features a permanent magnet construction, carbon brushes, and oil-impregnated bearings for a balance of performance and longevity.
Q4: Is the motor compliant with international environmental standards? A: Yes, the motor has ROHS certification, ensuring it meets strict environmental and safety requirements.
Q5: What is the typical lead time for an order? A: Standard delivery is typically within 30 days, depending on the order quantity and customization requirements.
Q6: What is the speed and power output of this 12V motor? A: It operates at a no-load speed of 11,800rpm with an output power of approximately 4.5W.
