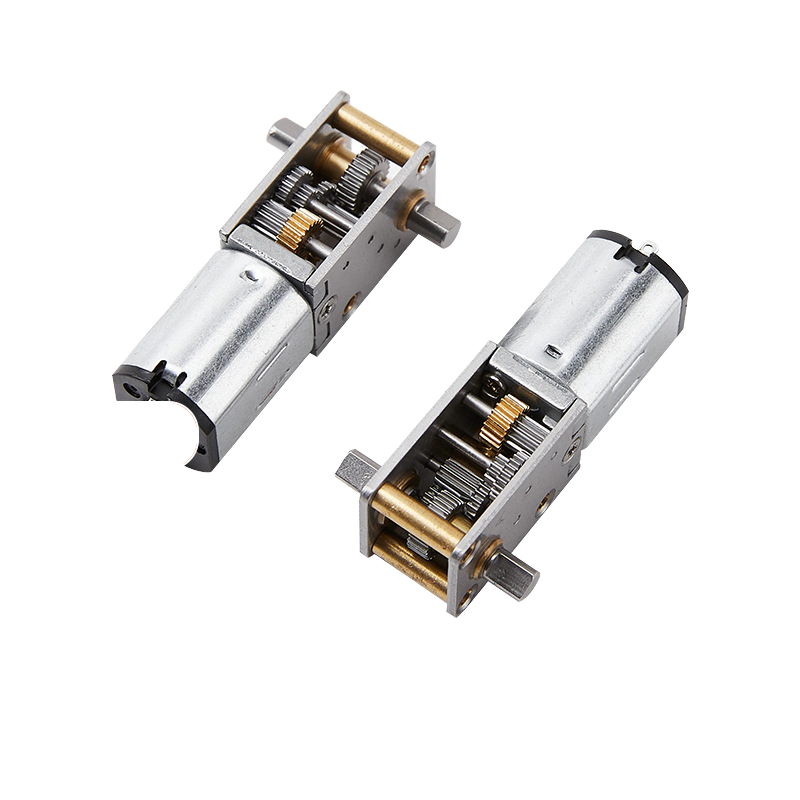

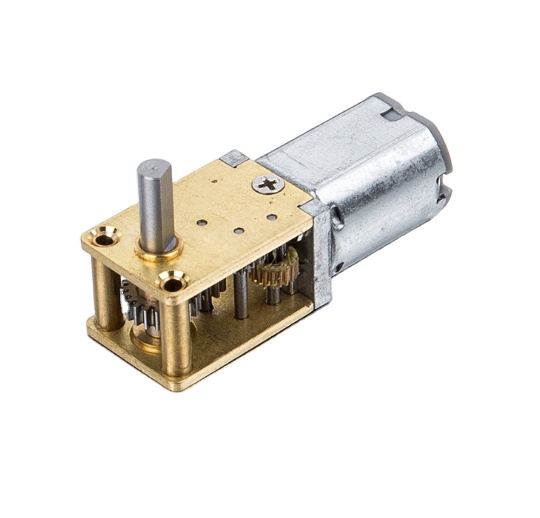

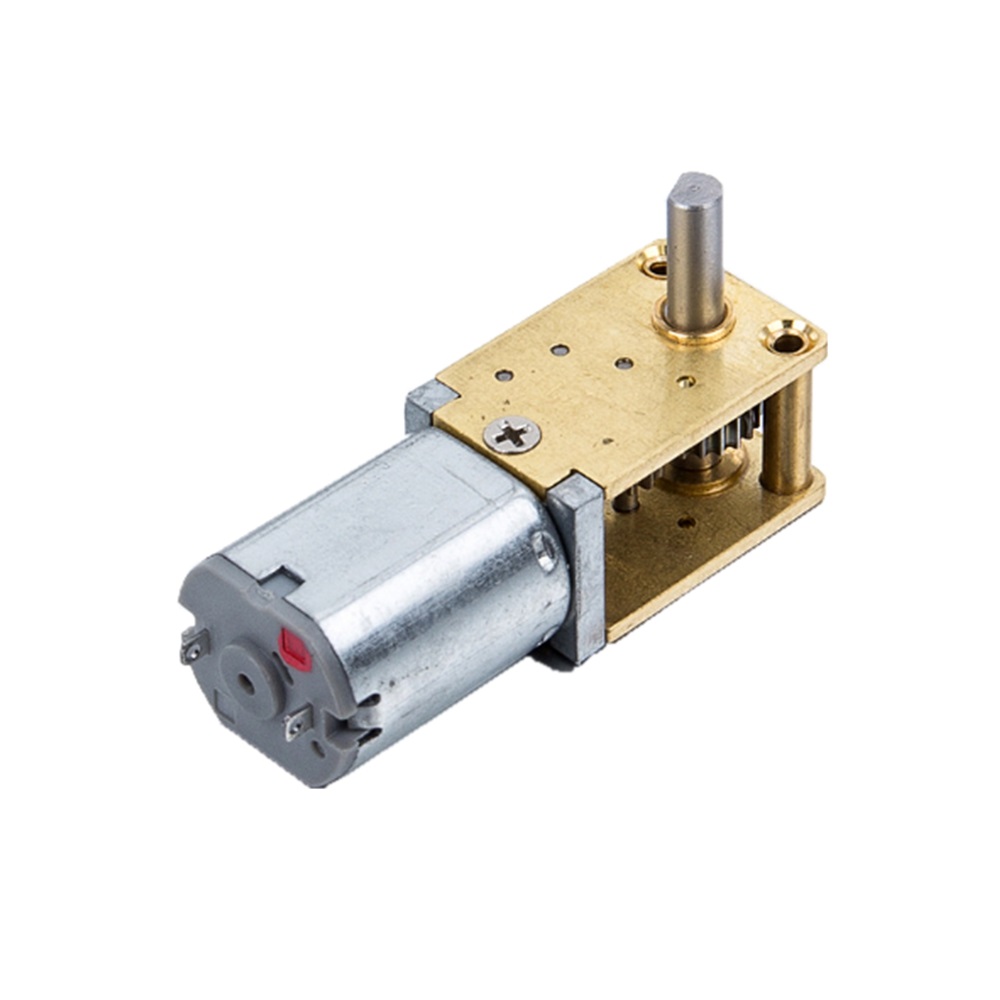

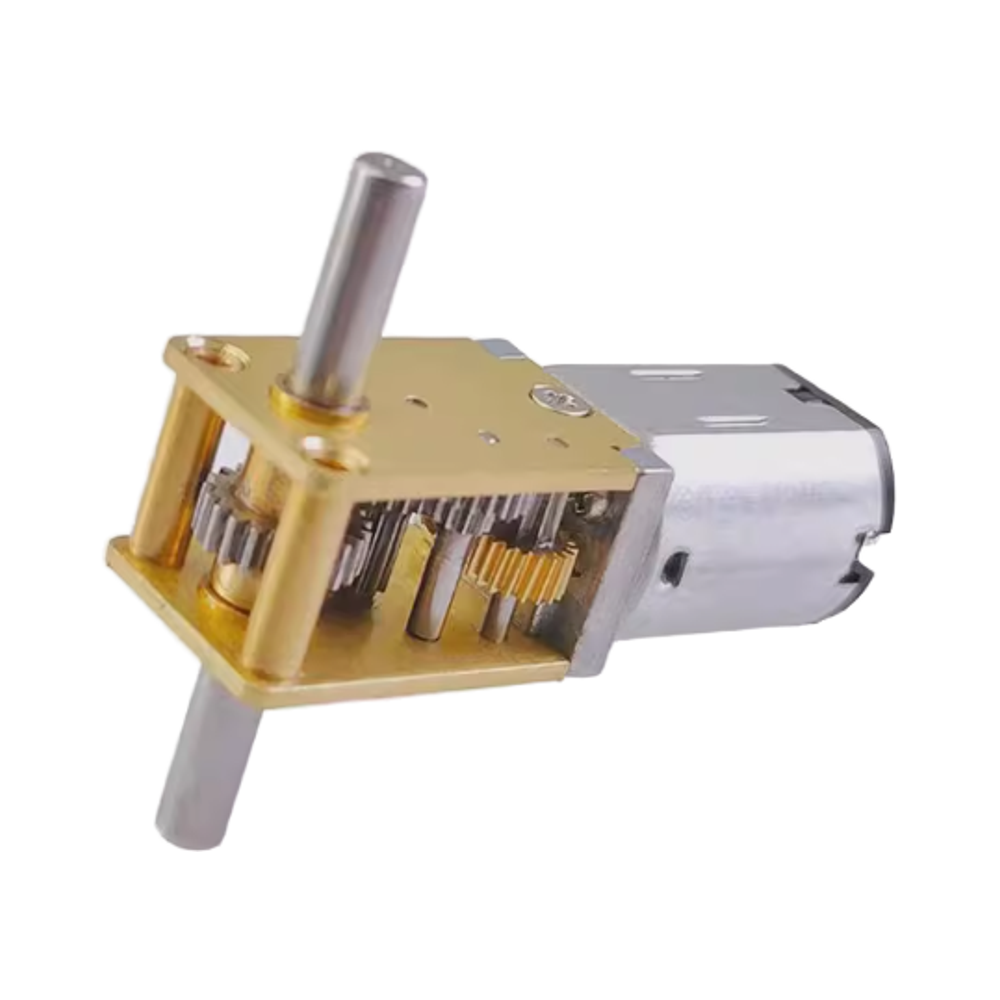

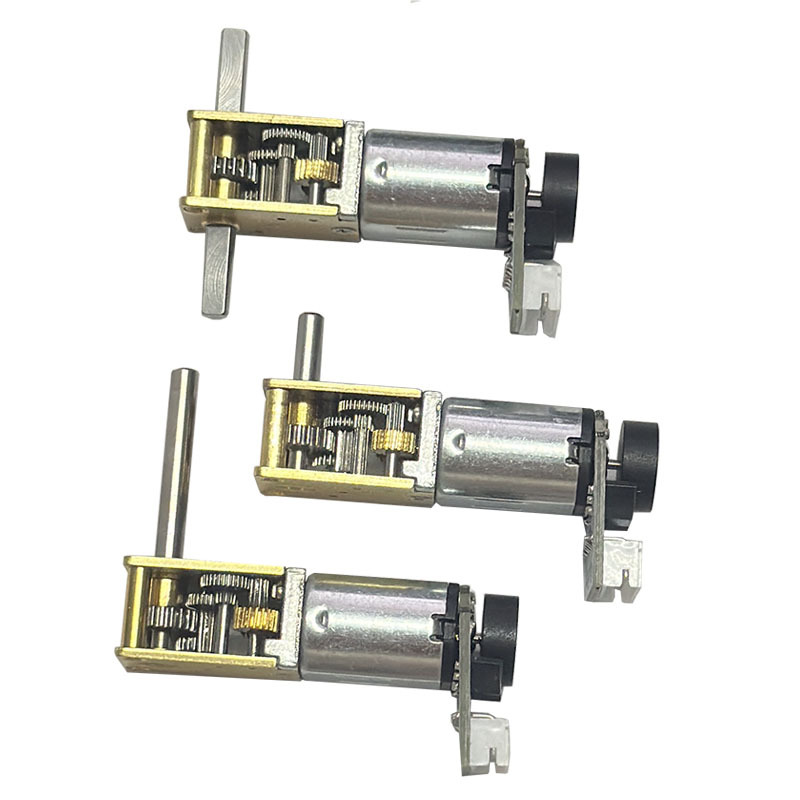

12mm 1.5v 3v 4.5v 5v 6v 12v n20 dc worm gear motor brush worm gear motor gearbox reducer gear motors
Size
D10mm*12mm*L15mm+Gearbox Length
Voltage
1.5V-12V
Unload Speed
30-260rpm
Rated Torque
≤800g.cm
Max Torque
≤1800g.cm
Wattage
0.2-0.8watt
Ratio
95, 190, 216, 236, 274, 301, 373, 438, 504, 630
Application
Robot, Lock, display shelf, toys
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Technical Capacity
Professional micro motor/engine manufacturer for 10 years.
Brush Dc Motor: Φ6mm—Φ60mm
Brushless Dc Motor: Φ12mm-Φ42mm Coreless
Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
Stepper Dc Motor: Φ6mm—Φ24mm
Vibration Dc Motor: Φ4mm—Φ45mm
Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Gearbox Ratio: 1:4---1:5000
Frequently Asked Questions
Q1 What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Vibration motor etc.
Q2 What's the main usage of the micro dc gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems, automation industry, payment equipment, vending machines, and electric door locks.
Q3 Do you accept customization?
Sure. We have a strong design team to handle technical requirements and provide customized solutions.
Q4 What data is required to place an order?
Please provide the required voltage, speed, torque, and overall dimensions.
Q5 What if I don't know the specific motor data?
Please contact our sales team and describe your application requirements; we will recommend the best fit model for you.
Q6 Are your motors suitable for high-torque applications?
Yes, our planetary gear motors and worm gear motors are designed to handle output torques up to 500Kg.cm depending on the ratio.
Please feel free contact us talk any motor question!
Jershtech DC Motors
