High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
1 / 5
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M
High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M

High-Efficiency 42mm BLDC Motor - Multi-Voltage 12V 24V 9V 18V B4260M

Send Inquiry

Product Description

KEY SPECIFICATION OF THE MOTOR
ITEM VALUE
Motor Type Brushless DC motor
Motor Model No BL4260M
Size (Dimensions) D42*60mm
Operating Voltage 8V~24V DC
No Load Speed 2000~8000 r/min
Load Torque 200g.cm~2000g.cm
Typical Application Electric Massager, Home Appliance, Smart Home
Shaft Length Customized
Shaft Shape D-Cut
PRODUCT VISUAL DISPLAY

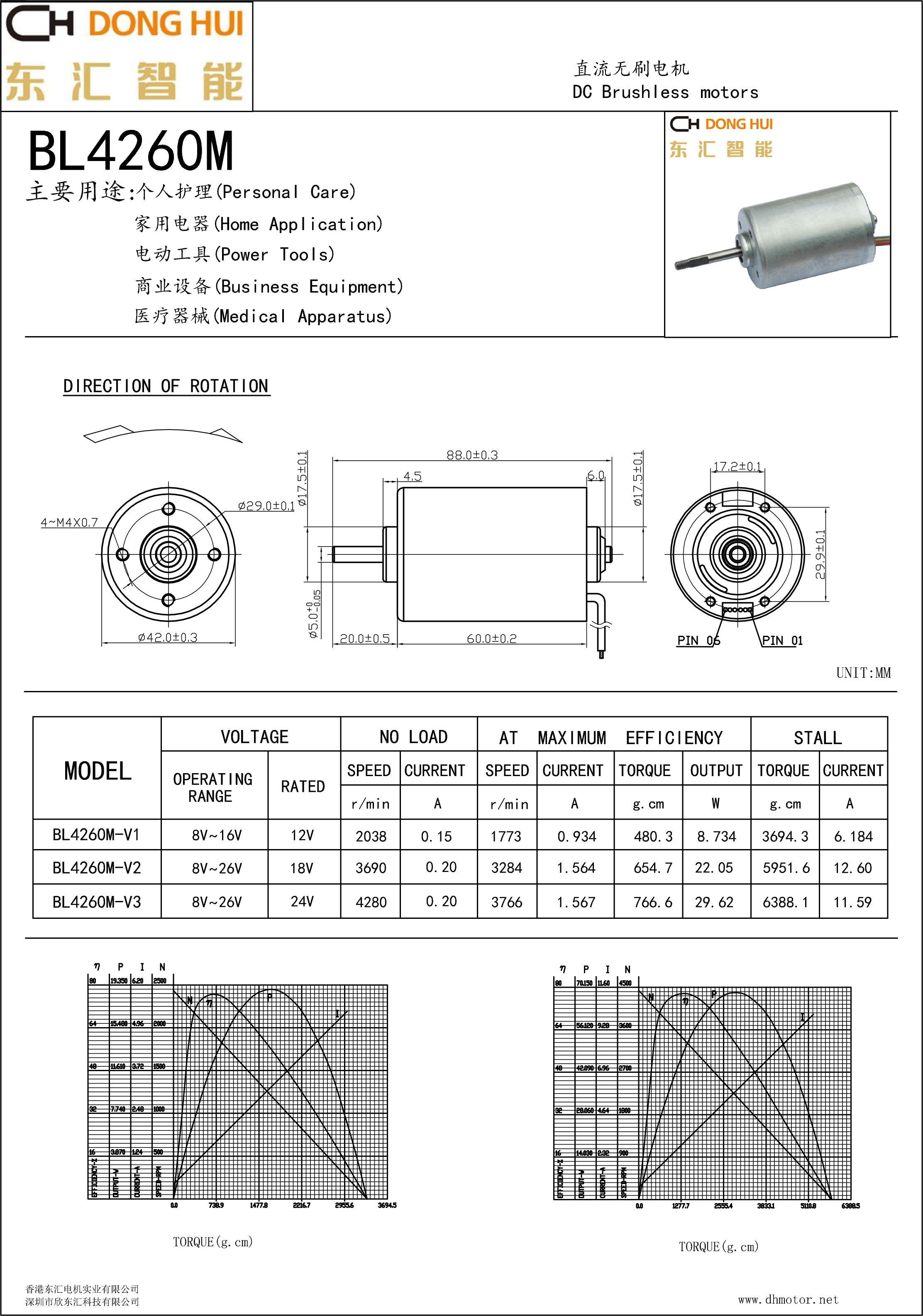

Motor Specification
Motor Type Selection
Brushless DC Motor Detail
Motor Internal Structure
Motor Dimension Chart
Motor Performance Curve
Manufacturing Process
Quality Inspection
Application Cases
Frequently Asked Questions
1. What are the key advantages of the BL4260M brushless DC motor? The BL4260M offers higher efficiency, a longer lifespan, and quieter operation compared to brushed motors, making it ideal for high-end home appliances and smart devices.
2. Can the shaft length and shape be customized for specific projects? Yes, we provide customization services for the shaft length and shape (such as D-cut, round, or keyed) to ensure a perfect fit for your application.
3. What is the recommended voltage range for optimal performance? This motor operates within a 8V to 24V DC range. For optimal performance and longevity, it is recommended to match the load requirements with the appropriate voltage within this range.
4. Is this motor suitable for use in electric massagers? Absolutely. Its compact size (D42*60mm) and high torque range (200-2000g.cm) make it a popular choice for electric massagers and other portable wellness devices.
5. Does the BL4260M support variable speed control? Yes, as a brushless DC motor, it is highly compatible with PWM speed controllers, allowing for precise speed adjustments between 2000 and 8000 r/min.
6. How does the D-Cut shaft benefit my mechanical assembly? The D-Cut shaft provides a flat surface that prevents pulleys or gears from slipping on the shaft, ensuring more reliable torque transmission.
