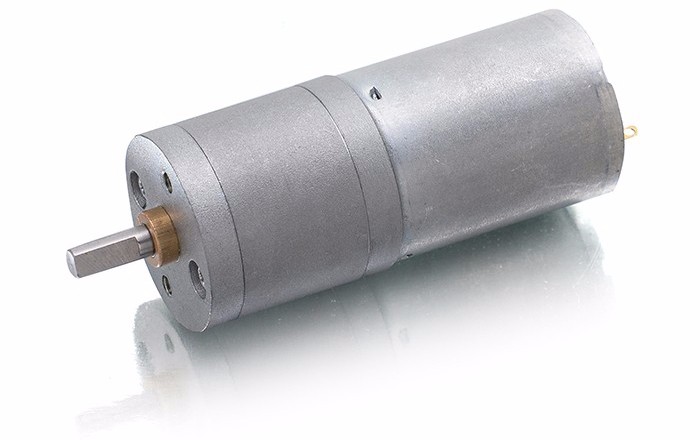

6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
1 / 5
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder
6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder

6V 12V High Torque Micro Dc Gear Motor with Encoder, 25mm Micro Dc Gear Motor with Encoder

Send Inquiry

Product Description

◈ Product Description
gm25-370 25mm DC Motor with Gearbox, High Torque Micro DC Gear Motor with Encoder
Place of Origin Guangdong China (Mainland) Model Number DGA25-370
Usage Home Appliance Certification CCC, CE, ROHS
Type Gear Motor Torque 2.5 kg.cm
Construction Permanent Magnet Commutation Brush
Protect Feature Drip-proof Speed(RPM) 11rpm / 14rpm (No Load)
Continuous Current 0.147A Output Power 1.1W
Voltage(V) 12V Efficiency IE 1
DC Gear Motor with Encoder
High Torque Gear Motor

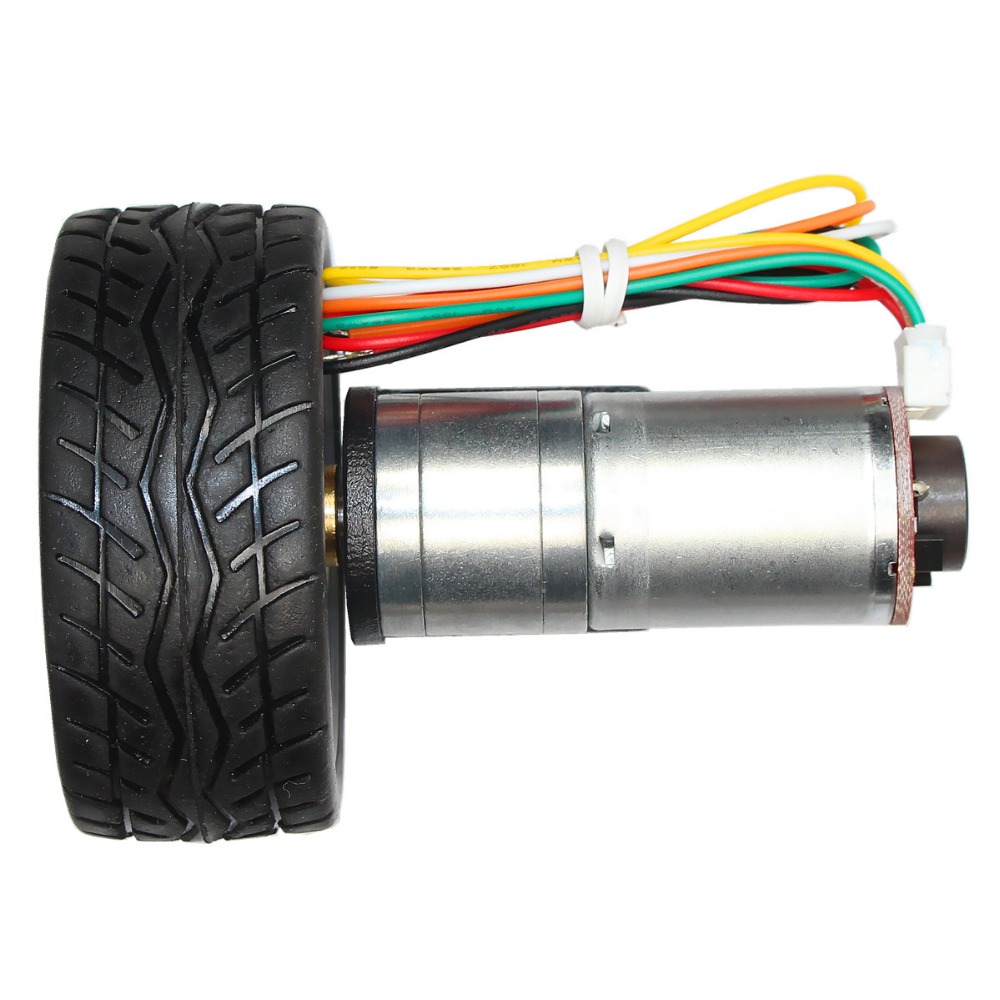

Micro Gear Motor Detail
◈ Specifications & Features

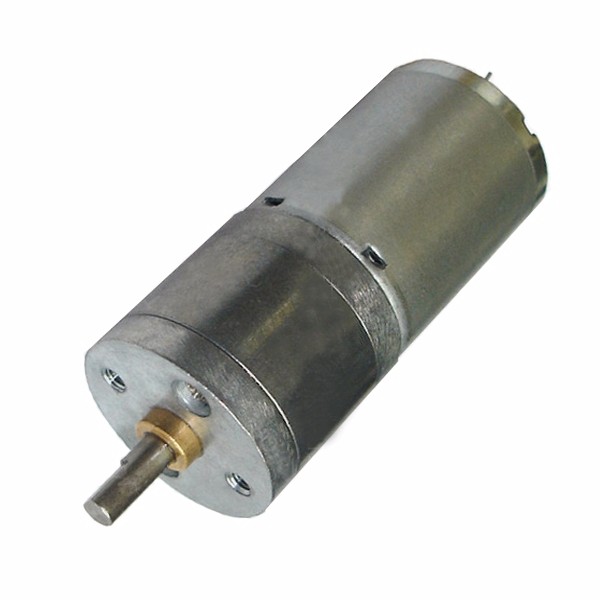

6V 12V high torque micro DC gear motor with encoder, 25mm micro DC gear motor with encoder

  • 25mm DC motor with encoder
  • RF370 motor + 25mm gearbox
  • 4mm D shape output shaft
  • Customizable Reduction Ratio
  • Low noise, low current, no spark
  • Long life time: 2500H
  • Equipped with encoder, 16 pulse signal
Typical Applications Description / Reduction Ratio
Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment. 1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, 1/478

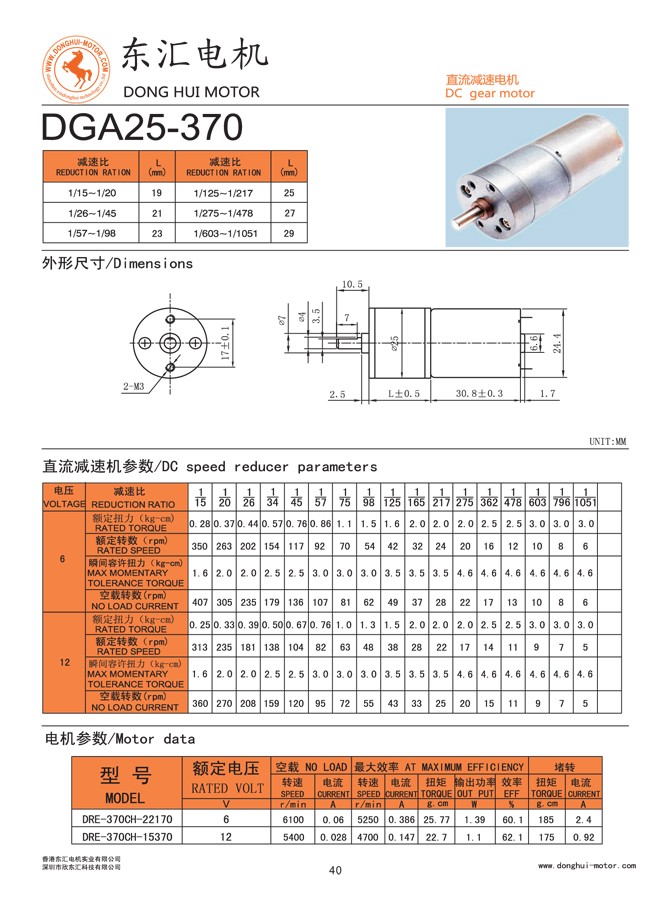

Motor Dimension
Motor Performance Curve
◈ Packaging & Shipping
Packaging Details 240PCS/CTN, CARTON DIMENSION: 415*315*210 MM
Delivery Detail Within 25 days

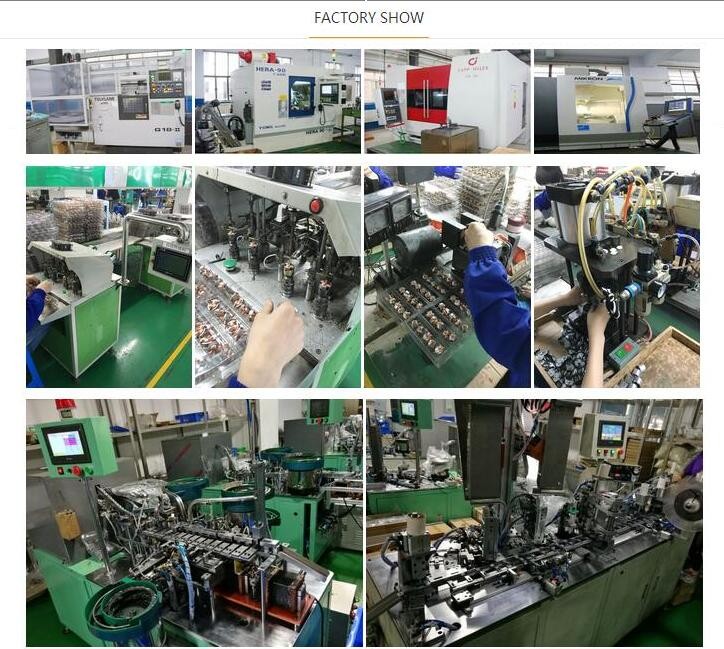

Manufacturing Facility

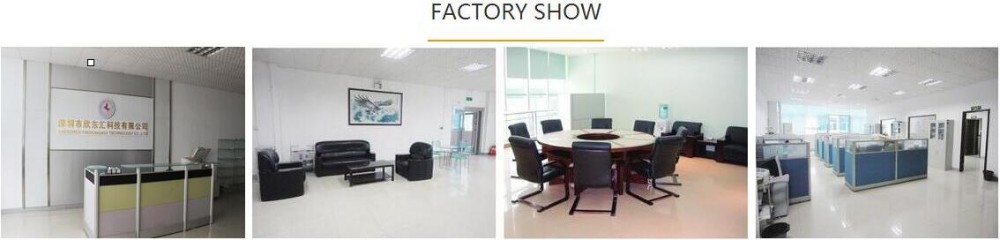

Production Line

Established in 2003, we have been committed to the development and production of micro motors, including Micro DC motors, DC gear motors, coreless motors, and brushless motors. Our products are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, and automotive fields.

Frequently Asked Questions (FAQ)
1. What is the standard voltage range for this gear motor? The DGA25-370 motor supports a DC voltage range from 1.5V up to 24V, with 12V being the standard rated voltage.
2. Can I customize the reduction ratio and output shaft? Yes, the reduction ratio can be customized between 15 and 1051, and the output shaft dimensions can be adjusted based on your requirements.
3. What is the advantage of the built-in encoder? The encoder provides a 16-pulse signal, allowing for precise speed control and positioning, which is ideal for robotics and measuring instruments.
4. What is the expected lifespan of the motor? The motor is designed for high durability with a life time rating of approximately 2500 hours under normal operating conditions.
5. What is the lead time for bulk orders? Standard production delivery time is usually within 20-25 days after order confirmation. Samples can be sent first for testing.
6. Is this motor suitable for quiet environments? Yes, it features a low-noise design with low current draw and no spark commutation, making it suitable for household appliances and office equipment.
