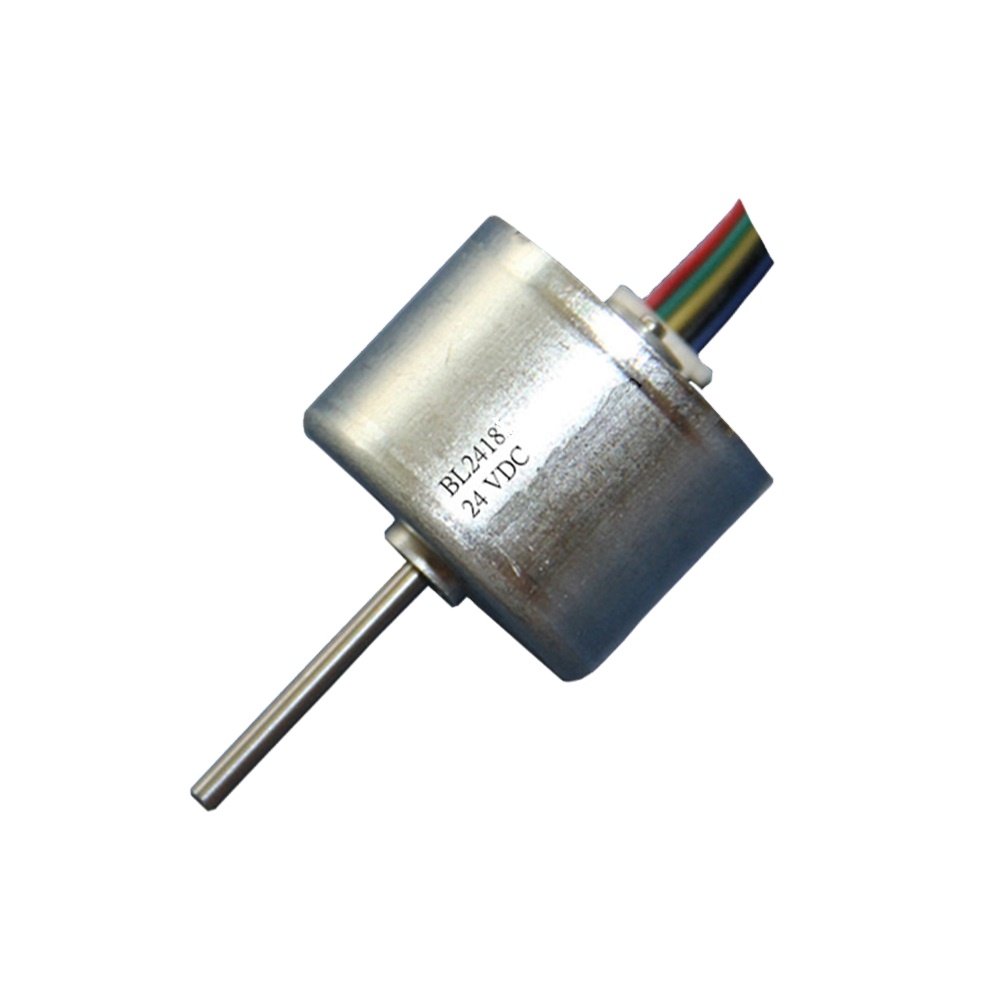

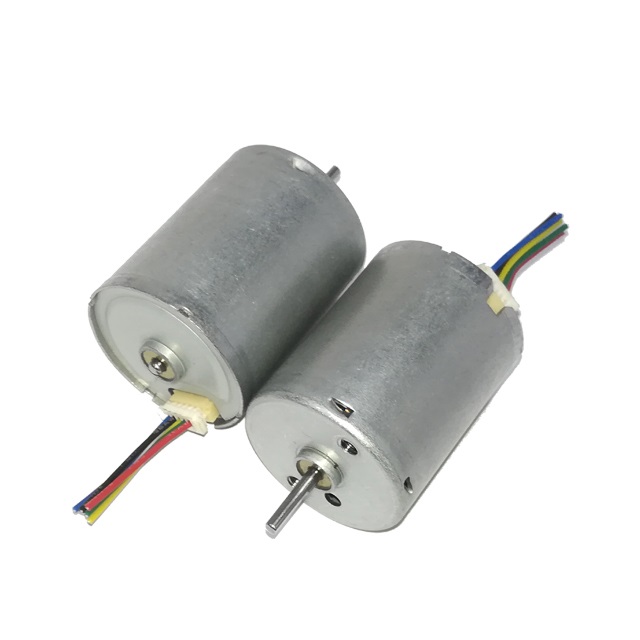

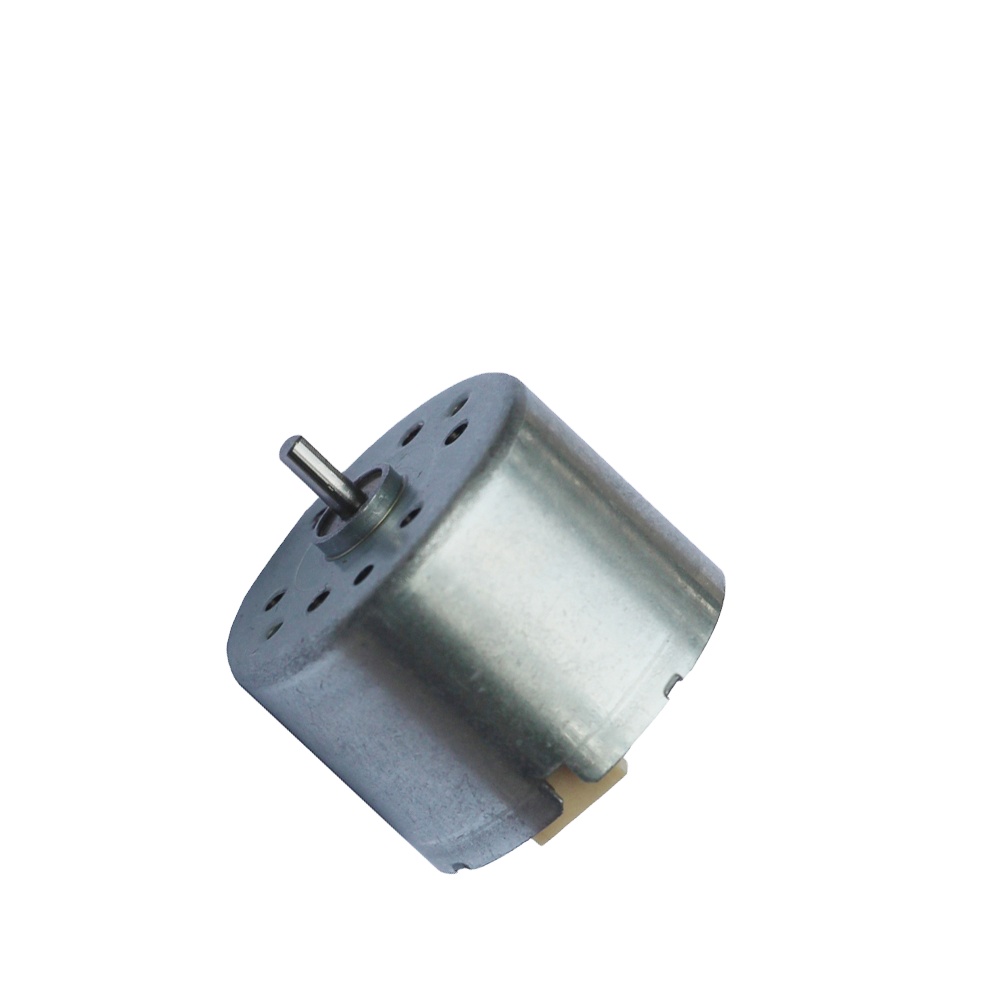

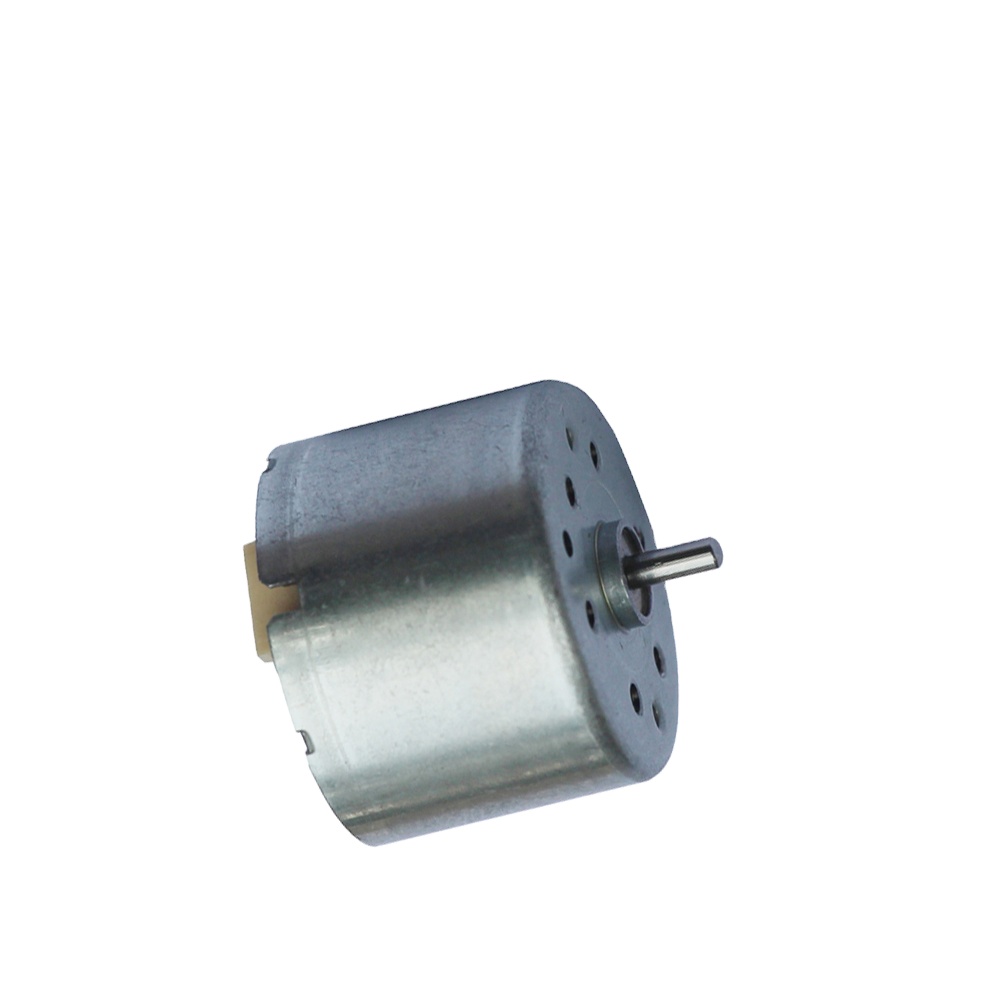

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

1 / 5

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

Send Inquiry

Product Description

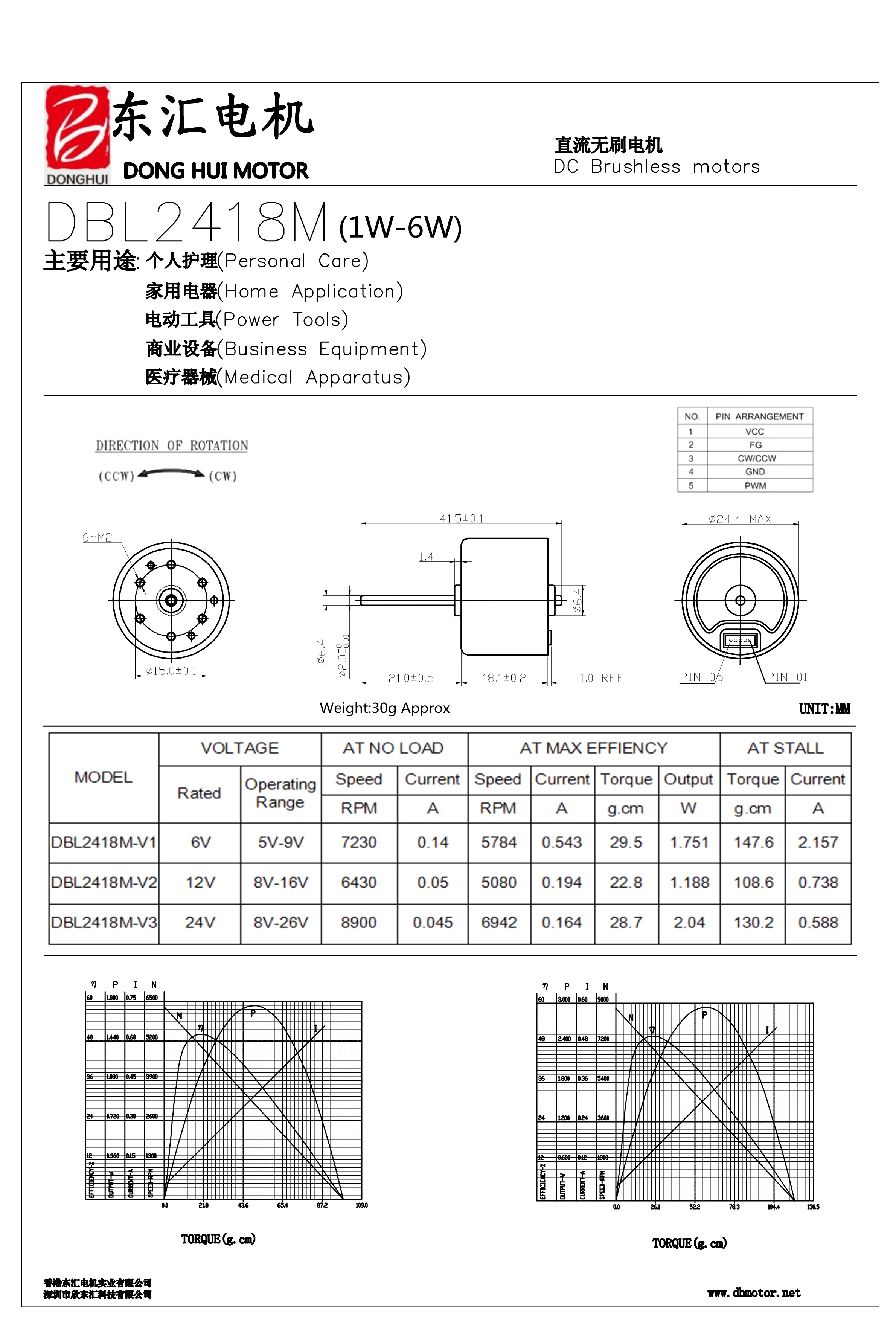

Specification

Item	Mini Brushless Motor
Size	Diameter 24mm, Length 18mm, 30mm
Voltage	3.7V~26V
Unload Speed	2000-11000rpm
Output torque	≤350g.cm
Wattage	≤8watt
Driver	Built-in design or Customized
Bearing	Ball bearing or normal bearing
Lifetime	3000hours~20000hours
Function	FG, CW/CCW, PWM
Protection	Over current protection, Over heating protection
Feature	Long lifetime, low noise, high efficiency, stable and reliable
Application	Fan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill

Product Description

The following motor's voltage, speed, current, wattage, torque, shaft length, and type can be customized to meet your specific requirements.

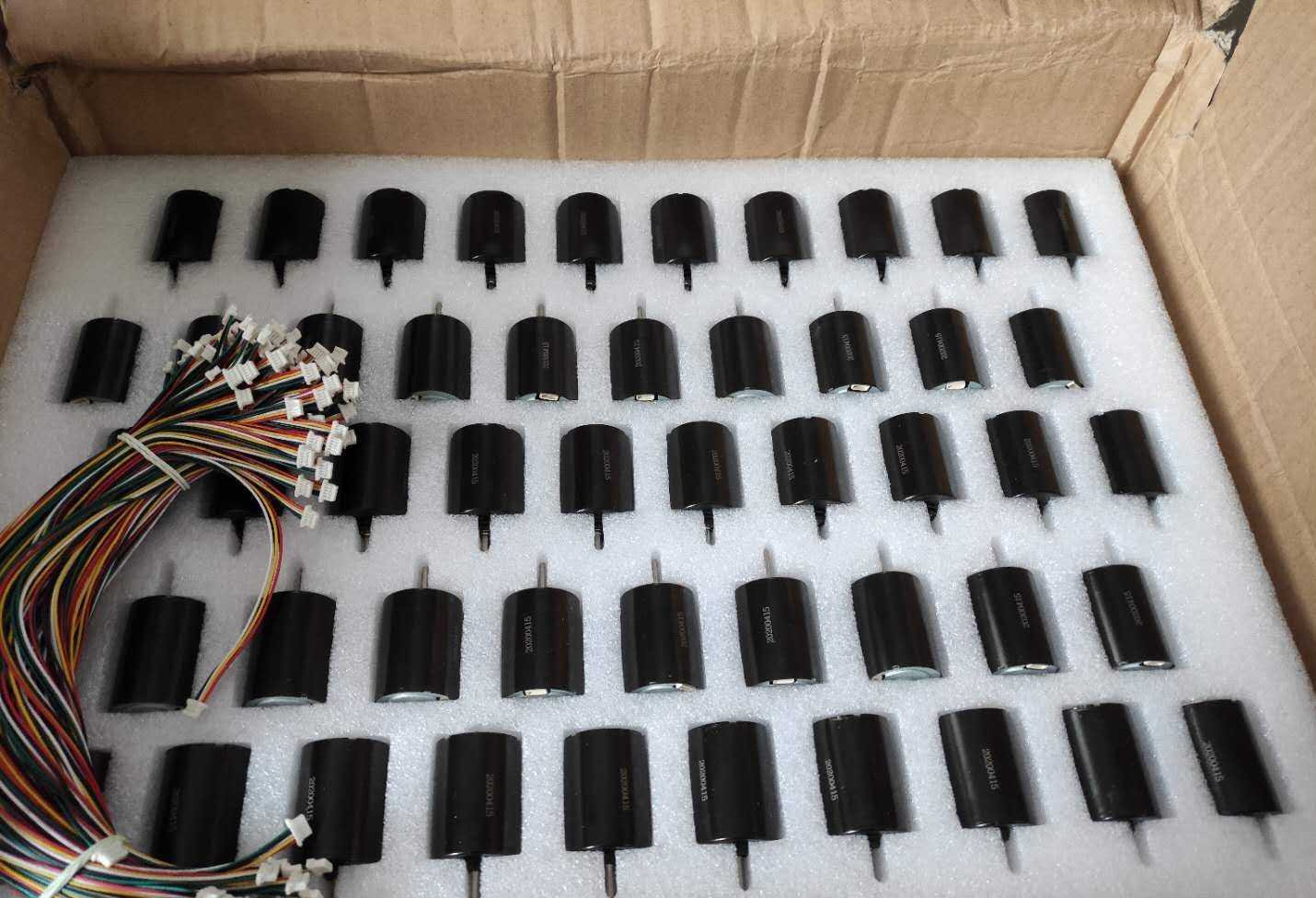

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Technical Capacity

Brush DC Motor: Φ6mm—Φ60mm

Brushless DC Motor: Φ12mm-Φ42mm

Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm

Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm

Stepper DC Motor: Φ6mm—Φ24mm

Vibration DC Motor: Φ4mm—Φ45mm

Motor Voltage Range: DC 1.5V-220V, AC 110V/220/230/240V

Speed Range: 0.1-80,000 RPM

Output Torque: 0.01-500 Kg.cm

Gearbox Ratio: 1:4 to 1:5000

Frequently Asked Questions

What are your main products?

We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless DC motors, Spur Gear motors, and Vibration motors.

What are the main applications of these motors?

Our motors are widely used in Home Appliances, Office Equipment, Health-care devices, Automation industries, Banking systems (vending machines, payment equipment), and Power tools.

Do you accept customization for motors?

Yes, we have a strong design team. We can customize voltage, speed, torque, and dimension to meet your specific technical requirements.

What information is needed to place an order?

Please provide the required voltage, speed, torque, and overall dimensions for your application.

What if I am unsure of the exact specifications?

Please share your application requirements with our sales team, and we will recommend the best-fit model for your needs.

What is the expected lifetime of your brushless motors?

Depending on the specification and bearing type, the lifetime typically ranges from 3,000 hours to 20,000 hours.
