Product Description

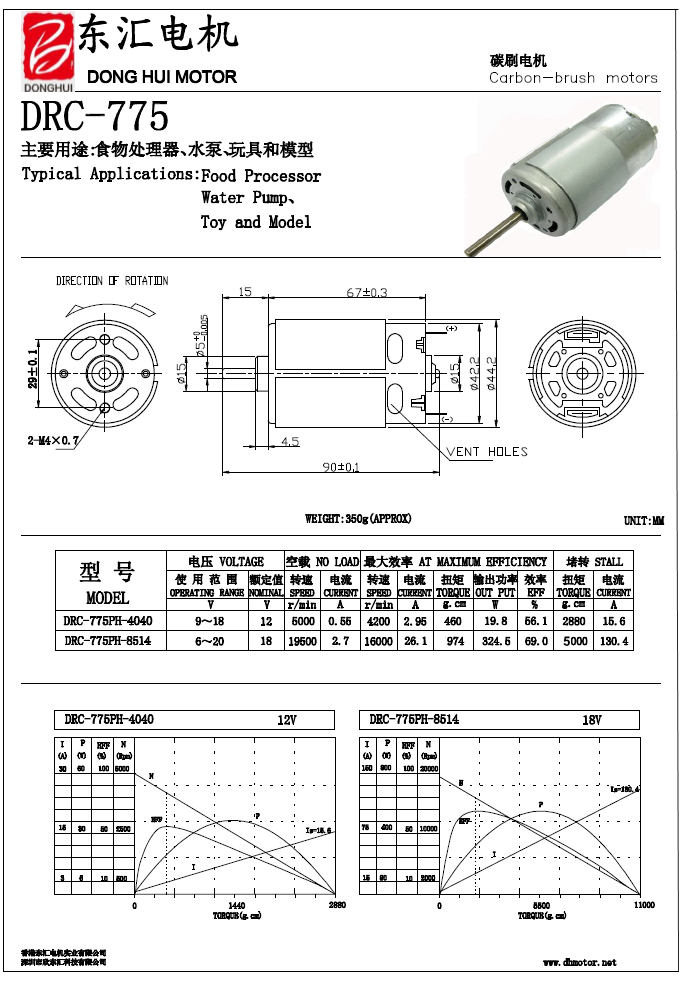

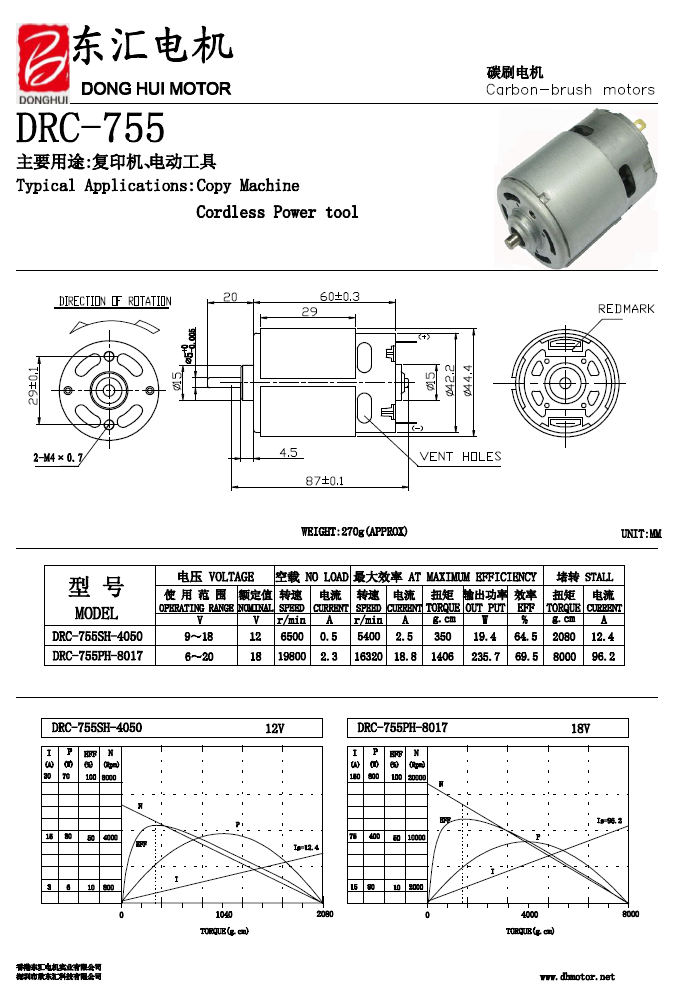

Specification

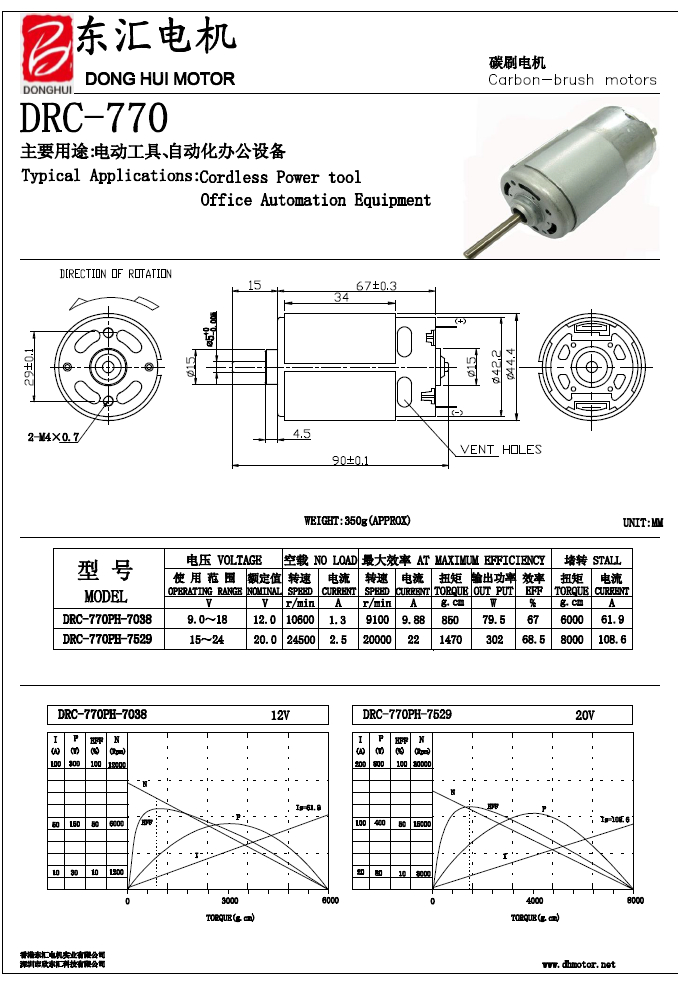

Item	RS775/RS755/DRC770/DRC750 mini electric dc motor
Size	Diameter 42 mm, length 67mm/60mm
Voltage	DC 3V~26V
Speed	1000-30000rpm Customized
Consume power	≤450watt
Output Power	≤300watt
Bearing	Oil bearing or ball bearing
Function	With encoder 3ppr/7ppr/
Shaft	3mm round shaft can be with D cut or screw type or Customized
Application	Electric drill, Grinder, Food Processor, Water Pump, Toy and Model, Power tool, Fan

Product Description

⚙️ Motor's voltage, speed, ratio, torque, shaft length can be customized

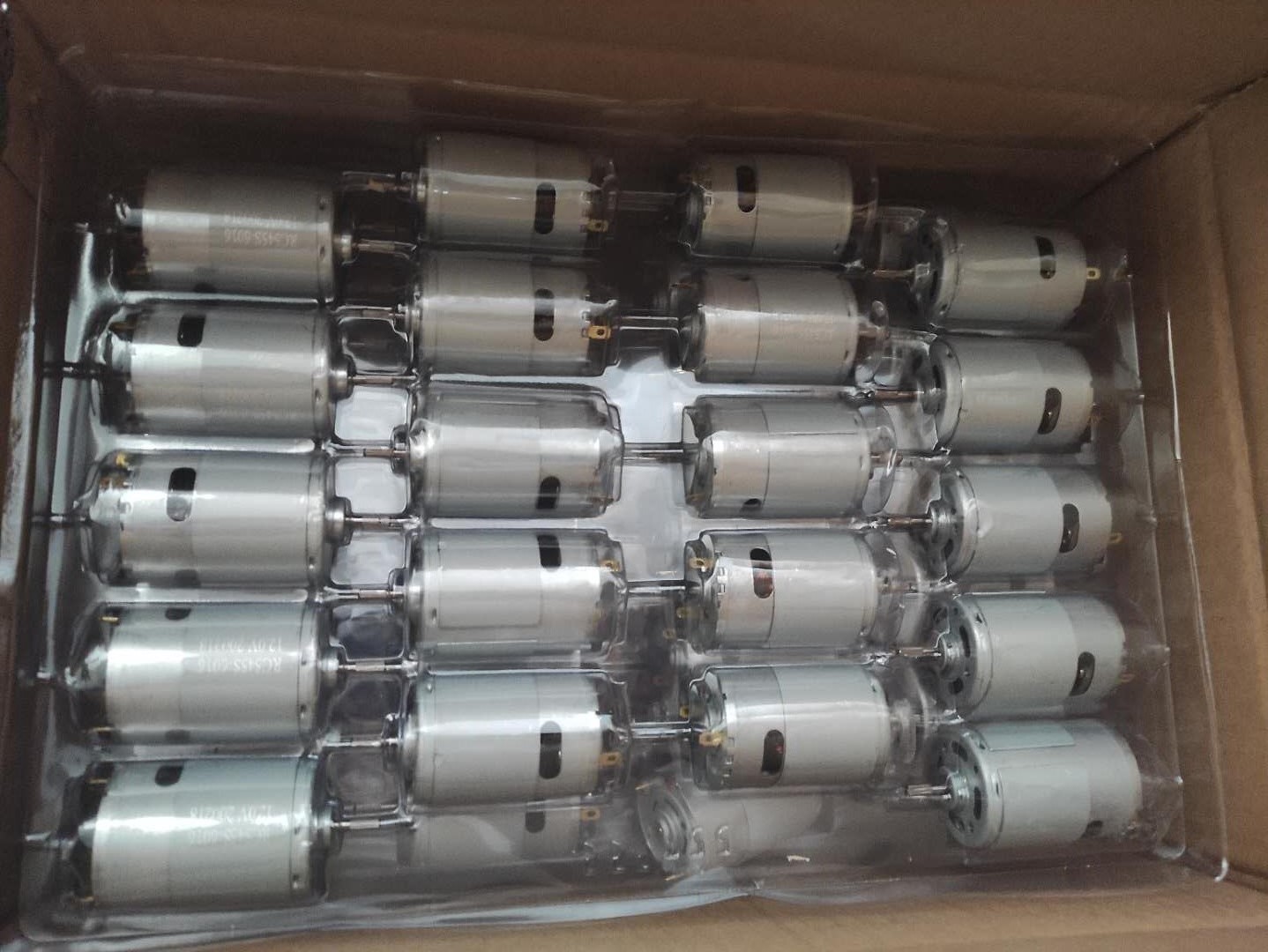

Packing & Delivery

📦 To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Production Environment

Frequently Asked Questions

Can the motor specifications be customized?

Yes, we provide customization for voltage, speed, ratio, torque, and shaft length to meet your specific requirements.

What are the main applications for these DC motors?

These motors are widely used in electric drills, grinders, food processors, water pumps, toys, models, power tools, and fans.

What types of bearings are available for the RS775 series?

We offer both oil bearings and ball bearings depending on your durability and performance needs.

Does the motor support an encoder function?

Yes, the motor can be equipped with an encoder supporting 3ppr or 7ppr for precise control.

What is the range of operating voltage?

The standard operating voltage ranges from DC 3V to 26V.

What are the physical dimensions of the motor?

The motor has a diameter of 42mm and comes in lengths of either 60mm or 67mm.
