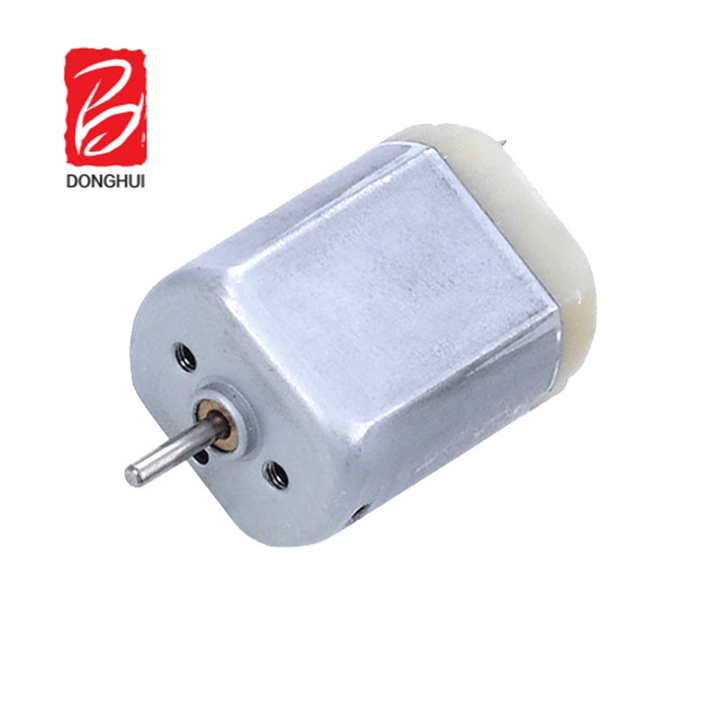

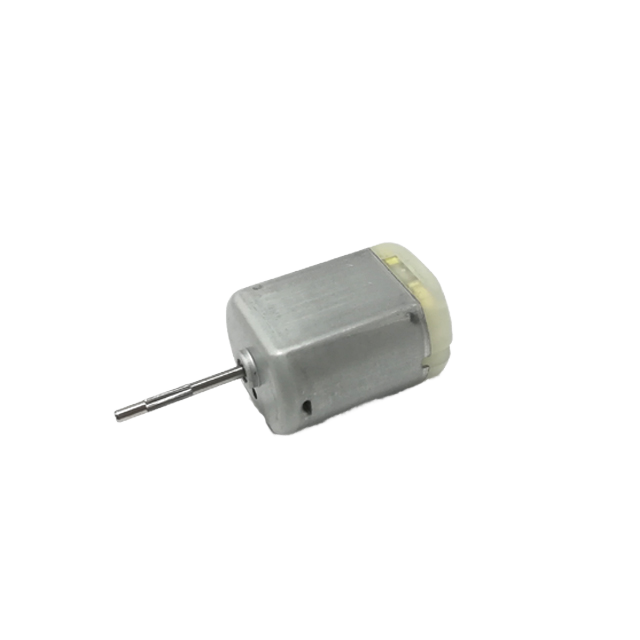

Jershtech DC Motors
Jershtech DC Motors
Specification:

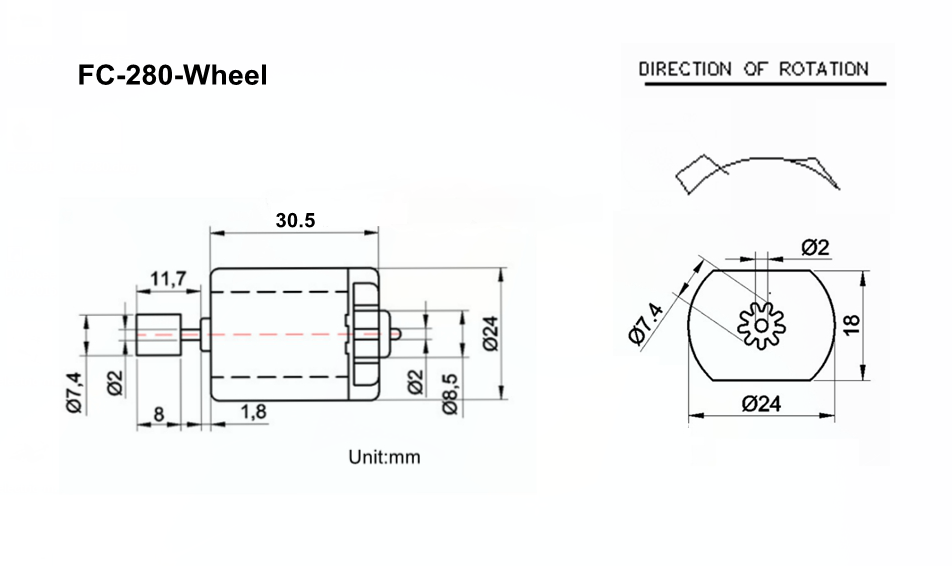

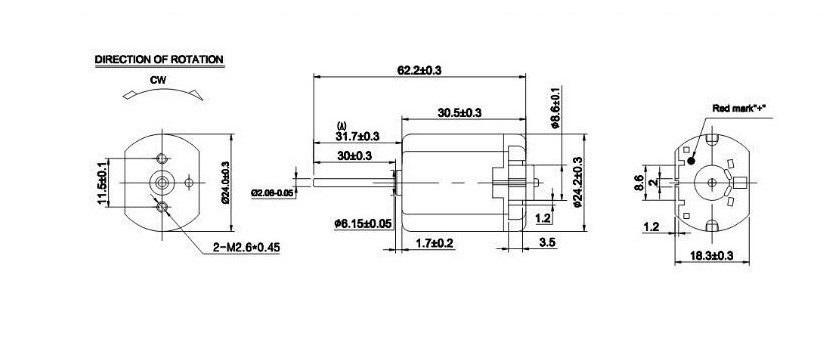

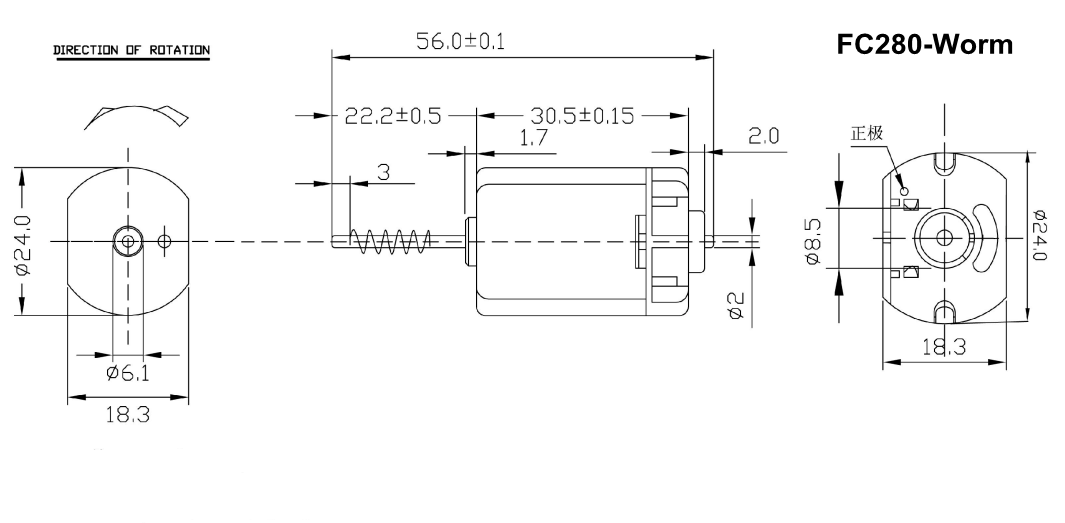

| Size | D24.2mm*18.3mm*L30mm |
|---|---|
| Voltage | 3-26v |
| Unload Speed | 3500-15,000rpm |
| Torque | 2.5-5.5mN.m |
| Wattage | 0.1-5.6w |

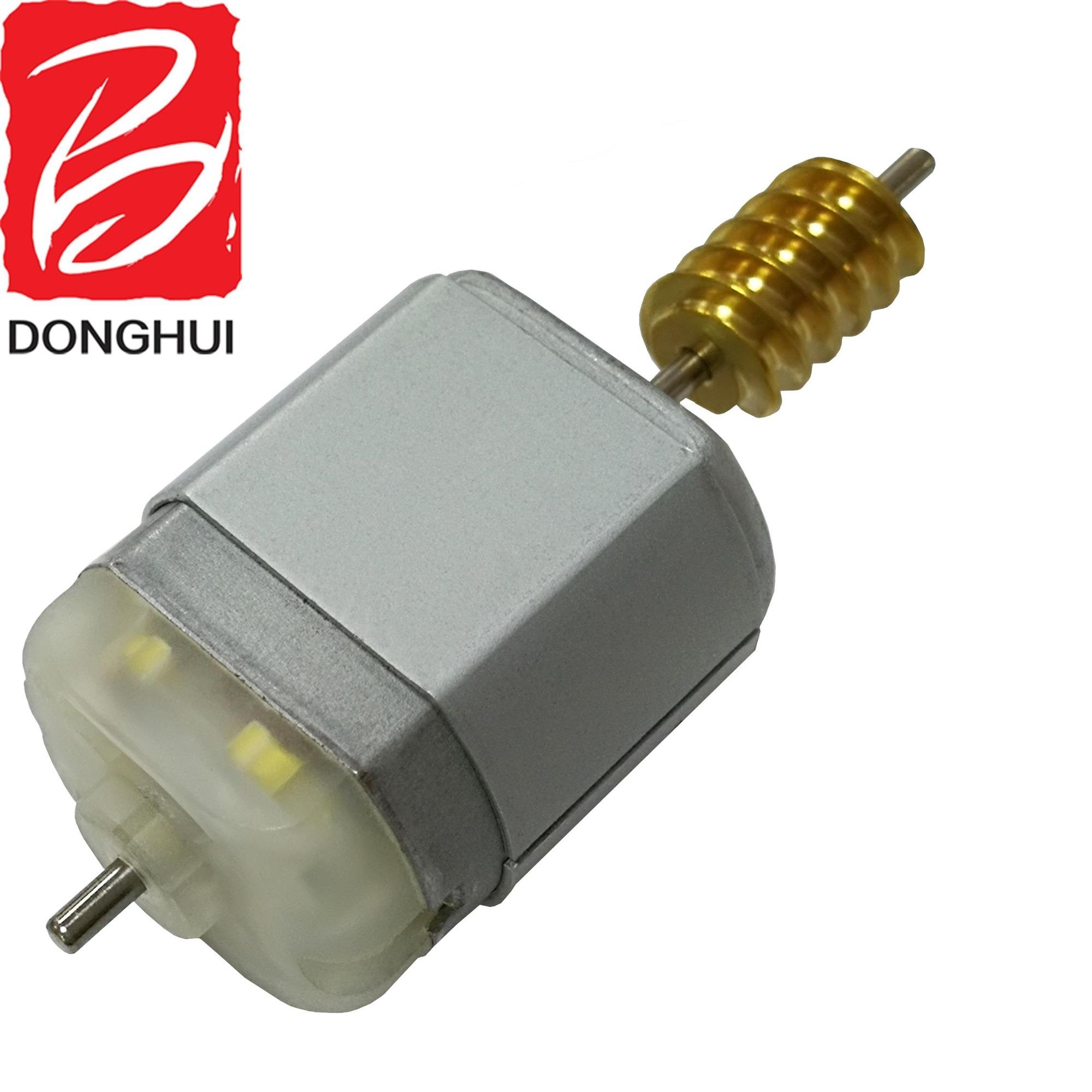

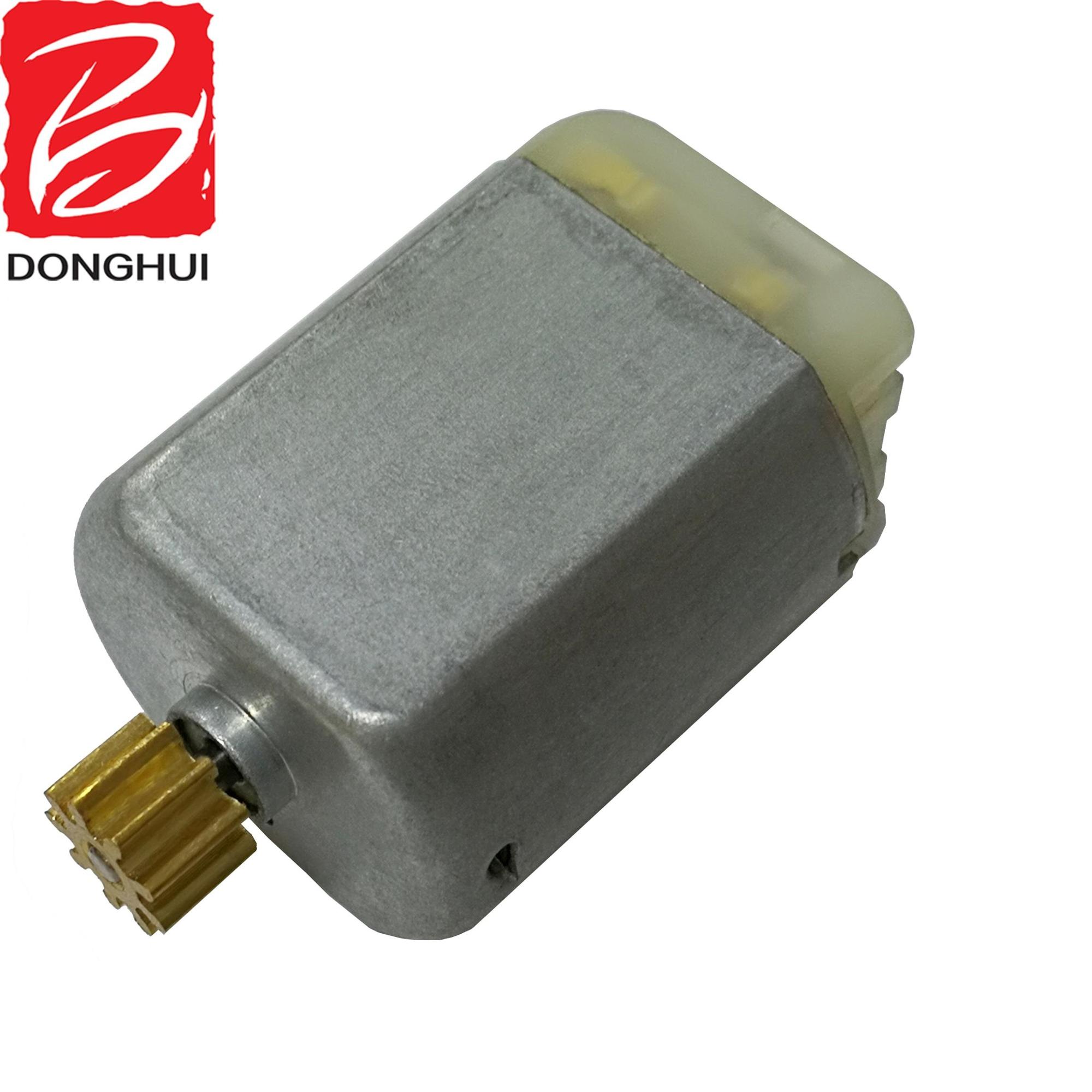

| Application | Door lock actuator, retractable rearview mirror, hair remover, vending machine |
| Model | Voltage | No Load | At Max Efficiency | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range(V) | Nominal(V) | Speed(RPM) | Current(A) | Speed(RPM) | Current(A) | Torque(mNm) | Output(W) | Current(A) | Torque(mNm) | |
| FC-280SH-18180 | 8.0-15.0 | 12 | 9700 | 0.16 | 7880 | 0.69 | 5.3 | 4.39 | 3.0 | 28 |
| FC-280SH-20150 | 8.0-16.0 | 12 | 11800 | 0.081 | 10310 | 0.56 | 4.14 | 4.47 | 3.9 | 32 |
| FC-280SA-24188 | 6.0-24.0 | 24 | 8250 | 0.14 | 6308 | 0.15 | 3.1 | 1.89 | 0.53 | 13 |

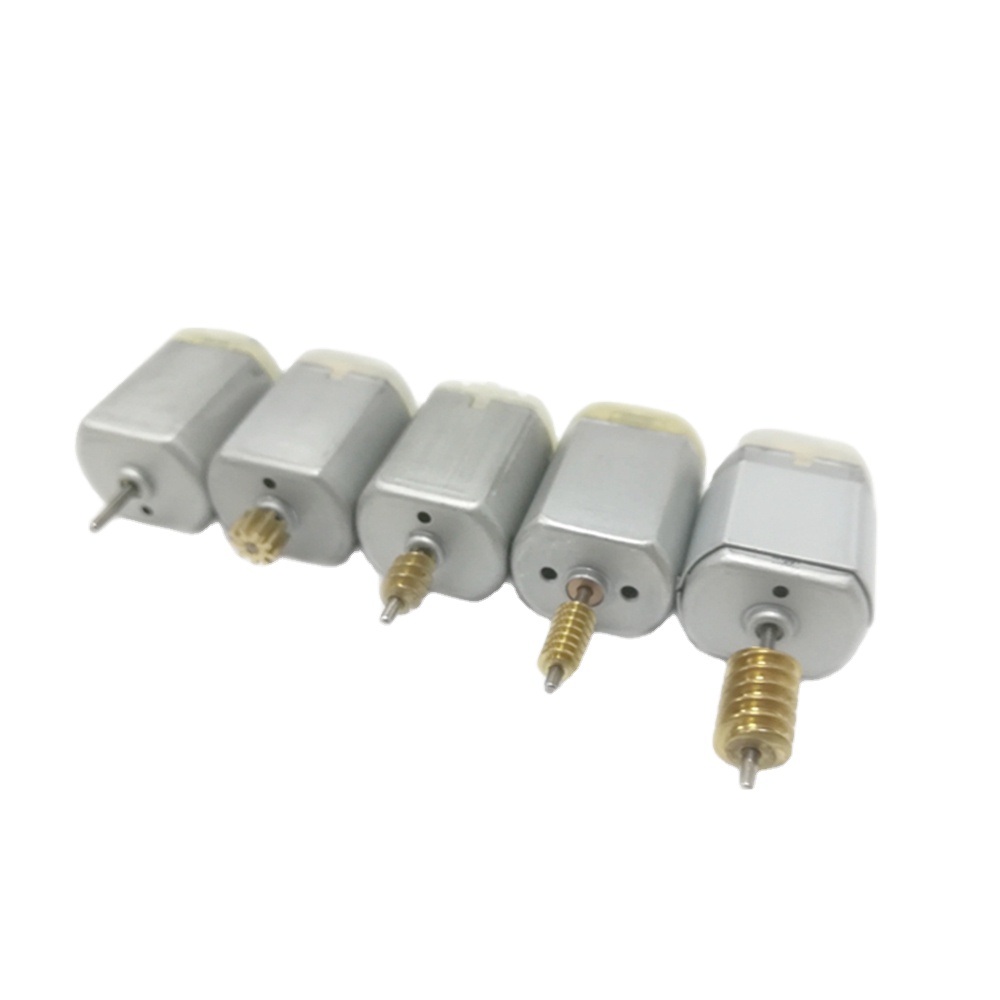

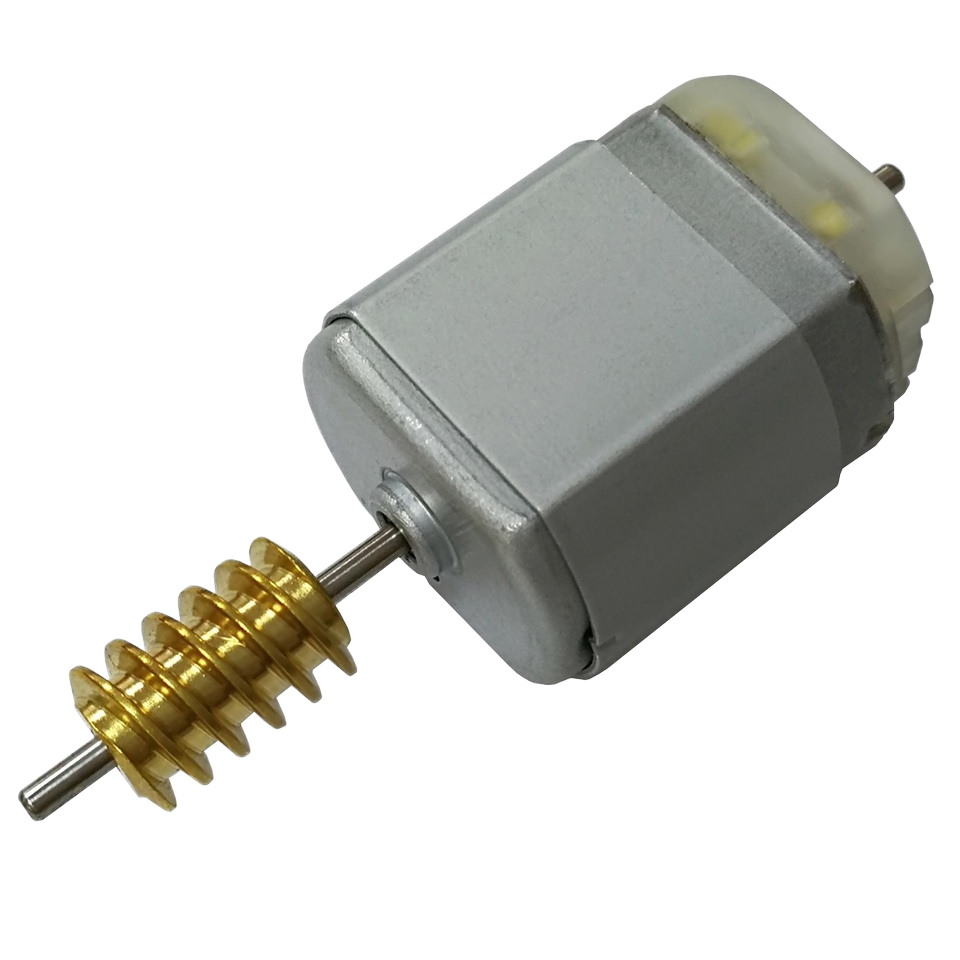

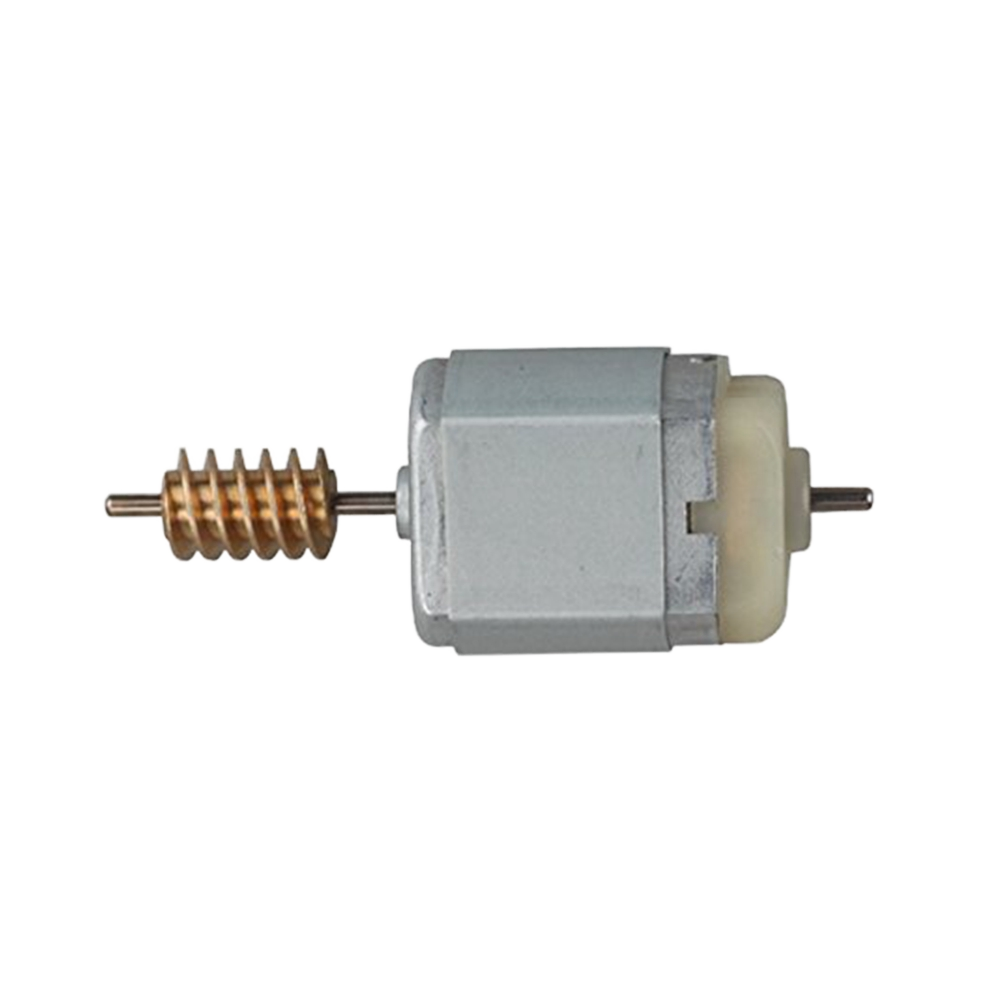

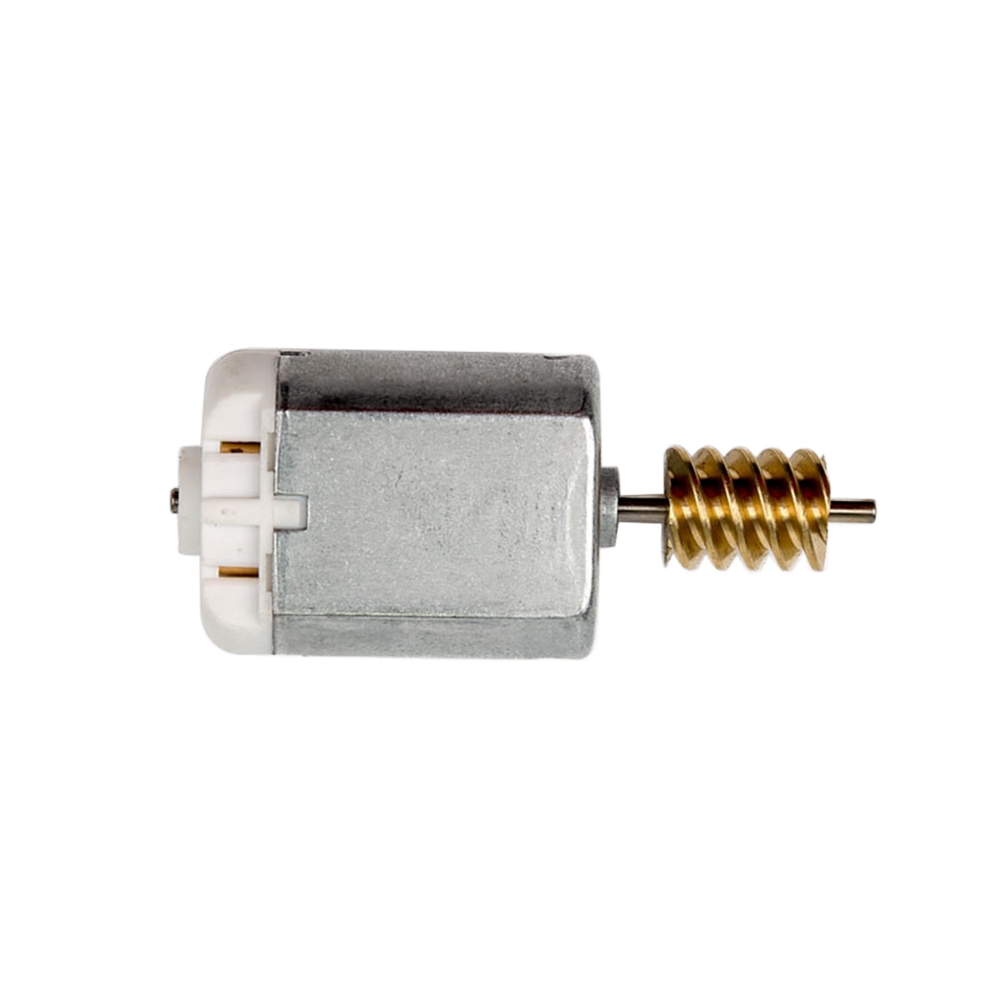

| FC-280SC-16240 | 8.0-16.0 | 12 | 10000 | 0.055 | 7780 | 0.33 | 3.27 | 2.32 | 2.0 | 23 |
