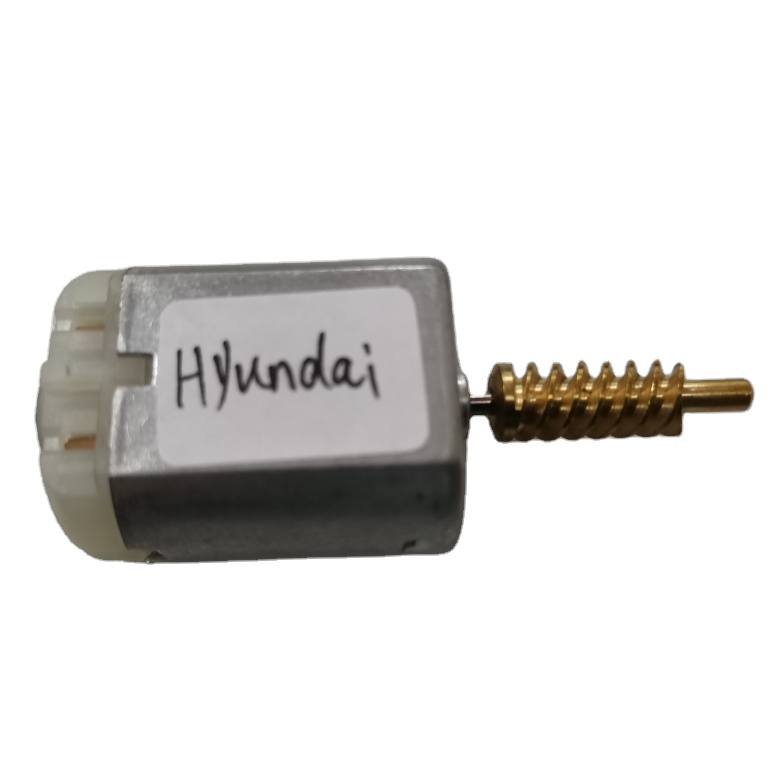

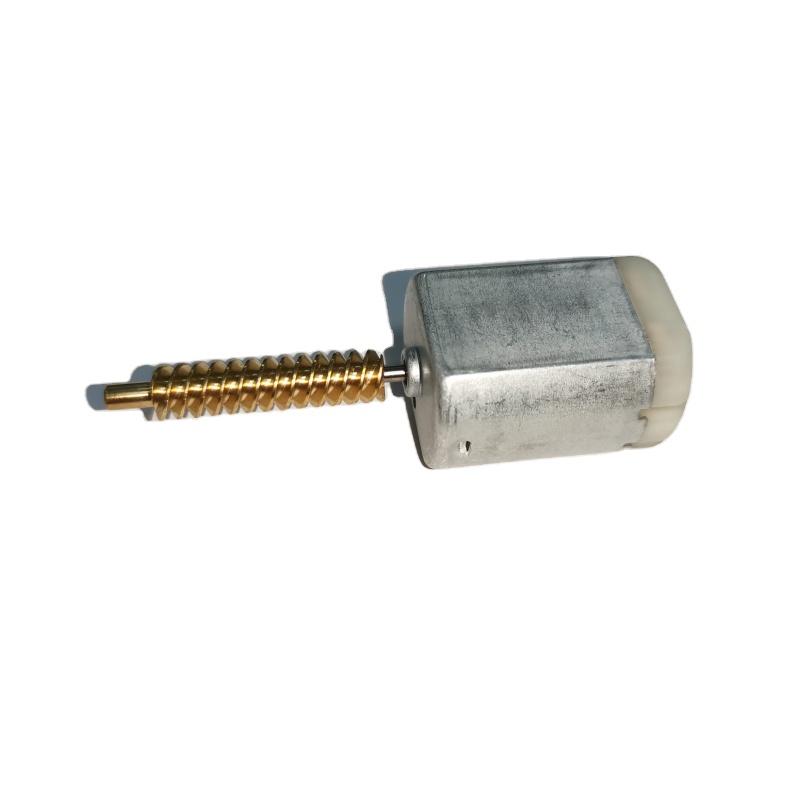

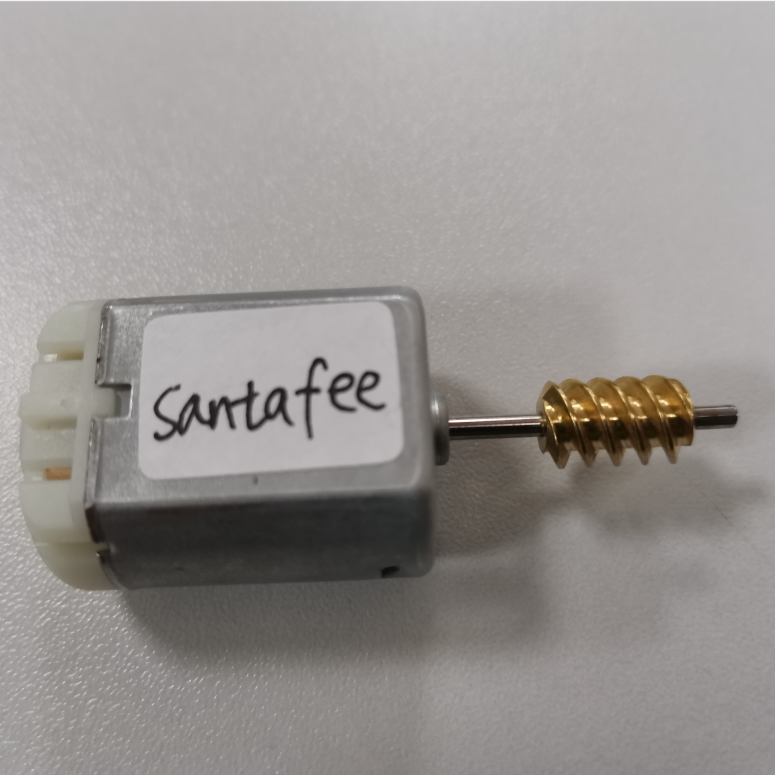

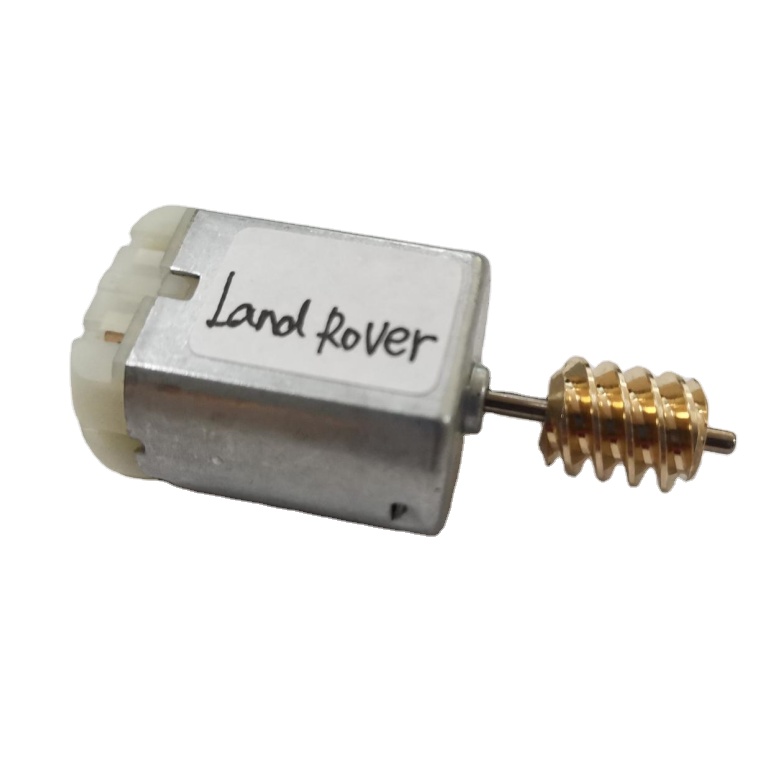

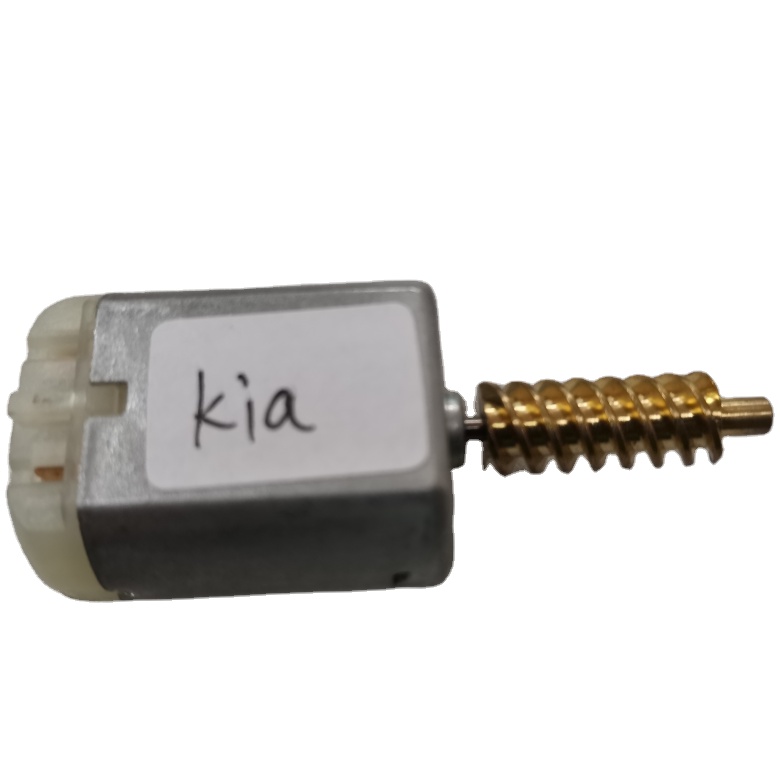

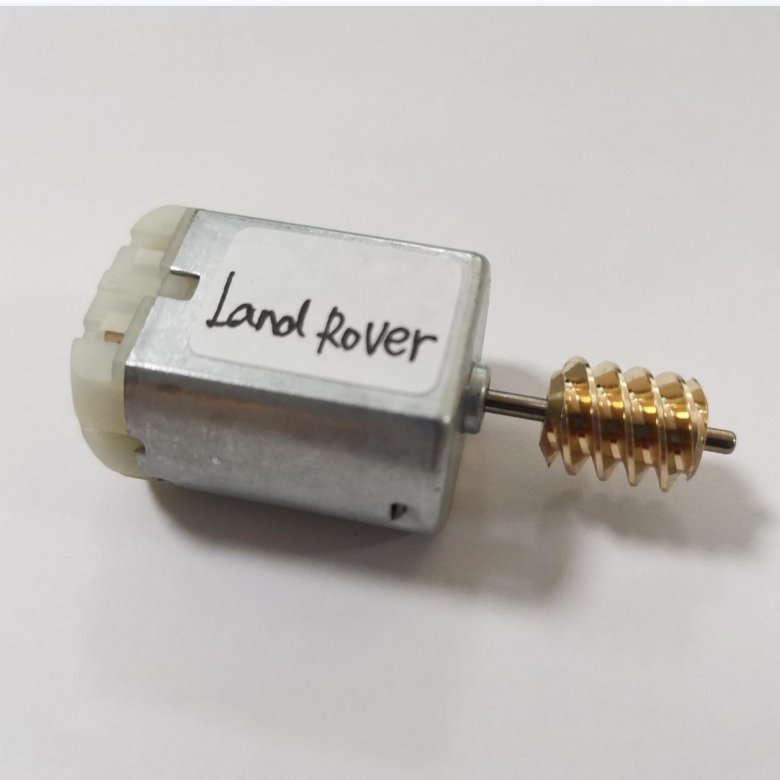

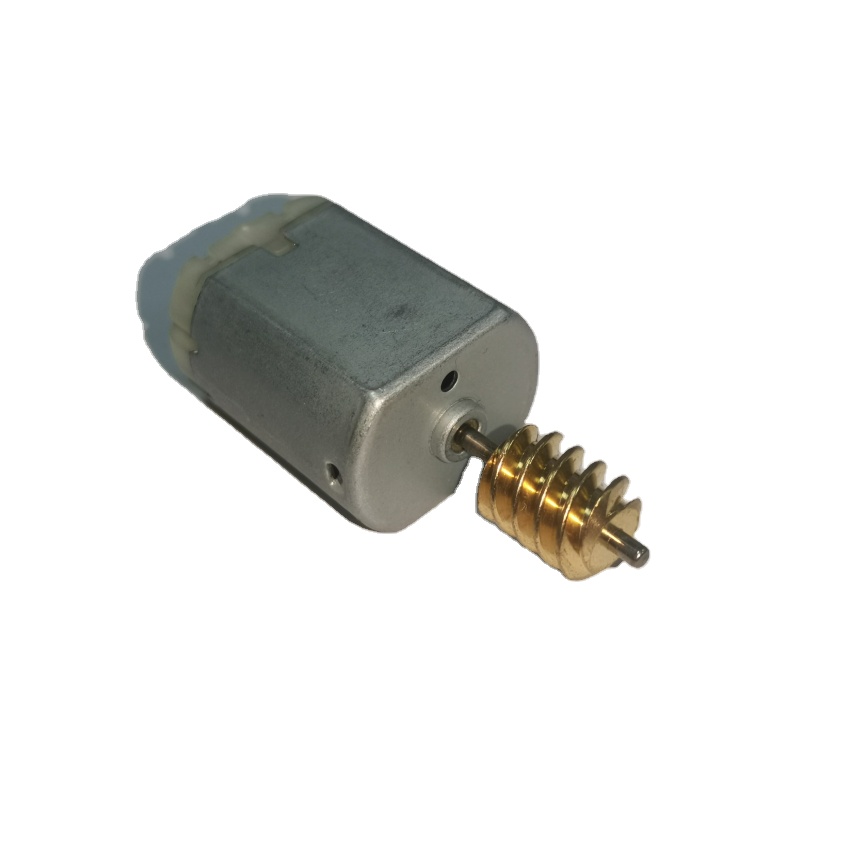

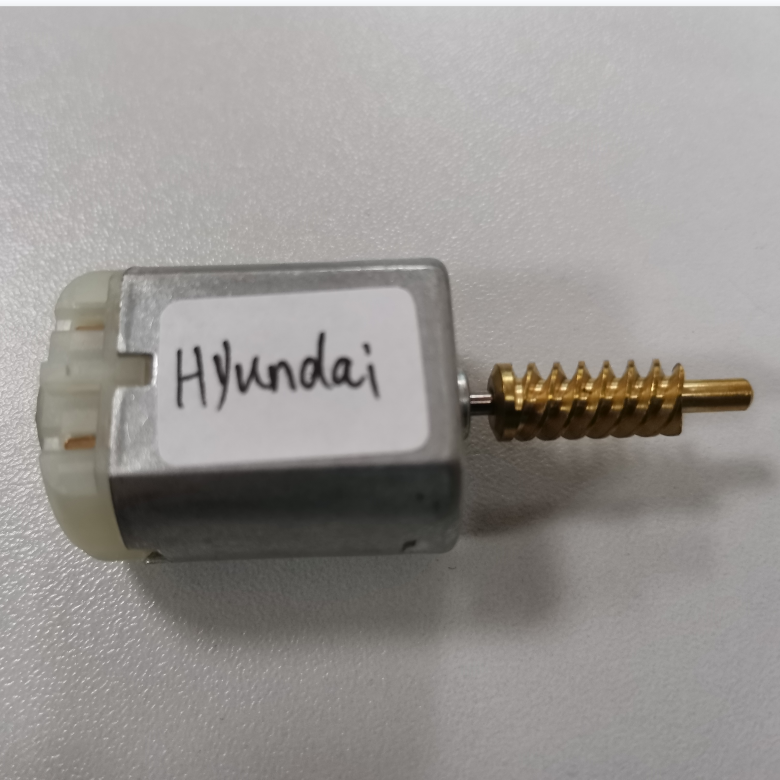

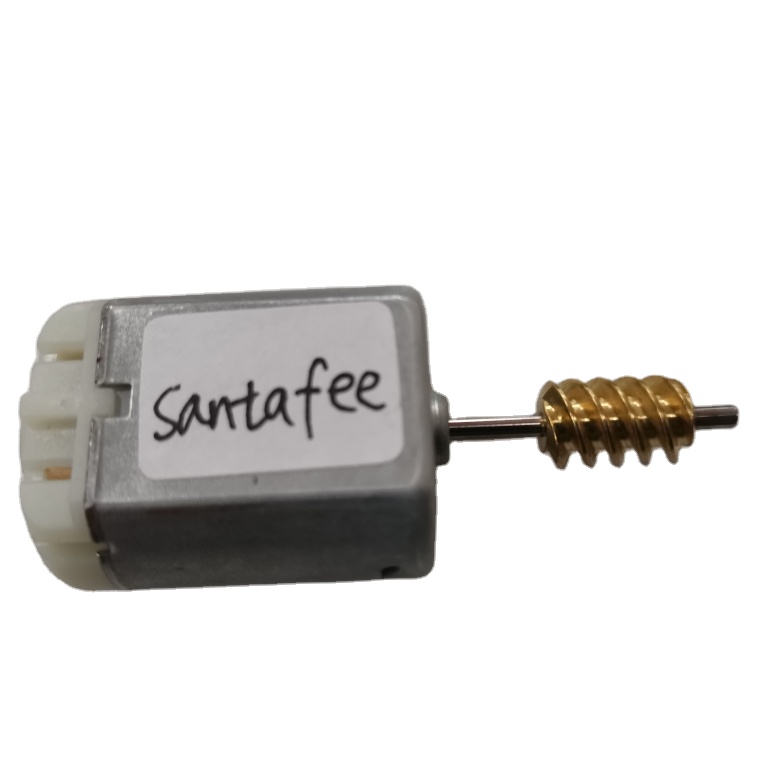

DC Worm Gear Motor For Door Lock Actuator
High Efficiency 65%~85% | Output 2~8W
Voltage Operating Range 8V~16V (Voltage Nominal 12V Constant)
Speed 3000~15000 RPM | Continuous Current 0.2A
Torque 0.01~0.1Nm
Size Diam 24mm x W18.3mm x L30.5mm
Typical Application For Automobile Door Lock Actuator
Worm gear can be customized as request
The DC Worm Gear Motor for Door Lock Actuator is a high-efficiency device with an output range of 2 to 8W, operating voltage range of 8V to 16V, and speed of 3000 to 15000 RPM. It features a broad voltage operating range with consistent performance characteristics and strong torque output.
The small size and low current consumption make it suitable for various applications, such as power tools, home appliances, medical equipment, small electric vehicles, and toys. Customization is available for the worm gear and performance data according to customer requirements.

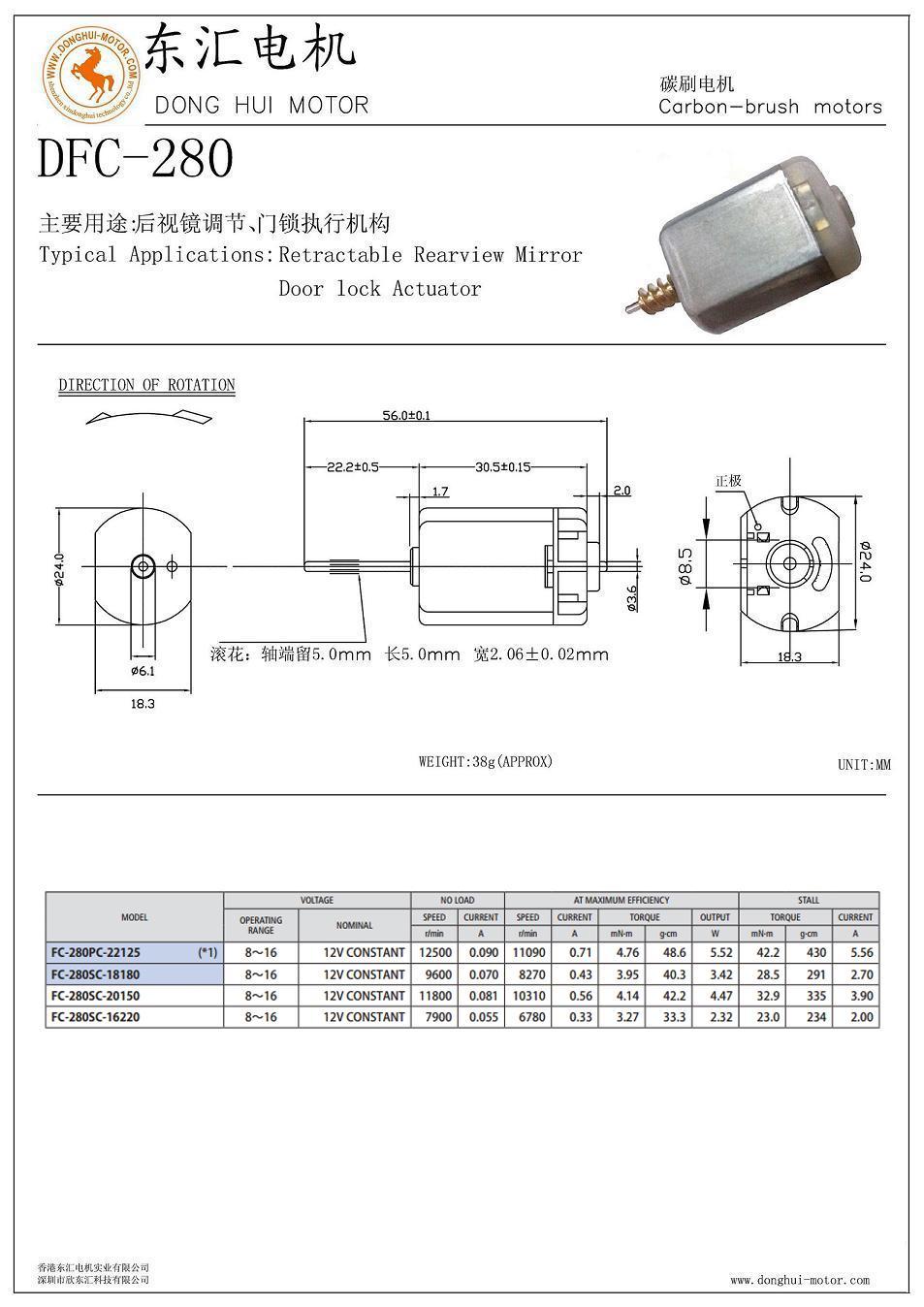

| Model Number | DFC-280SC-20150 |
| Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, central lock |
| Type | Worm Gear Motor |
| Construction | Permanent Magnet |
| Commutation | Brush |
| Protect Feature | Drip-proof |
| Efficiency | IE 1 |
| Size | Diam 24mm x W18.3mm x L30.5mm |
| No Load Current | 0.081A |
| No Load Speed | 11800RPM |
| Stall Torque | 335g.cm |
| Shaft Process | WORM |

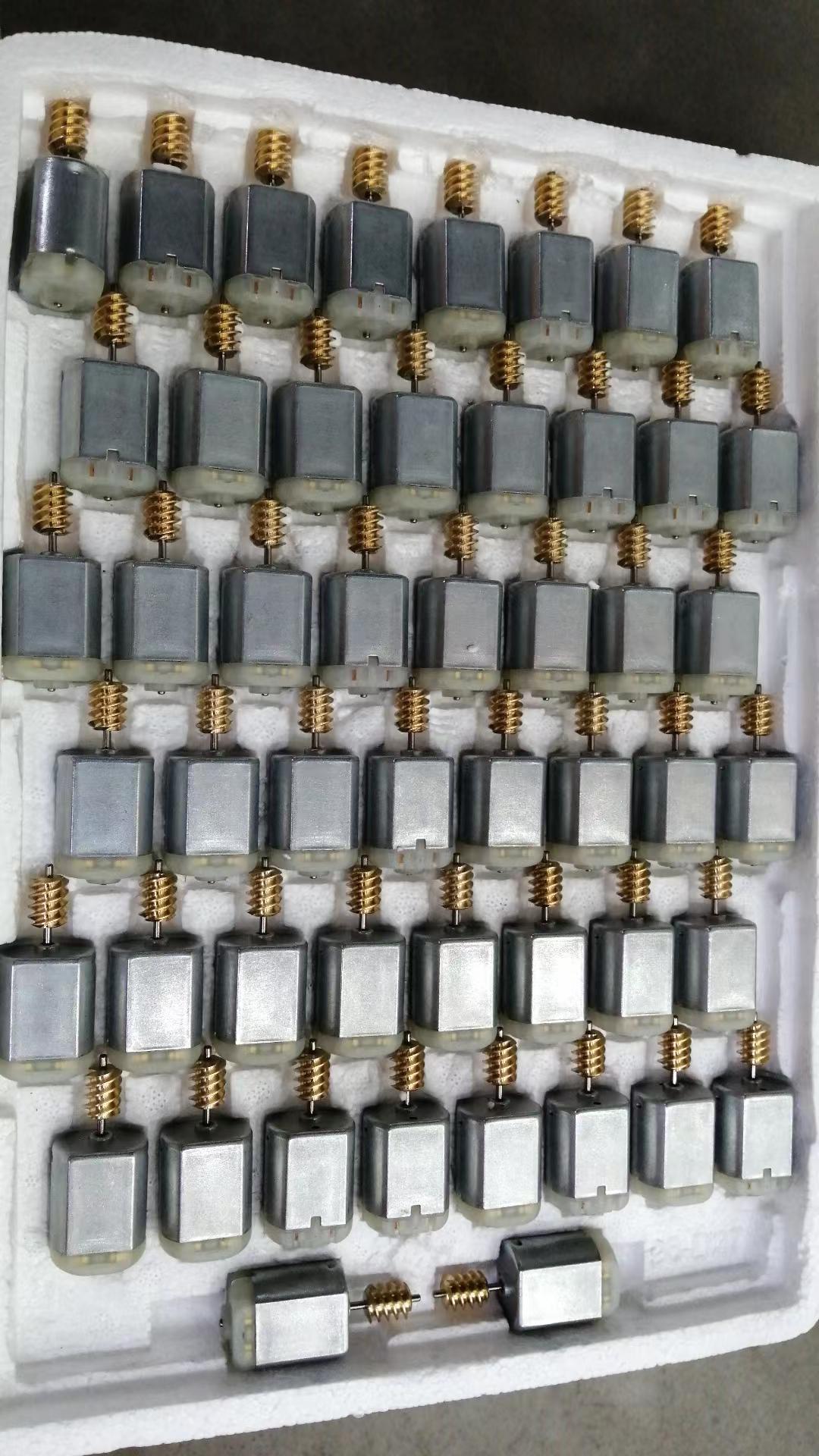

Packaging: Foam Box / EPE + Export Carton
Shipping:
Shipping Time: 3 working days for samples; 10-20 working days for bulk order.
Shipping Channel: Various channels available including express (UPS, DHL, FedEx, TNT) or sea/air for large quantities.
