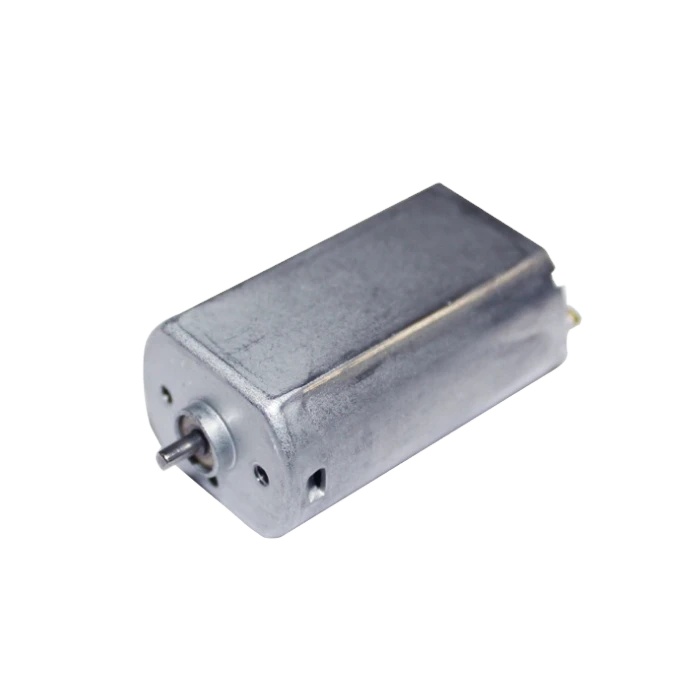

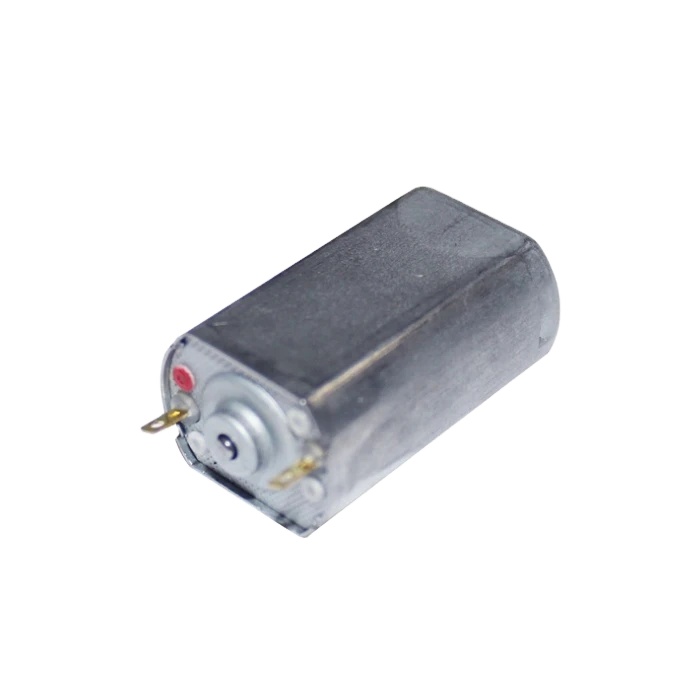

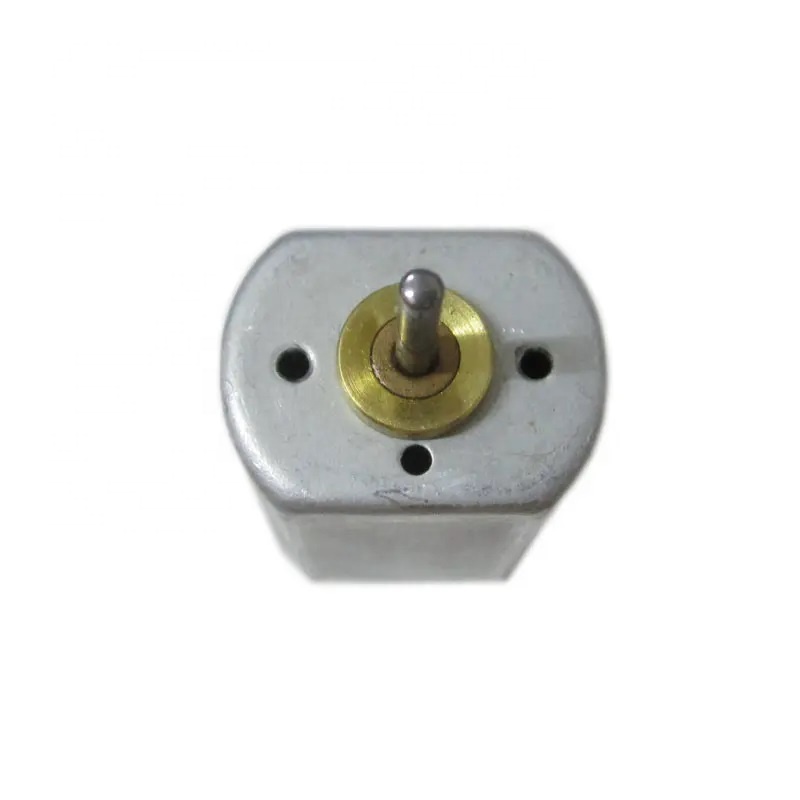

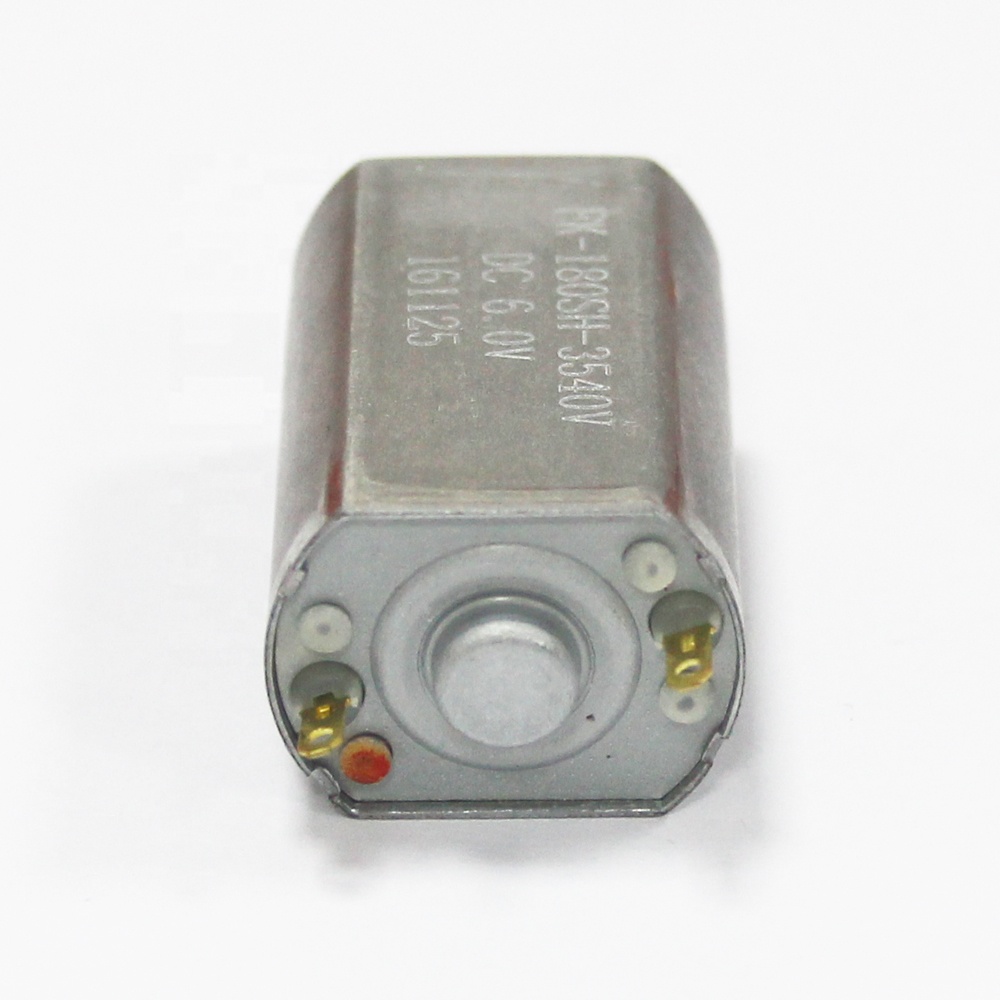

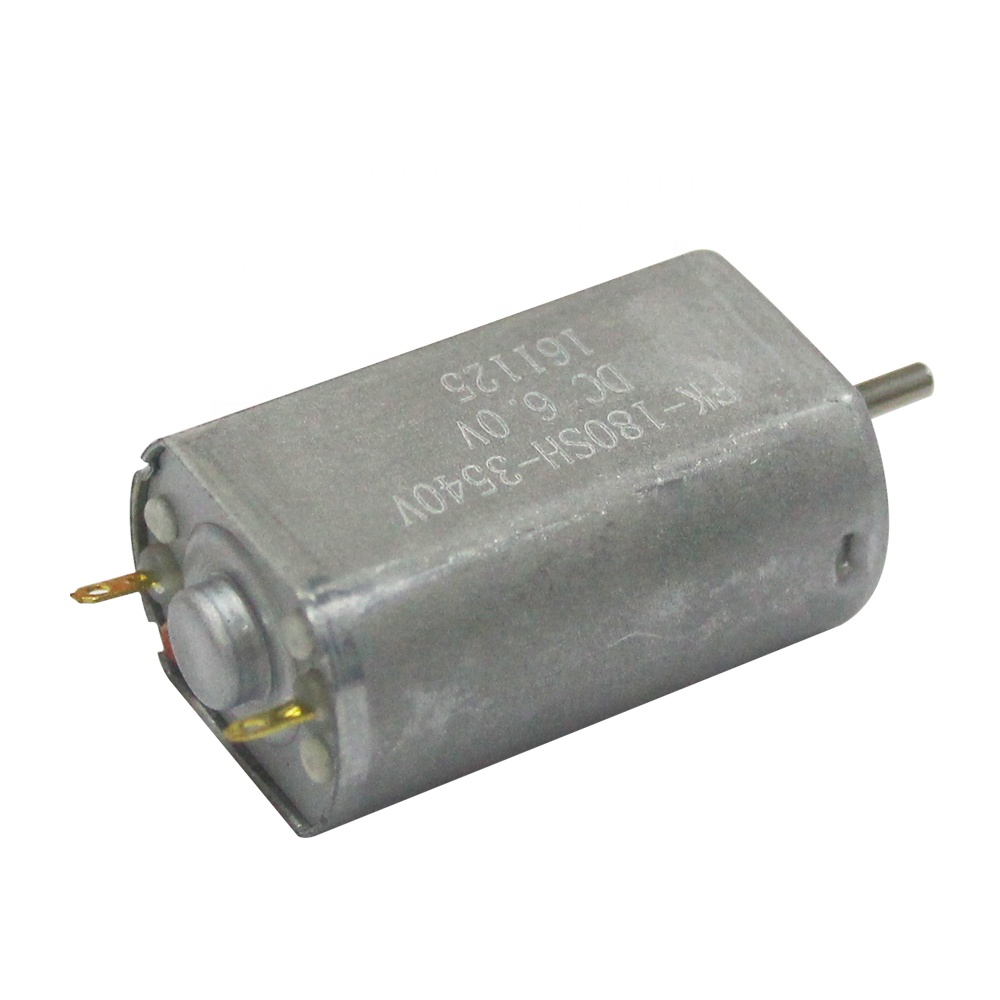

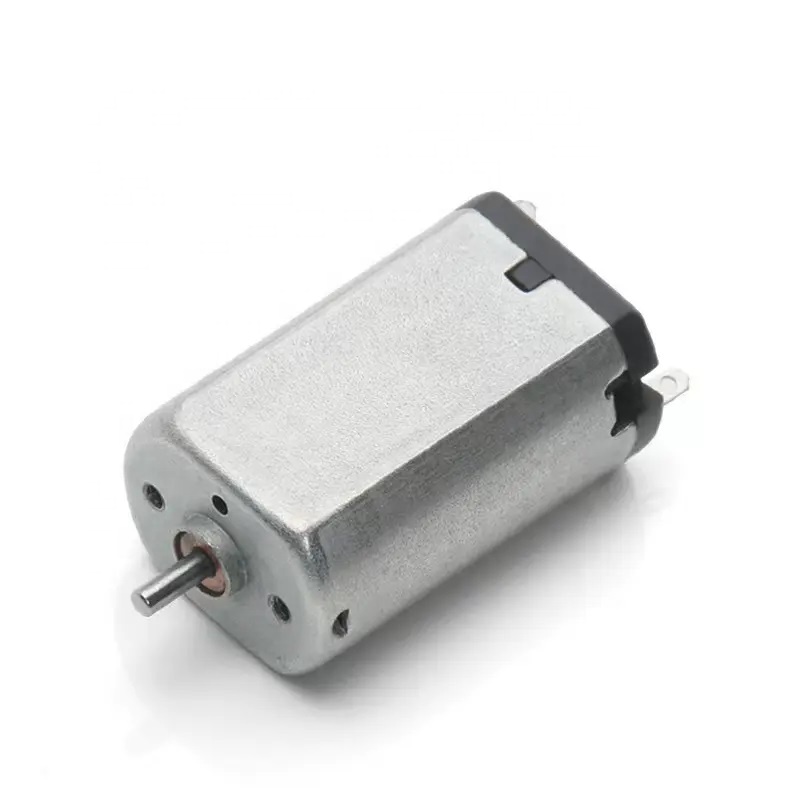

180 Electric Motor 4.5V 3000rpm Dc Motor for Electric Toys Motor

1 / 5

180 Electric Motor 4.5V 3000rpm Dc Motor for Electric Toys Motor

Send Inquiry

Product Description

Key Attributes

Speed: 3050rpm

Current: 0.32A

Efficiency: 55.3%

Low Noise: 35 dB

Product Description

180 electric motor 4.5V 3000rpm dc motor for electric toys brush motor

The 180 DC Motor features high efficiency and a compact design, specifically engineered for precision and reliability in small electronic devices. With a low noise level of 35dB, it ensures quiet operation for consumer products.

Features & Performance:

High Efficiency: 55.3%
Output Power: 0.32W
Rated Voltage: 4.5V
Stall Torque: 59g.cm
Customizable data details upon request

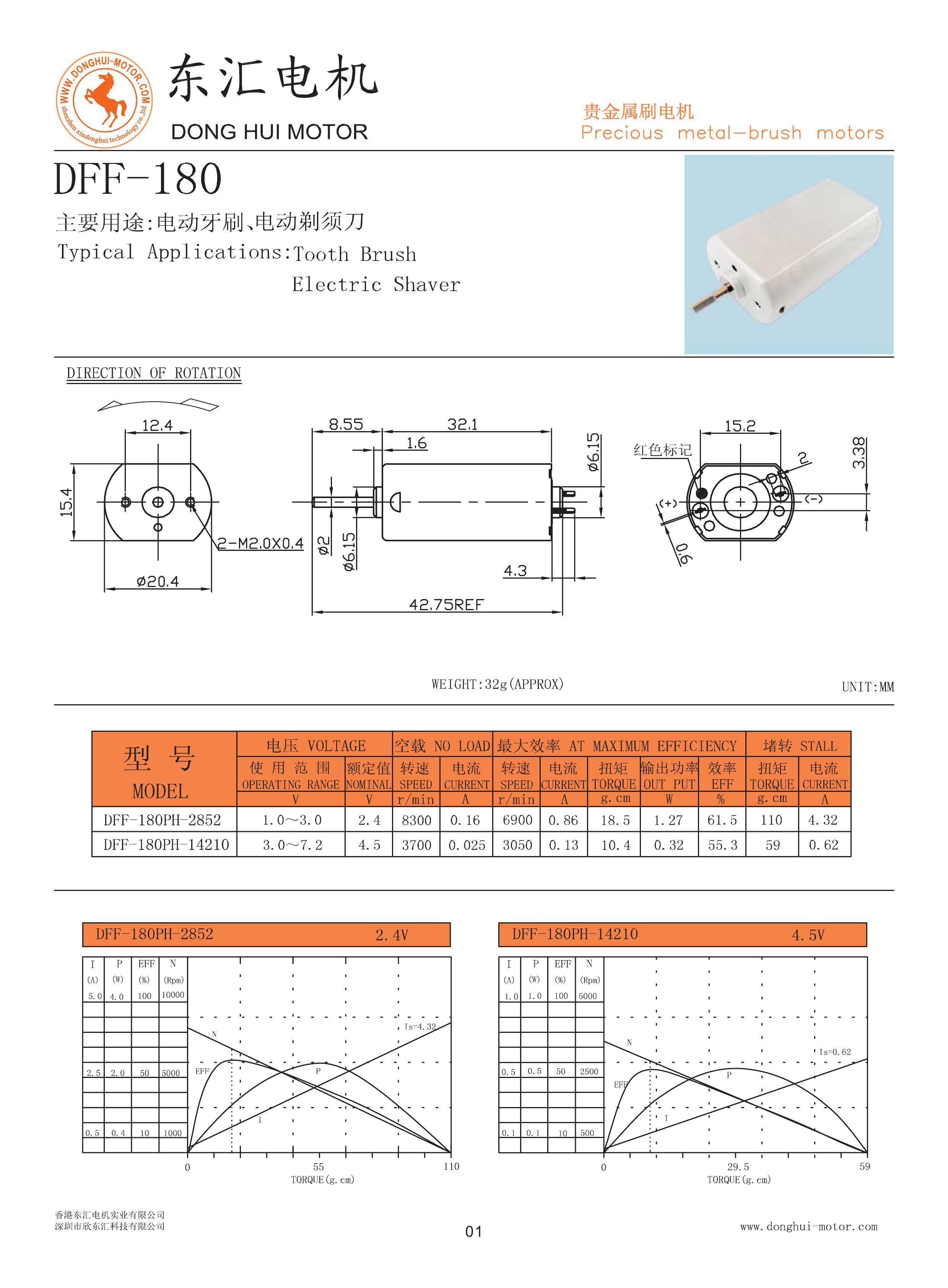

Technical Specifications

Model Number	DFF-180SH-14210
Size	Diam 20.4mm x W 15.4mm x L32mm
Shaft Diameter	2mm
Type	Micro DC Motor
Construction	Permanent Magnet
Commutation	Brush
Voltage Nominal	4.5V
Speed (Max efficiency)	3050 rpm
Current (Max efficiency)	0.13A
Torque (Max efficiency)	10.4g.cm
Stall Torque	59g.cm
Stall Current	0.62A
Threaded Hole	2-M2.0 x 0.4

Typical Applications

The 180 electric motor is versatile and widely used in various smart devices and consumer electronics:

Electric Toothbrushes

Electric Shavers

Electric Toys

Electronic Locks

Packing & Delivery

Packaging: Foam Box / EPE + Export Carton

Delivery: 2-3 working days for samples. Shipping via DHL, UPS, FedEx, or Sea.

Frequently Asked Questions

What are the main applications for this 180 motor?

It is widely used in aviation, medical tools, robotics, automation, security doors, and consumer electronics like electric toothbrushes and toys.

Do you accept customized orders?

Yes, we accept ODM. Our R&D team can customize voltage, speed, torque, and overall dimensions based on your specific requirements.

What information should I provide for a customized request?

Please provide the required operating voltage, speed, torque, and the physical space constraints (dimensions) of your application.

Are samples available for testing?

Yes, samples are available. The sample preparation usually takes 3-7 workdays depending on the model type.

What is the standard lead time for bulk orders?

Typically, bulk orders take between 15 to 25 workdays after order confirmation and deposit.

How are the motors protected during shipping?

We use specialized Foam Box or EPE (Expandable Polyethylene) packaging inside standard export cartons to ensure the motors are protected from vibration and impact.
