Product Description

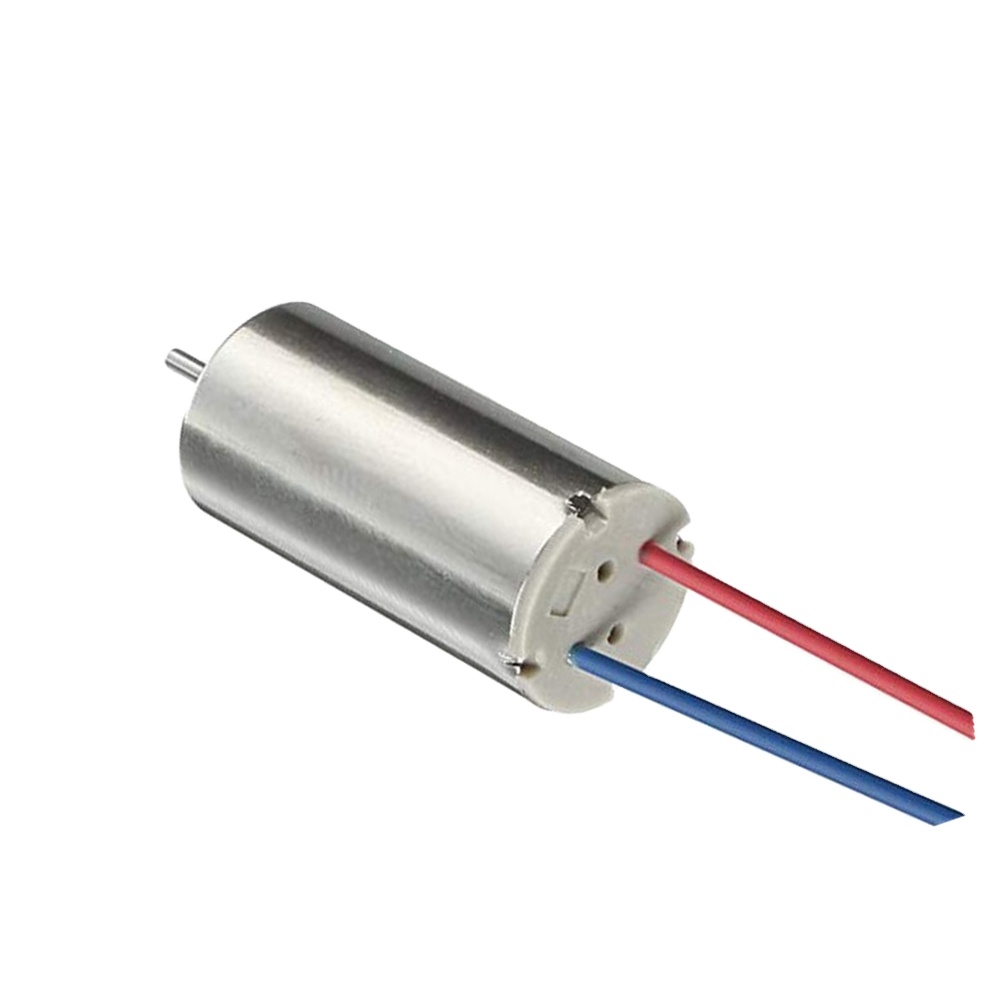

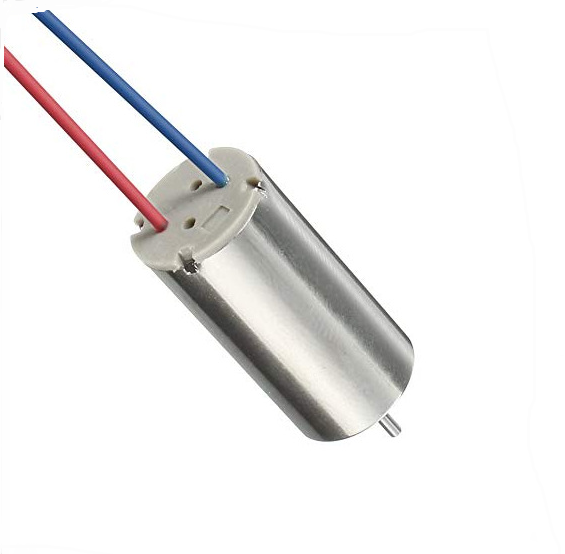

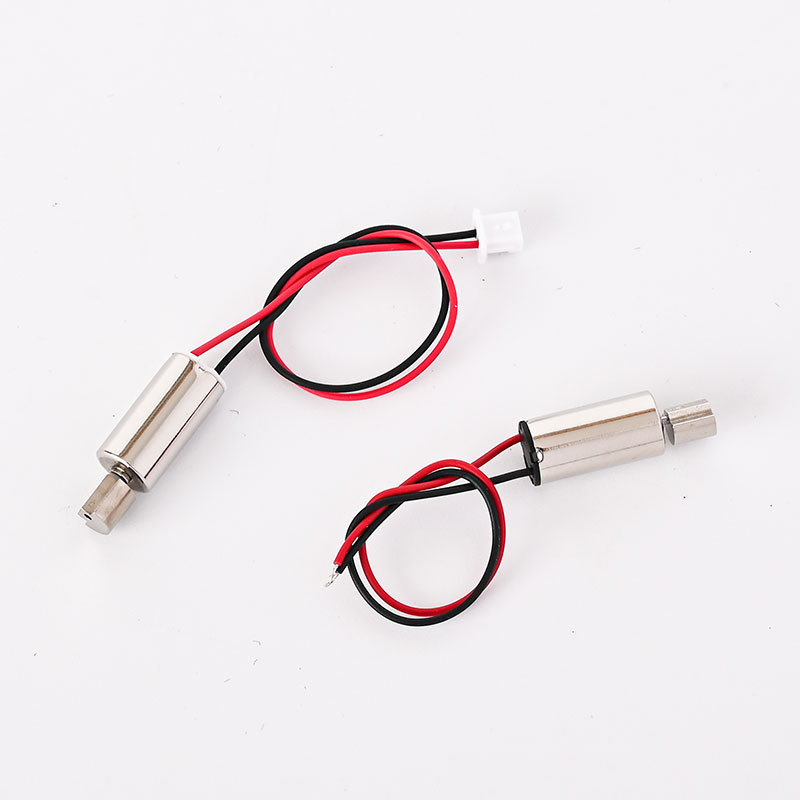

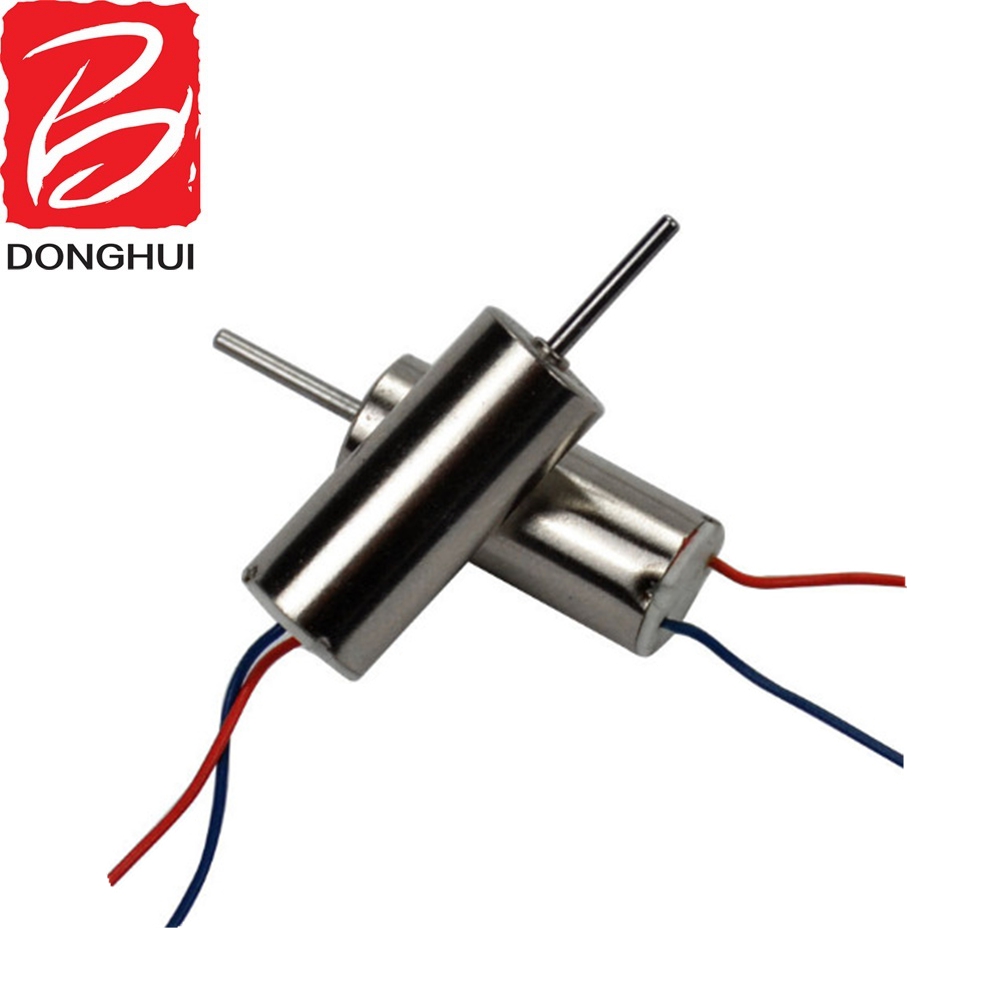

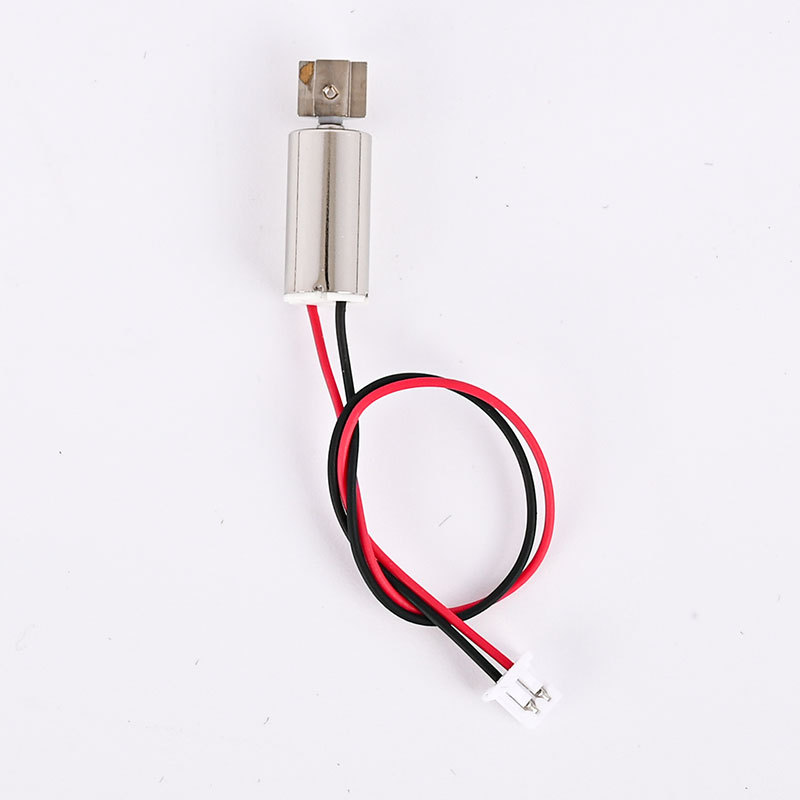

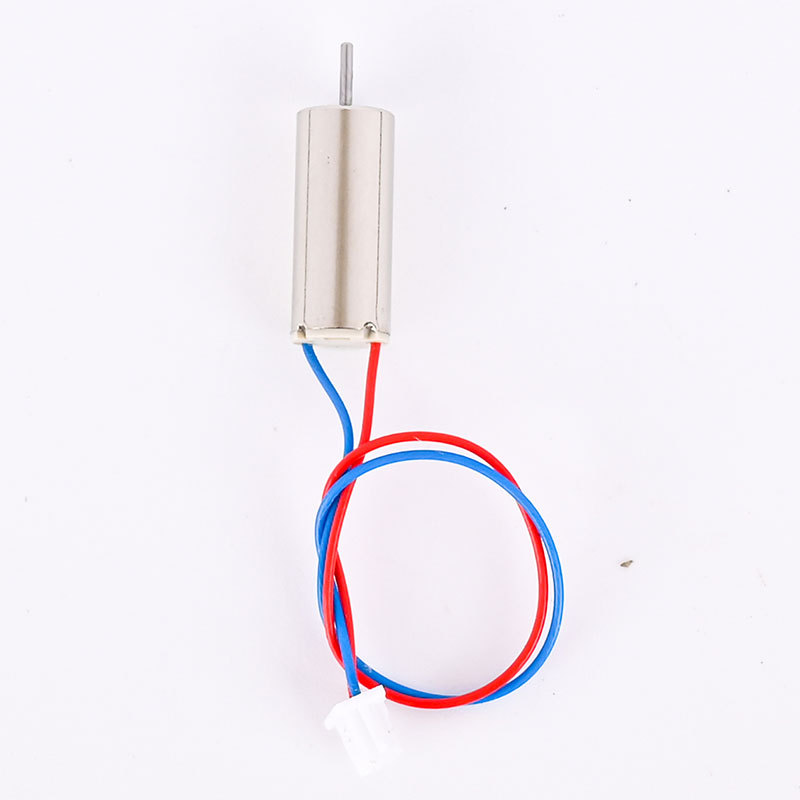

DCL-0716 7mm 3.7v Mini Drone Motor
⚙️ Specification Details:

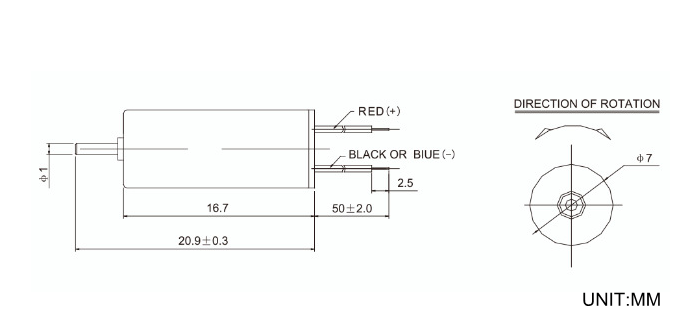

| Size |
D7mm*L16mm |
| Voltage |
1.5V, 3V, 3.7V, 4.5V |
| Unload Speed |
8000-50,000rpm |
| Torque |
≤0.8mNm |
| Stall Current |
≤1A |
| Efficiency |
85% |
| Application |
Aeromodel, Sexy care, massager, beauty equipment |
🛠️ Customization Service:
Motor's voltage, speed, current, torque, screw length, and shaft length can be fully customized to meet your specific requirements.
| Model |
Voltage |
No-load |
At Max Efficiency |
Stall |
| Operating Range(V) |
Nominal(V) |
Speed(RPM) |
Current(A) |
Speed(RPM) |
Current(A) |
Torque(g.cm) |
Output(W) |
Current(A) |
Torque(g.cm) |
| DCL-0716-13230 |
1.2-2.4 |
1.5 |
21000 |
0.056 |
15430 |
0.15 |
0.7 |
0.11 |
0.43 |
2.53 |
| DCL-0716-11340 |
2.4-4.5 |
3 |
23000 |
0.027 |
17390 |
0.08 |
0.7 |
0.38 |
0.26 |
2.96 |
| DCL-0716-09450 |
1.5-4.2 |
3.7 |
50000 |
0.075 |
40000 |
1.5 |
13 |
2 |
4.4 |
36 |
Frequently Asked Questions
What are the primary applications for the DCL-0716 motor?
The DCL-0716 7mm motor is widely used in aeromodels (mini drones), massagers, beauty equipment, and personal care products.
Can I request a customized shaft or voltage for this motor?
Yes, we provide full customization for voltage, speed, current, torque, screw length, and shaft length to fit your specific design.
What is the maximum speed this mini motor can reach?
Depending on the model and voltage configuration, the unload speed can reach up to 50,000 RPM.
What is the efficiency rating of the DCL-0716 motor?
This motor series is designed for high performance with an efficiency rating of approximately 85%.
What operating voltages are available?
Standard operating voltages include 1.5V, 3V, 3.7V, and 4.5V, covering a range of battery-operated applications.
Does the motor include stall protection parameters?
The stall current is typically maintained at ≤1A to ensure safety and durability during operation.
