12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
1 / 4
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor
12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor

12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v High Speed Bldc Motor Coreless Motor

Send Inquiry

Product Description

Coreless Motor Banner
Product Specifications

12mm 16mm 17mm 20mm 22mm 24mm 30mm 6v 12v high speed bldc motor coreless motor.

✓ NMB Ball Bearing
✓ Nd-Fe-B Magnet
✓ High Efficiency
✓ High Power Density
Technical Data: 16mm Coreless Motor
Parameter Specifications
Product nameCoreless motor
UsageFan, Home Appliance, toys, medical equipment
TypeMicro Motor
Torque23mNm
ConstructionPermanent Magnet
CommutationBrushless
Protect FeatureDrip-proof
Speed(RPM)22000rpm no load
Continuous Current(A)0.64A no load
Output Power13W
Voltage(V)12V
EfficiencyIE 1
Rated load speed19500rpm
Rated load torque2.6 mNm
Starting torque23mNm
Starting current4.6A
Motor Length36±0.5mm
Shaft Dia2.0mm
Shaft lengthCustomizable

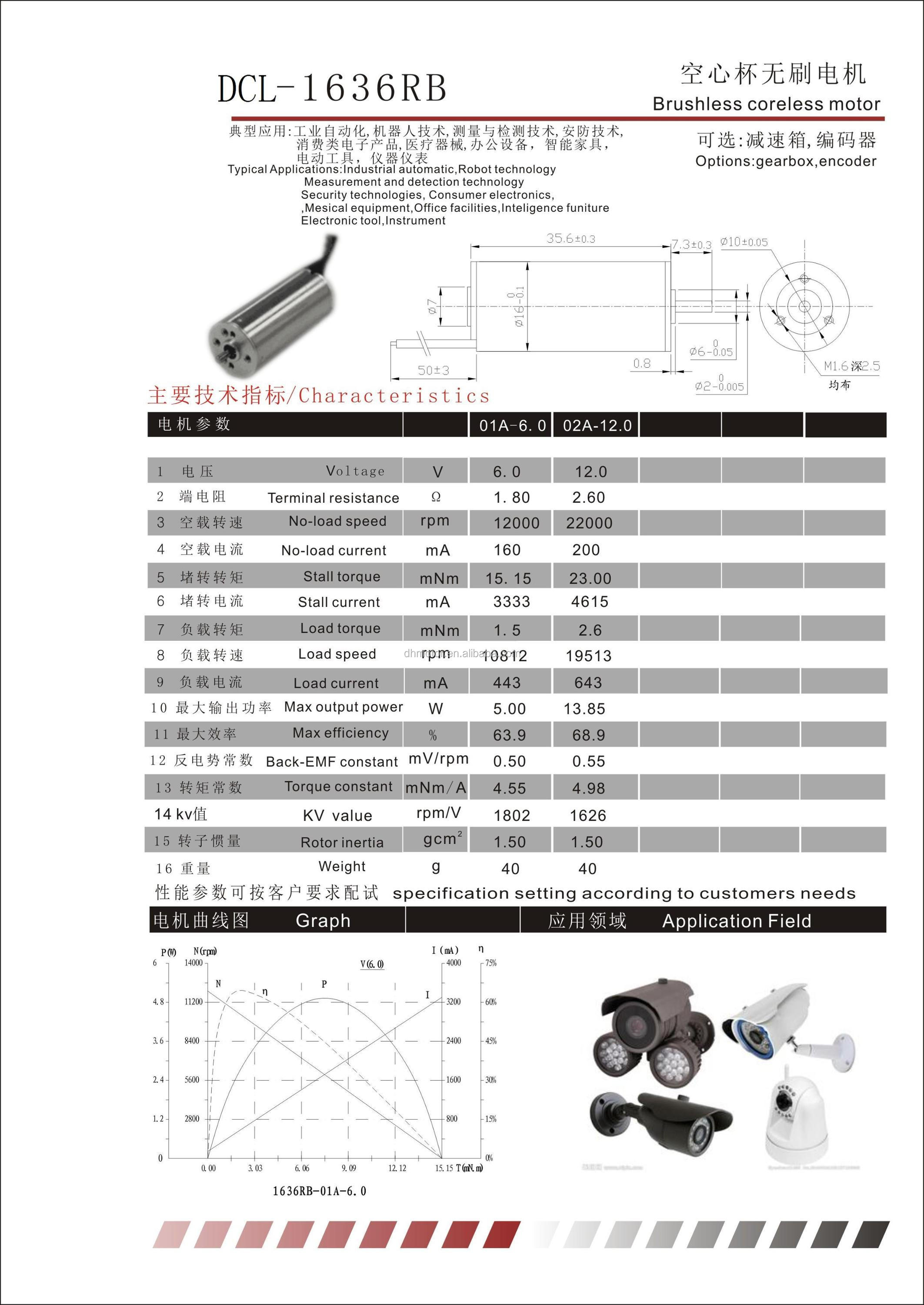

Coreless Motor Technical Drawing

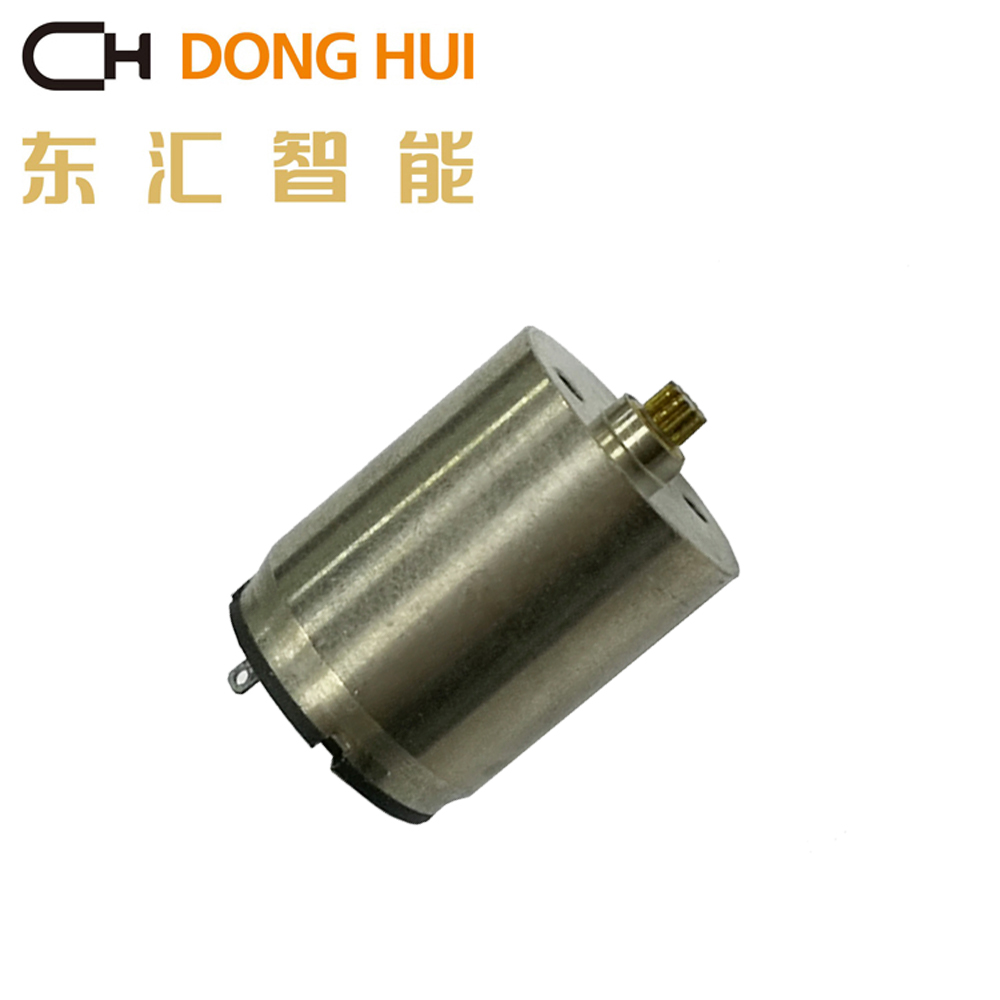

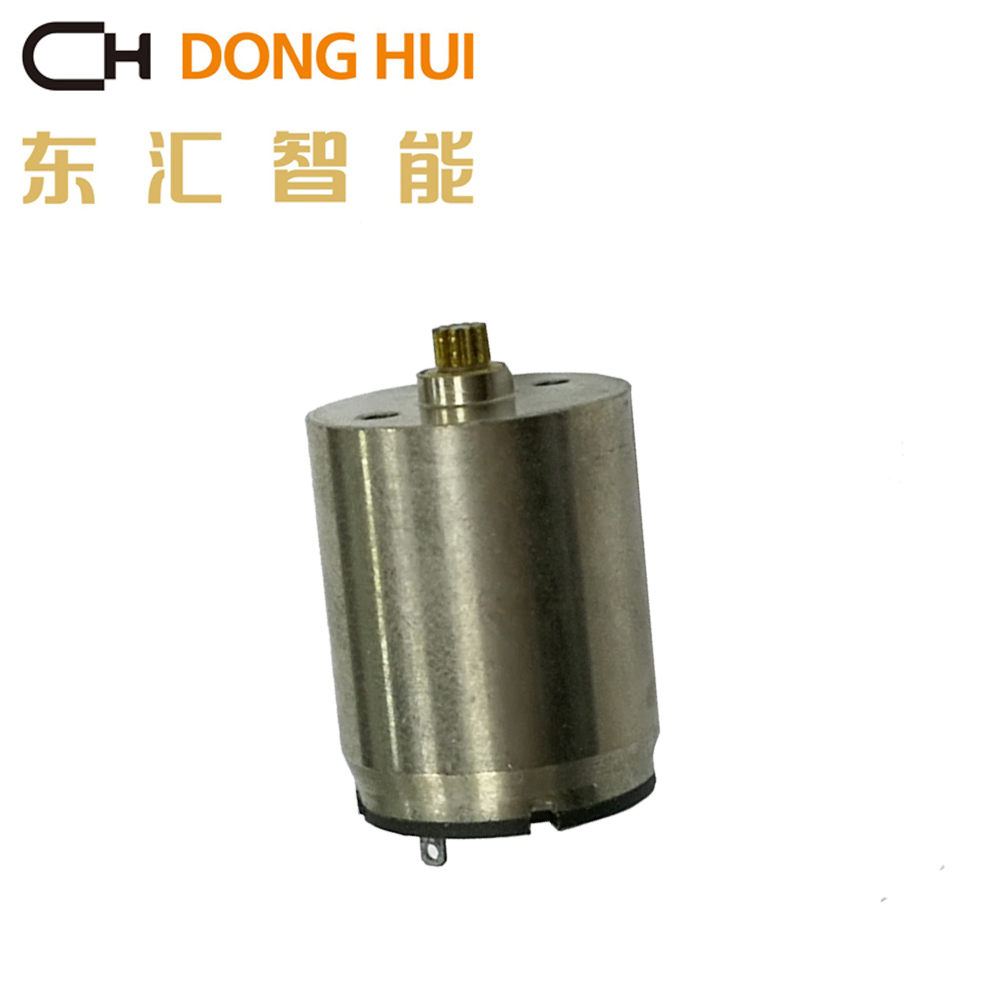

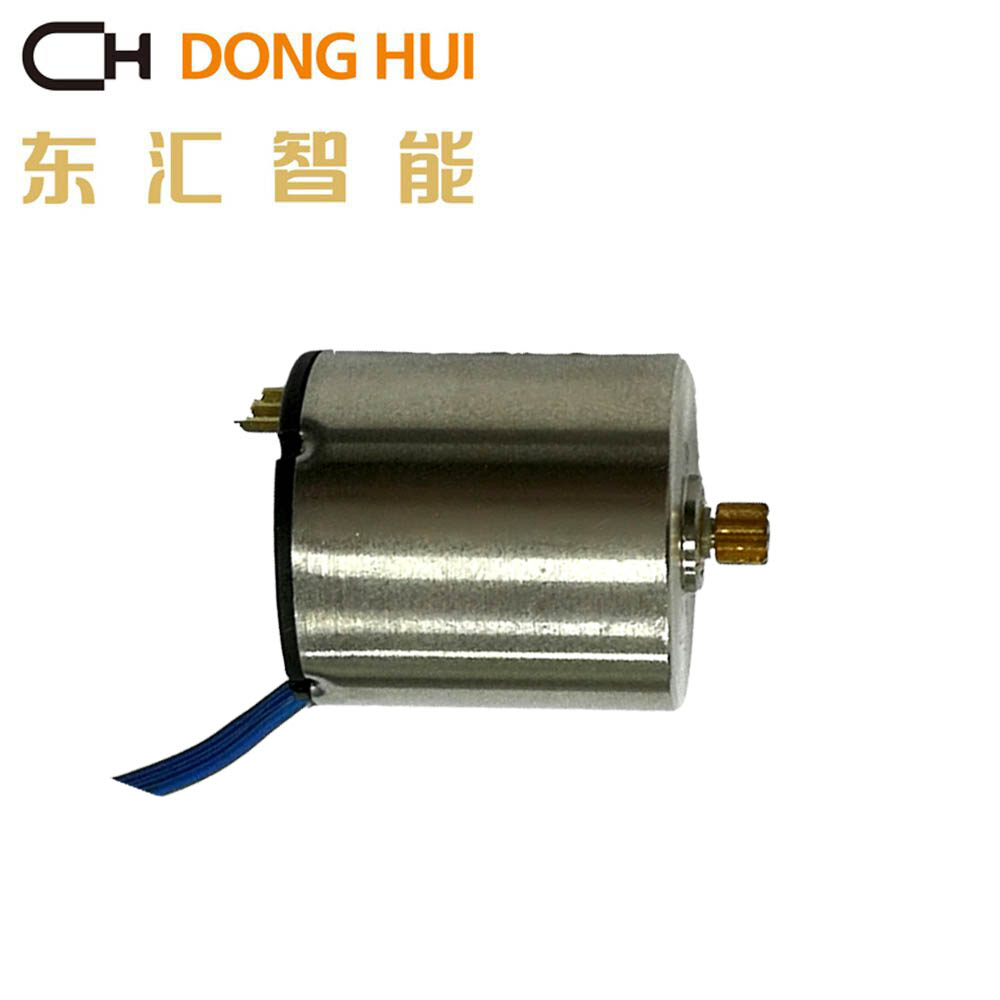

Motor View 1 Motor View 2 Motor View 3
Packaging & Shipping
Packaging Detail 1. Export standard packing; 2. Factory standard packing; 3. Customizable based on request.
Delivery Detail 15 days for samples, 25-30 days for batch orders.
Our Services
Quality Service
Production Capability
Production Facility 1 Production Facility 2 Production Facility 3
Frequently Asked Questions
Q1: What are your main products?
Answer: Dia10~52mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Brushless DC motor, Spur Gear motor, Vibration motor, etc.
Q2: What is the main usage of the micro dc gear motor?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems, automation industry, and electronic tools.
Q3: Do you accept customization?
Answer: Yes. With a strong design team, we can customize specifications to meet your technical requirements.
Q4: What kind of data do I need to provide for an order?
Answer: Please provide your required voltage, speed, torque, and overall dimensions.
Q5: What if I don't know the required motor specifications?
Answer: Please contact our sales team. We will guide you through the selection process and answer your questions patiently.
Q6: What is the standard lead time for production?
Answer: Generally, samples take about 15 days, while batch production takes approximately 25-30 days depending on the order volume.
