Product Description
| Place of Origin: |
Guangdong China (Mainland) |
Model Number: |
RS-380 |
| Usage: |
Boat, Car, Electric Bicycle, Fan, Home Appliance |
Type: |
Micro Motor |
| Torque: |
635 G.cm |
Construction: |
Permanent Magnet |
| Speed(RPM): |
14550 rpm |
Commutation: |
Brush |
| Output Power: |
15W |
Voltage(V): |
12v |
| Shaft: |
2.3MM D-cup shaft |
Weight: |
80g |
| Efficiency: |
IE 1 (58.3%) |
No load speed: |
17400rpm |
Key Specifications & Features
High-speed RS-380 DC electric motor, ideal for vacuum cleaners and household appliances requiring low noise and high torque performance.
✓Low noise, high torque, and long-life operation.
✓Wide Voltage Range: 3V-12V support.
✓Compact Size: Diameter 27.7mm, Length 38mm.
✓Output Power: Approximately 1W ~ 35W.
✓Certification: CE, ROHS, ISO9001:2000 compliant.
✓Rotation: Supports both CW (Clockwise) & CCW (Counter-Clockwise).
Packaging & Shipping
| Packaging Detail: |
International standard packaging, factory standard, or customized per customer requirement. |
| Delivery Detail: |
Lead time typically less than 30 days. |

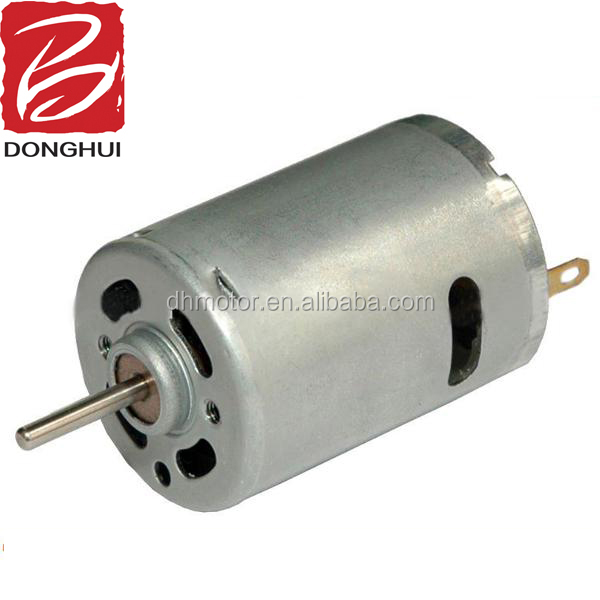

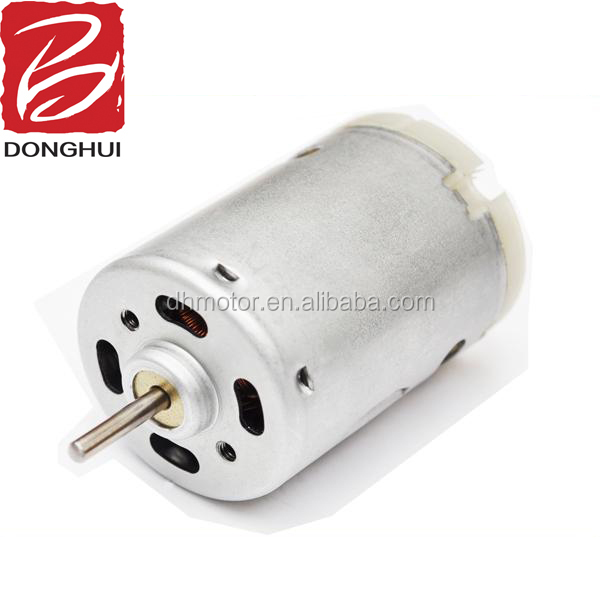

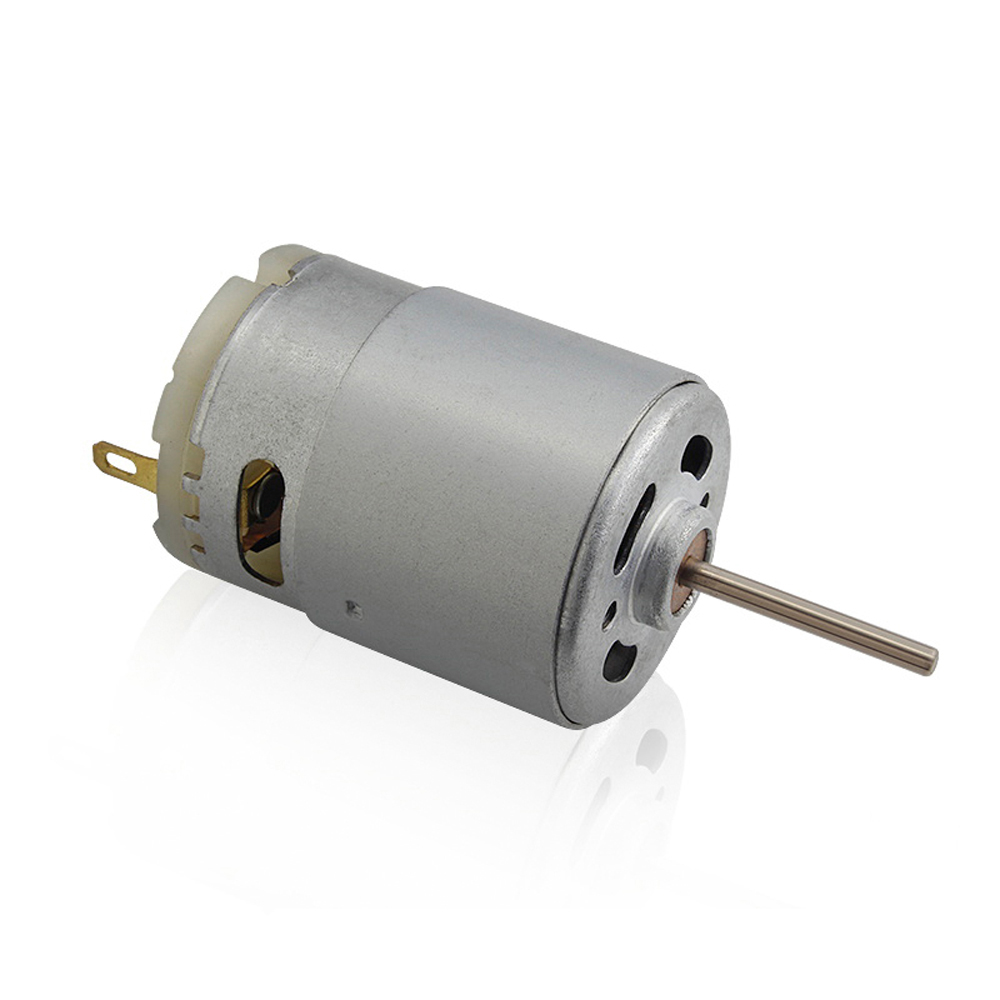

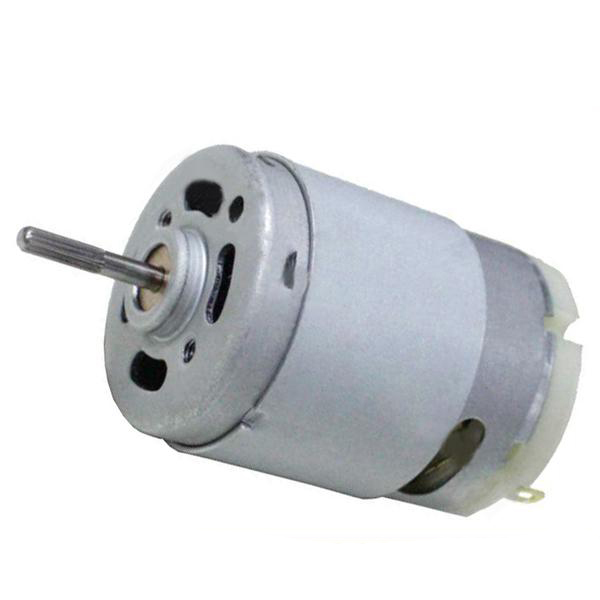

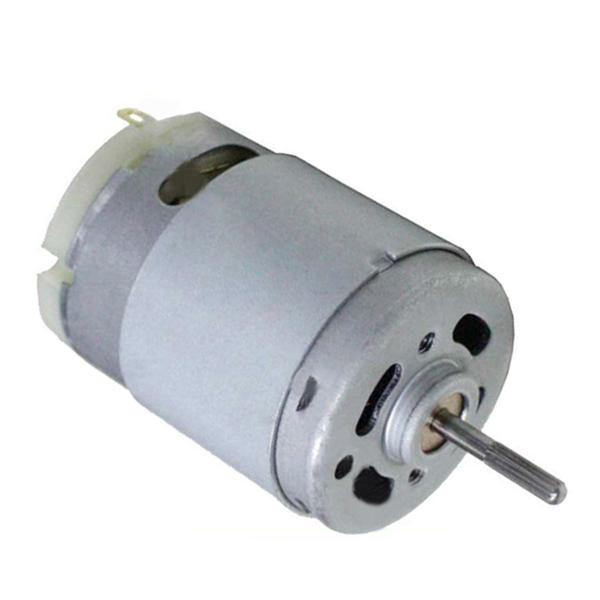

Product Visuals
Factory Capability
Since establishment in 2003, we have been committed to the development and production of micro motors, including Micro DC motors, DC gear motors, coreless motors, and brushless motors. Our products are widely utilized in consumer electronics, toys, household appliances, and automotive fields.
1. What is the standard voltage for the RS-380 motor?
The motor typically operates at 12V, but it can be used within a range of 3V to 12V DC depending on your application requirements.
2. Can the shaft length and motor specifications be customized?
Yes, motor specifications and shaft length can be tailor-made according to specific customer requirements.
3. What are the typical applications for this micro motor?
It is commonly used in household appliances like vacuum cleaners, massagers, vibrators, and air compressors, as well as in electric toys and models.
4. Does the motor support bi-directional rotation?
Yes, the RS-380 motor supports both CW (Clockwise) and CCW (Counter-Clockwise) directions of rotation.
5. What certifications do your motors hold?
Our motors are compliant with CE, ROHS, and ISO9001:2000 standards, ensuring high quality and safety.
6. What is the expected delivery time for an order?
Standard orders are typically delivered within 30 days, depending on the volume and customization needs.
