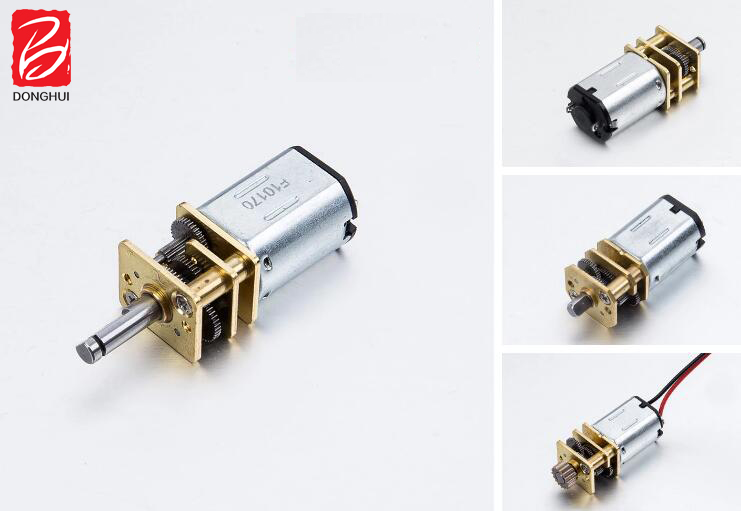

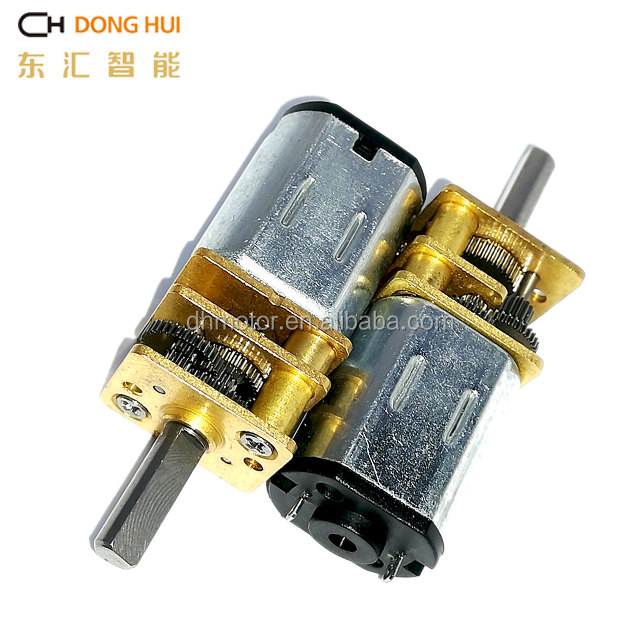

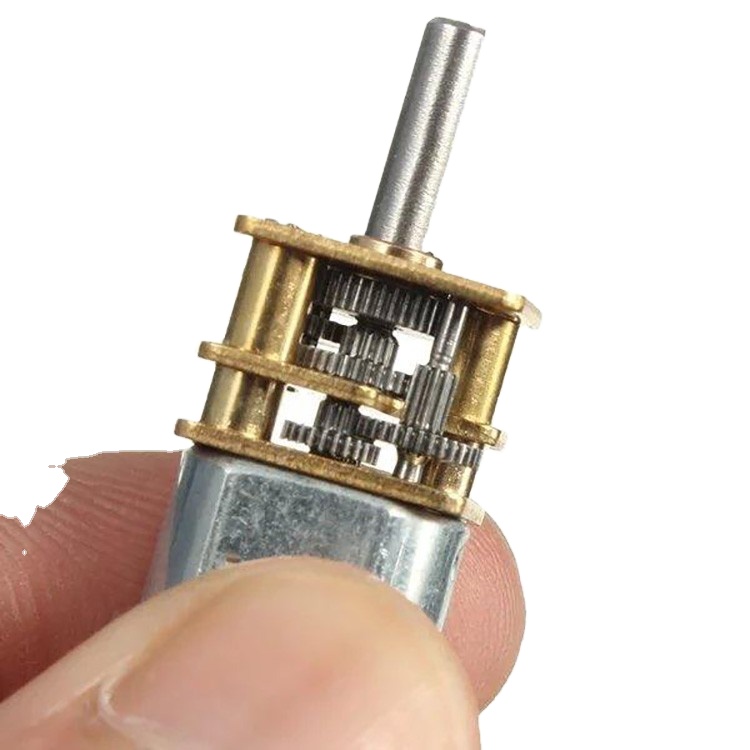

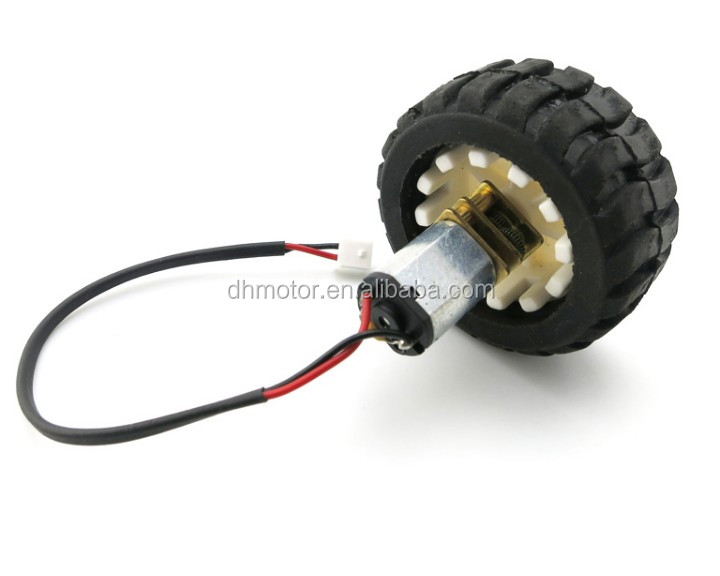

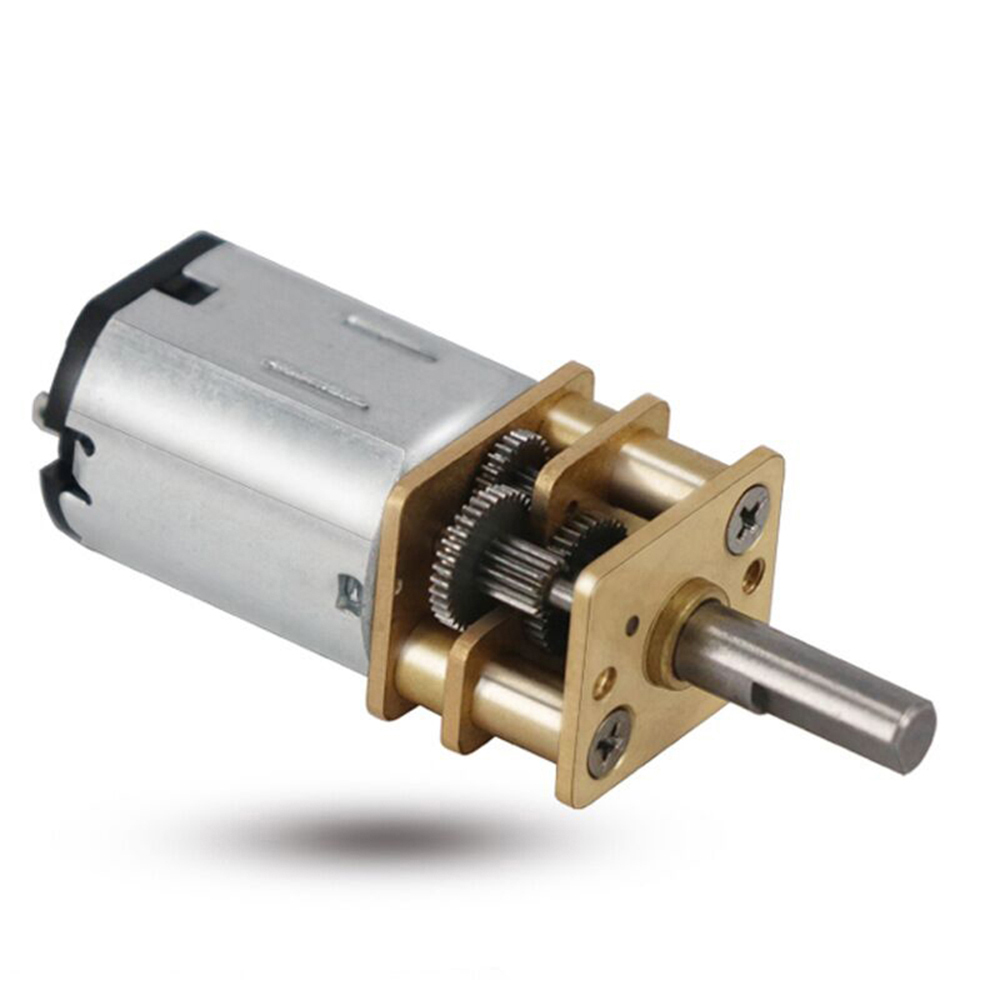

12mm 45/75 RPM 2.5v 3v 4.5v 6v 7.5v 12v DC Micro Gear Motor with Wheel for Toy Car DGA12-N20

1 / 5

12mm 45/75 RPM 2.5v 3v 4.5v 6v 7.5v 12v DC Micro Gear Motor with Wheel for Toy Car DGA12-N20

Send Inquiry

Product Description

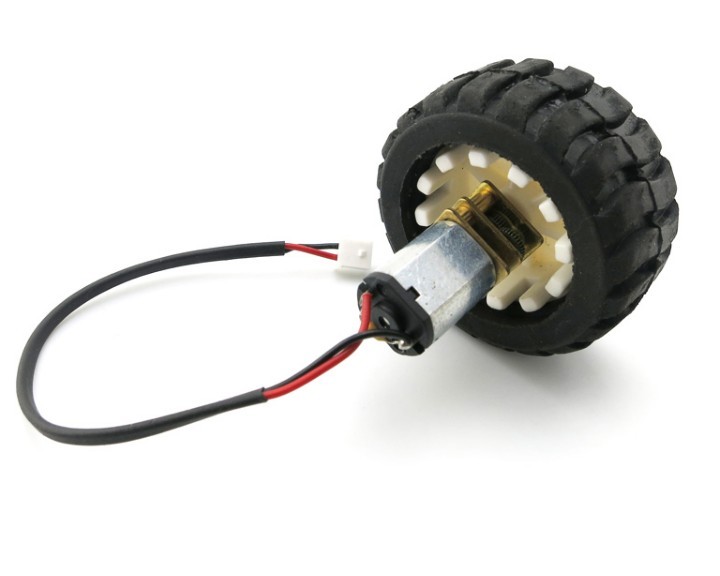

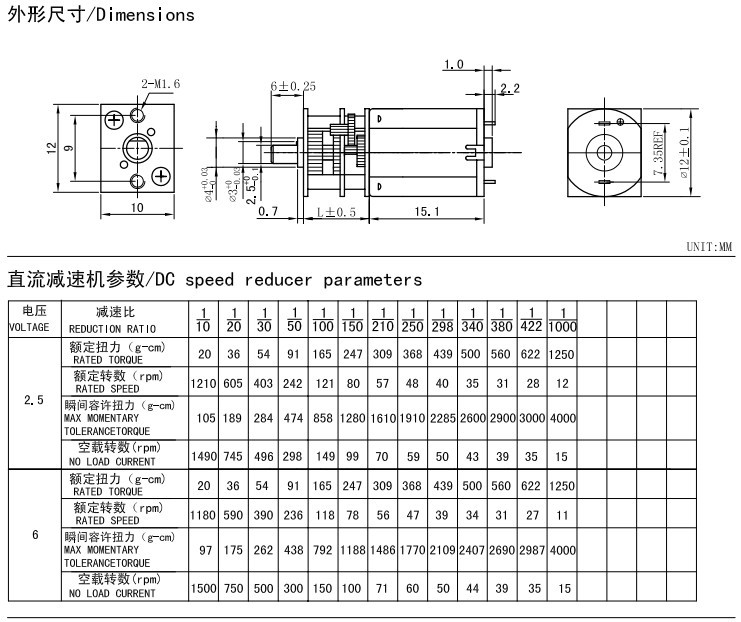

N20 GEAR MOTOR

● 1. Note: The voltage, speed, torque, current, shaft length can be adjustable for your request

● 2. Size: 12mm diameter, 24mm length

● 3. Motor Type: DC Brush Motor

● 4. Application: Personal care, Home application, Power tool, Business equipment, Medical equipment

Product Name	DC GEAR MOTOR N20
Rated Voltage	3.0~12.0V
On Load Speed	10~2000rpm
On Load Current	0.02A~0.06A
Stall Torque	50~5000g.cm
Stall Current	3.5A Max
Life Span	500 hours Max

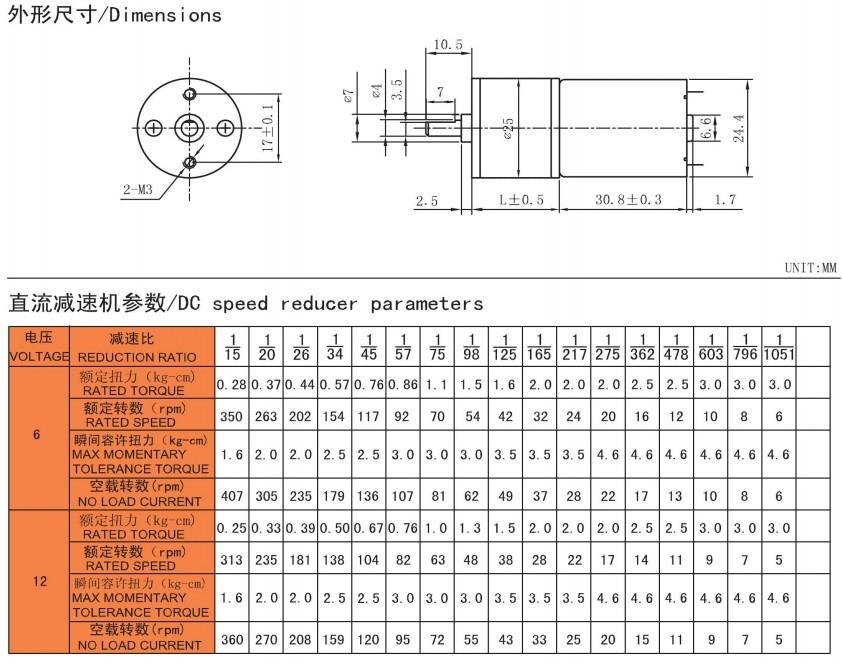

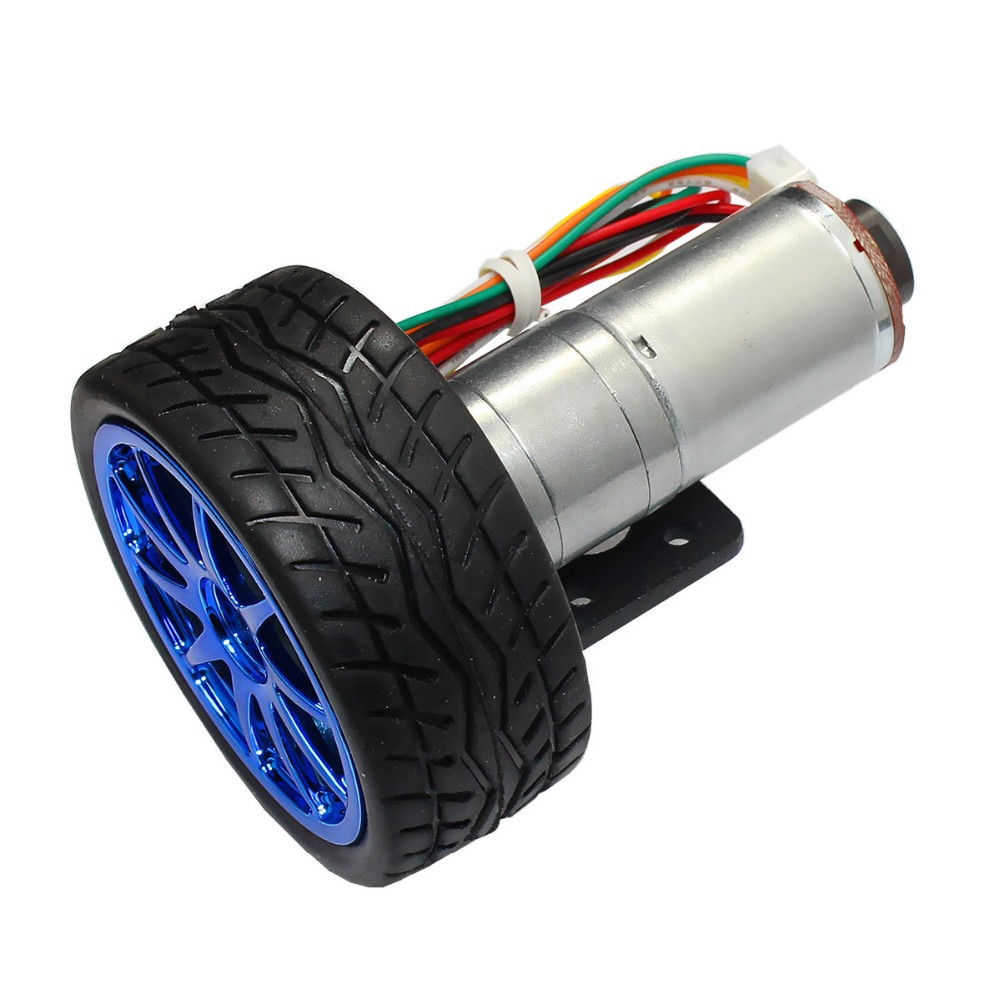

DGA25-370 GEAR MOTOR

● 1. Note: The voltage, speed, torque, current, shaft length can be adjustable for your request

● 2. Size: 24mm diameter, 39mm length

● 3. Motor Type: DC Brush Motor

● 4. Application: Personal care, Home application, Power tool, Business equipment, Medical equipment

Product Name	DGA25-370 GEAR MOTOR
Rated Voltage	3.0~24V
On Load Speed	5000rpm
On Load Current	0.6A
Stall Torque	440g.cm
Stall Current	3.5A
Life Span	2000 hours

Related Products

Certifications

Frequently Asked Questions

What are your main product categories?

Our main products include Dia 10~52mm DC Micro Motors and Gear Motors, Auto DC motors, Brush DC motors, Brushless DC motors, Spur Gear motors, Vibration motors, and customized motion solutions.

What are the primary applications for these micro DC gear motors?

Our motors are widely used in Home Appliances, Office Equipment, Health-care devices, Sanitation industries, Banking systems (vending machines, payment equipment), and automation industries like electronic power locks.

Do you offer customization for motor specifications?

Yes, we provide full customization. Our design team can adjust voltage, speed, torque, current, and shaft dimensions to meet your specific technical requirements.

What technical data is required to place an order?

To provide the most accurate solution, please provide the required voltage, speed, torque, and overall dimensional constraints for your application.

What should I do if I don't know the exact technical parameters?

Please contact our sales team. We will guide you through the selection process and help determine the best motor specifications based on your intended application.

What is the typical lifespan of these DC gear motors?

The lifespan varies by model and usage; for example, our N20 series supports up to 500 hours, while the DGA25 series can reach up to 2000 hours under rated conditions.
