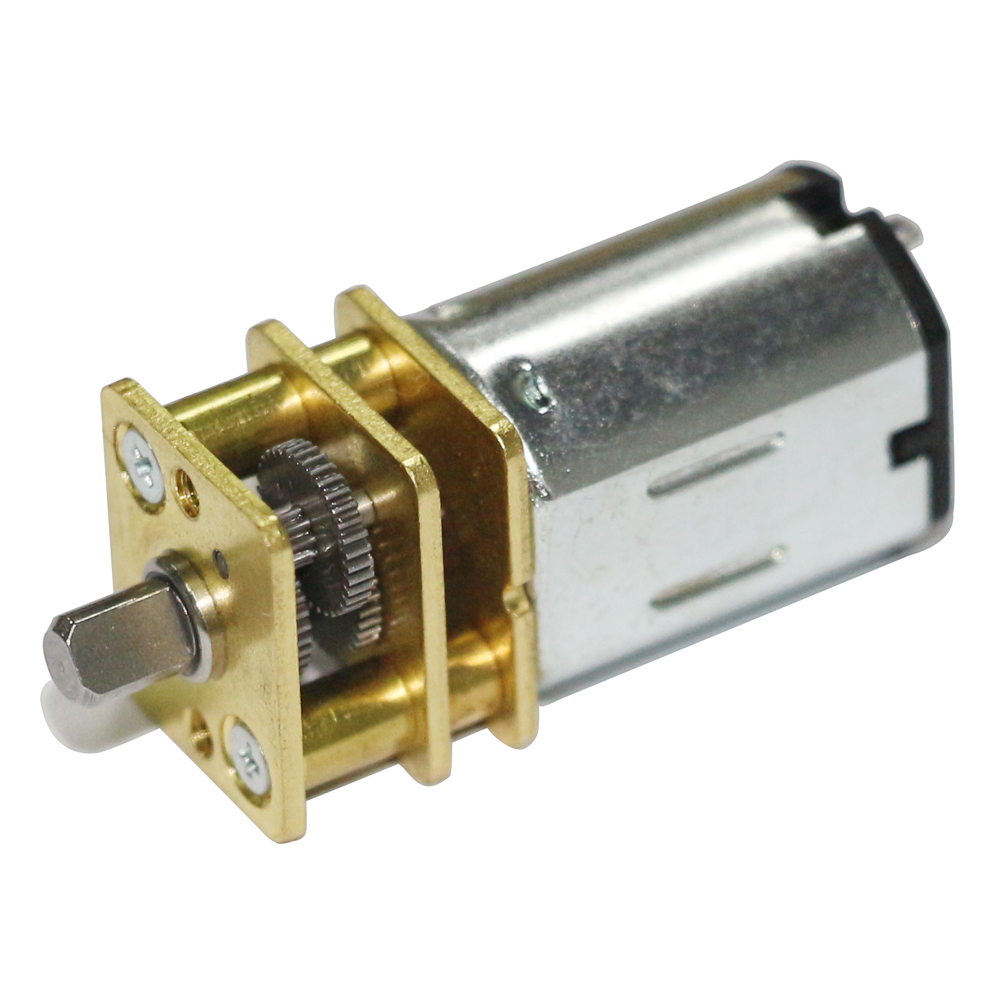

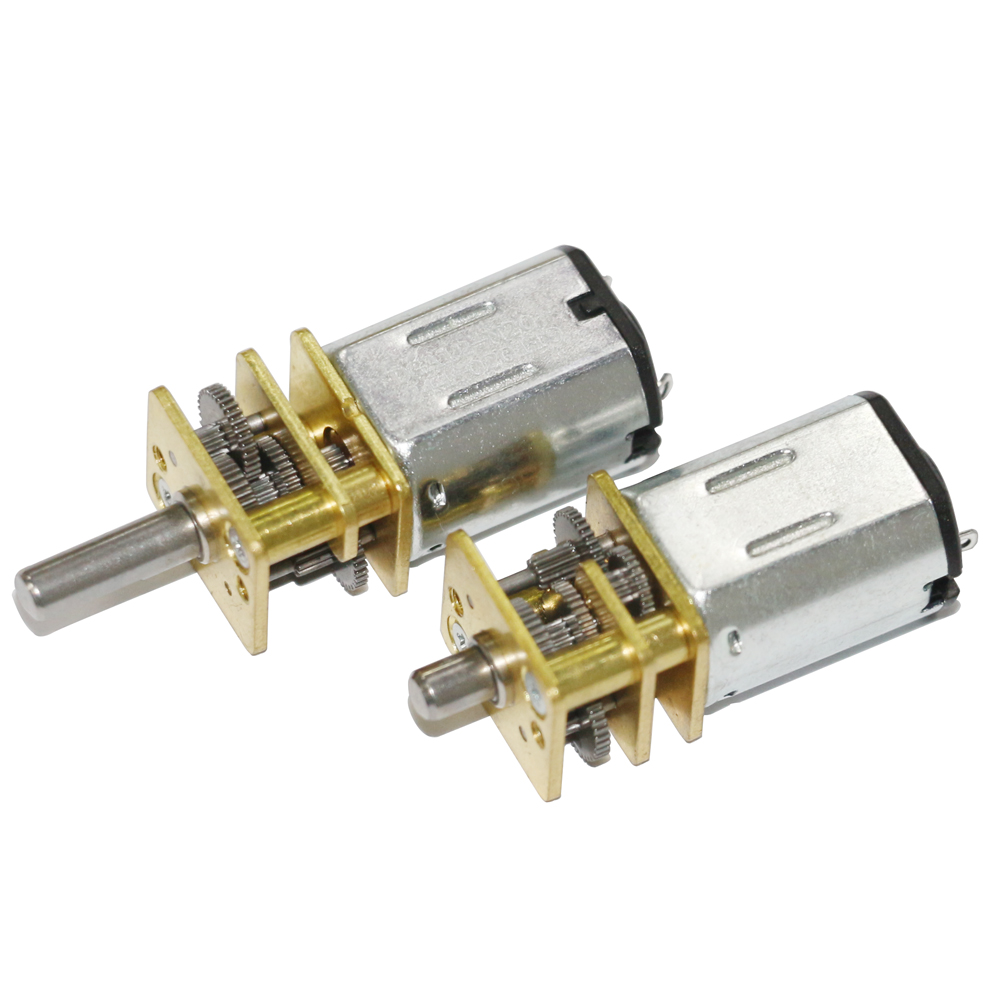

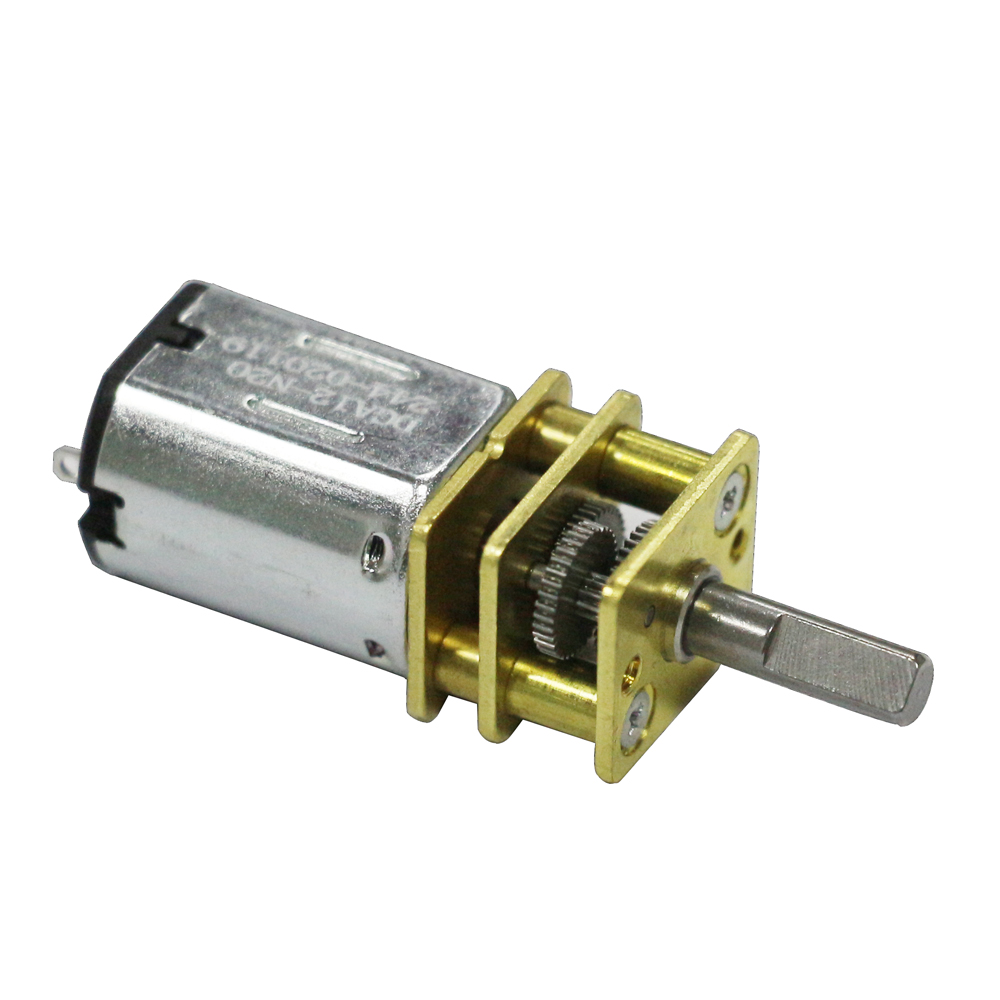

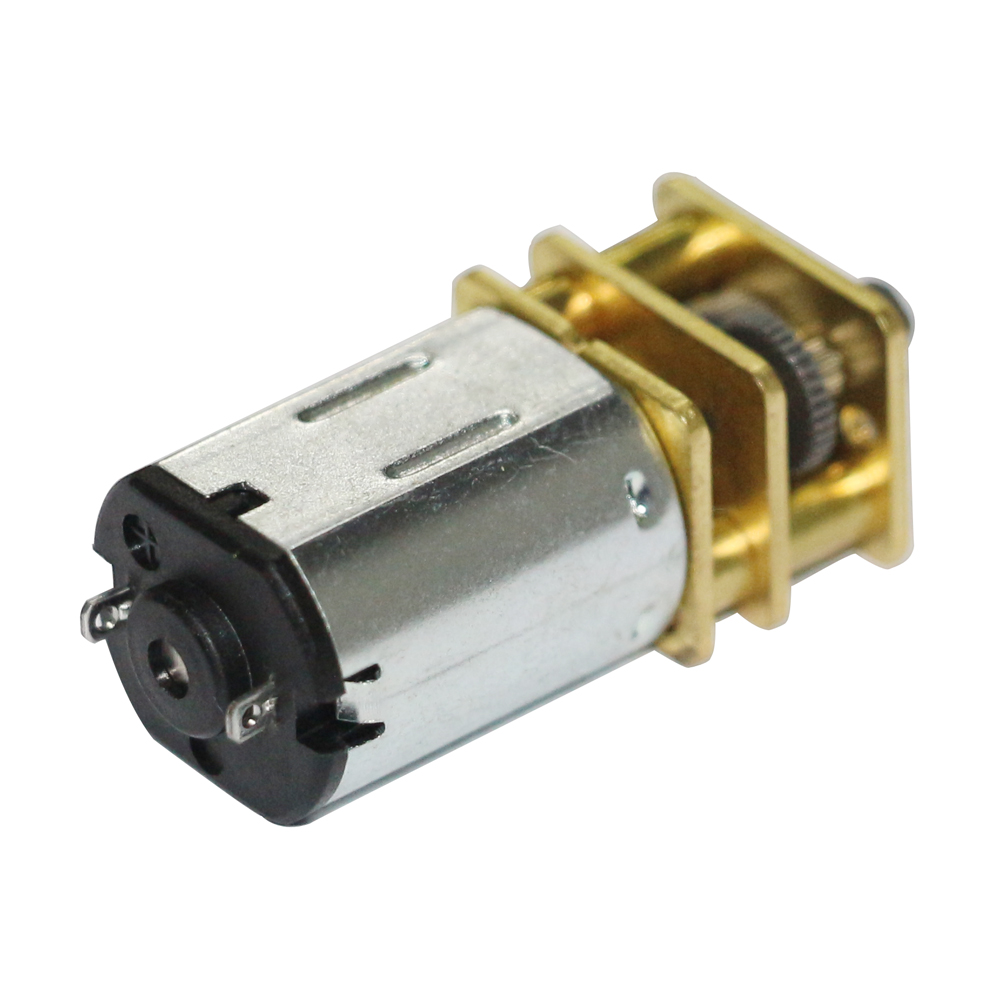

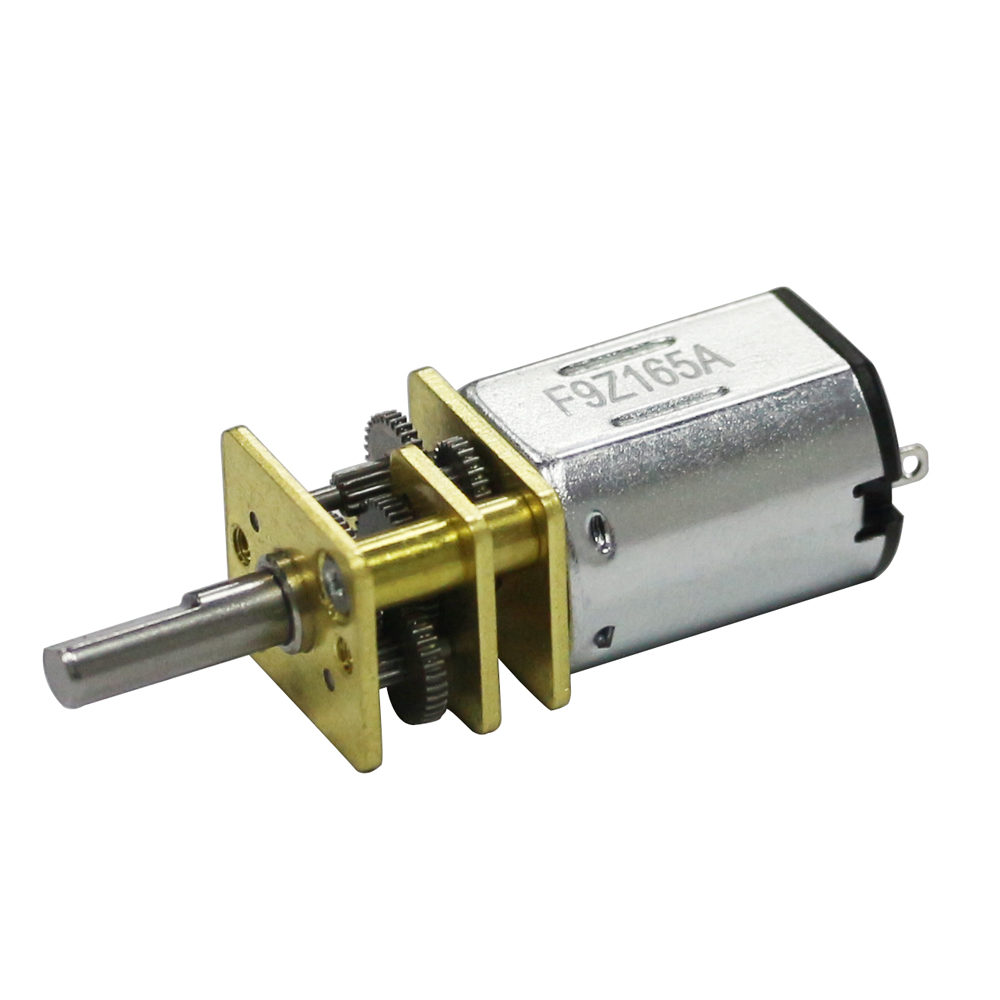

3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
1 / 5
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price
3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price

3v 5v 6v 12v 300rpm N20 Dc Gear Motor with Low Price

Send Inquiry

Product Description

Product Specification
Item DC Gear Motor
Size D10mm*12mm*L15mm+Gearbox Length
Voltage 1.5V-24V customized
Unload Speed 10-3000rpm customized
Rated Torque ≤1000g.cm customized
Max Torque ≤3500g.cm customized
Wattage 0.2-0.8watt customized
Application Robot, Lock, toys, electric power tool
Customization Services
Motor's voltage, speed, ratio, torque, screw length, and shaft length can be fully customized to meet your requirements.
Micro Gear Motor View 1
Micro Gear Motor View 2
Micro Gear Motor View 3
Micro Gear Motor View 4
Product Variations
Screw Shaft Motor
With M3/M4 screw shaft
Length: 10mm~45mm
3D Pen Motor
For 3D Pen Printer
Wheel size customized
Door Lock Motor
Big metal gear wheel for Door lock
Encoder Motor
With Encoder for precise instrument
Right Angle Motor
Right Angle for Robot and lock
U Type Motor
Back output shaft U type for toys
Packing & Delivery
Packaging 1
Packaging 2
Packaging 3

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Delivery Logistics
Manufacturing Capability

Professional micro motor manufacturer for 10 years. Our production capacity includes:

Brush DC Motor: Φ6mm—Φ60mm
Brushless DC Motor: Φ12mm-Φ42mm
Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm
Stepper DC Motor: Φ6mm—Φ24mm
Vibration DC Motor: Φ4mm—Φ45mm
Voltage Range: DC 1.5V-220V, AC 110V-240V
Speed Range: 0.1-80,000RPM
Output Torque: 0.01-500Kg.cm
Gearbox Ratio: 1:4 to 1:5000
Factory View 1
Factory View 2
Factory View 3
Equipment
FAQ
What are your main products?
We specialize in Diameter 4~60 mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless DC motors, Spur Gear motors, Vibration motors, and more.
What is the main usage of the micro DC gear motor?
Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Banking Systems (vending machines, payment equipment), and automation industries like power door locks.
Do you accept customization?
Yes. We have a strong design team to handle technical requirements and provide customized motor solutions.
What kind of data do I need to provide to place an order?
Please provide the required voltage, speed, torque, and overall dimensions for your application.
What if I don't know the specific motor data?
Simply contact our sales team and describe your requirements or application; we will recommend the best-fit model for you.
Are your packaging services secure for international shipping?
Yes, we provide professional, environmentally friendly, and efficient packaging to ensure the safety of your goods during transit.
Quality Certification
Please feel free to contact us regarding any motor questions!
