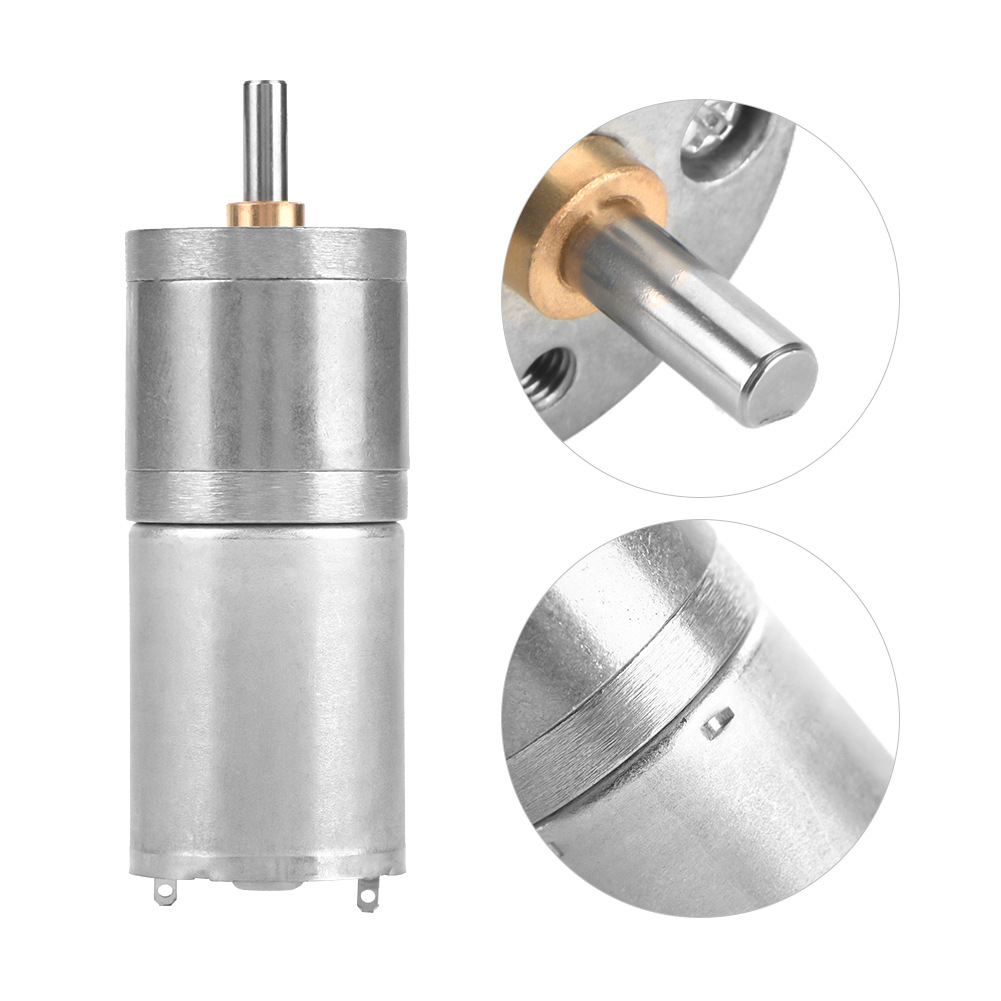

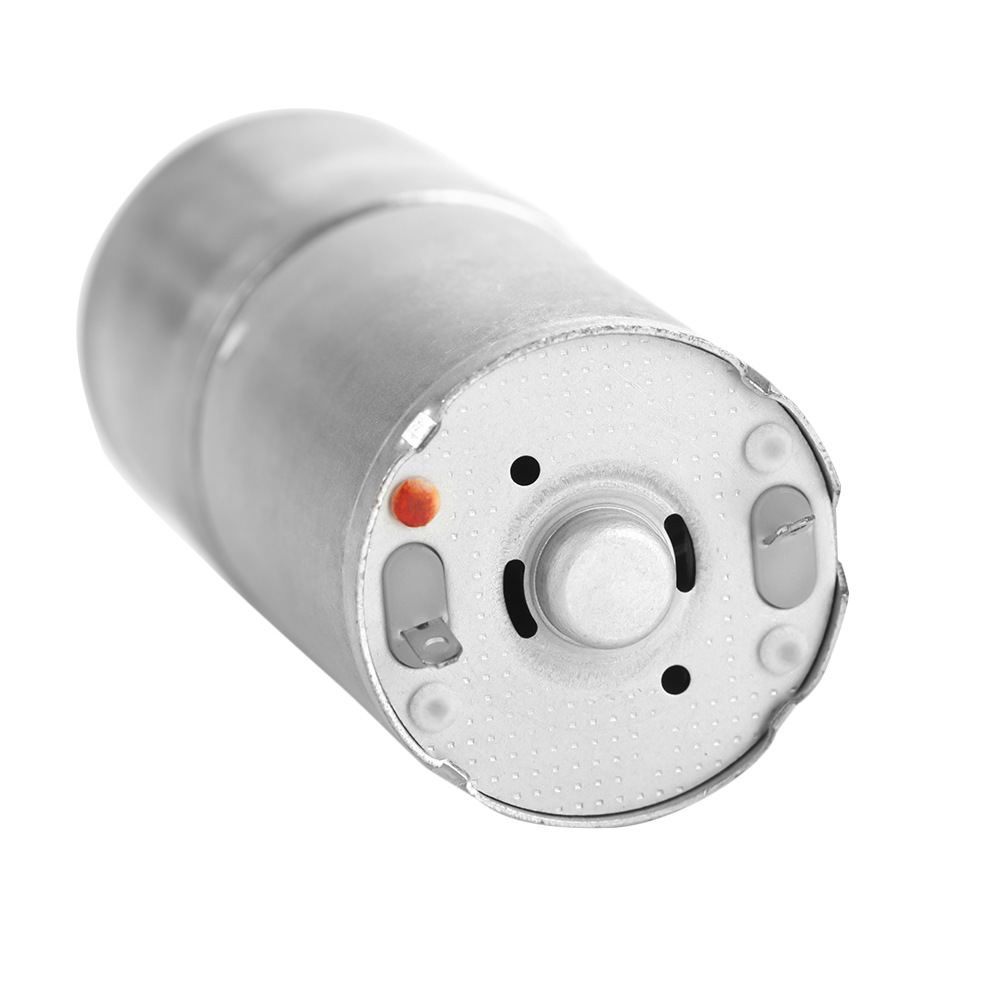

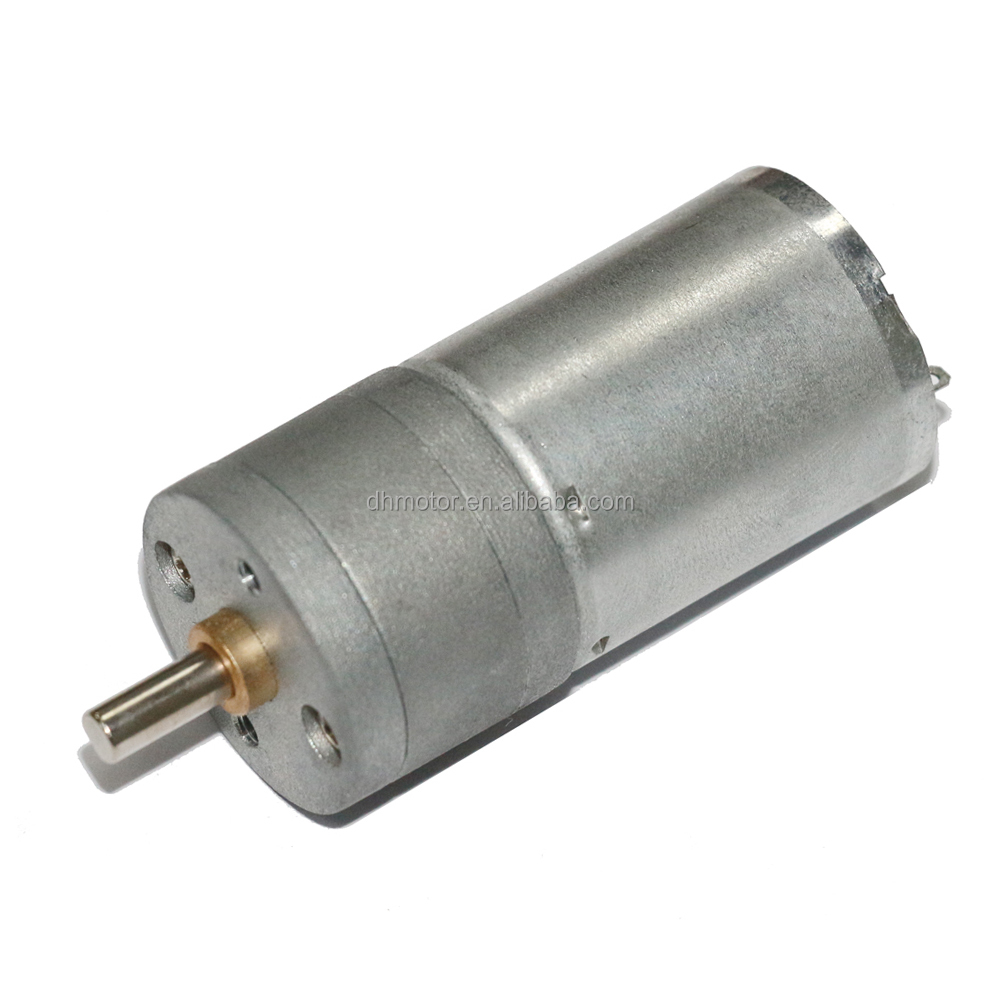

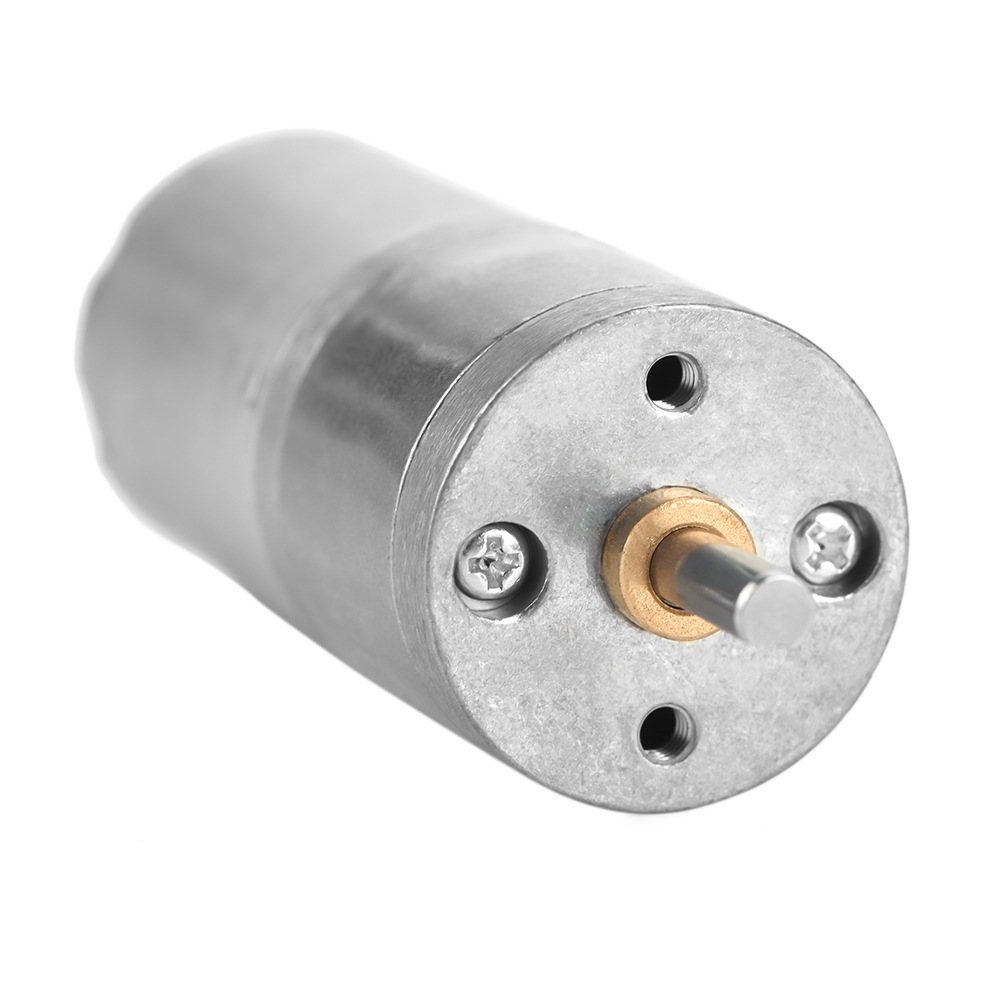

High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
1 / 5
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction
High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction

High Quality 25mm Permanent Magnet Gear Motor 12v 24v DC Motor with Brush Commutation and Gear Reduction

Send Inquiry

Product Description

Product Description
Model Number DGA25-370 Type Gear Motor
Usage Home Appliance Certification CCC, CE, ROHS
Torque 2 kg.cm Construction Permanent Magnet
Commutation Brush Protect Feature Drip-proof
Speed (RPM) 28rpm Continuous Current 0.147A
Output Power 1.1W Voltage 12V
Efficiency IE 1 No Load Speed 33rpm
Technical Specifications
Key Features: 12v 24v dc motor with gear reduction, 25mm geared dc motor 12 volt.
  • High quality 25mm 12v 24v DC gear motor with gear reduction
  • DC motor with encoder compatibility
  • RF370 motor + 25mm diameter gear head
  • 4mm D-shape output shaft
  • Customizable Reduction Ratio
  • Life time: 2500H
  • Low noise, low current, and no spark design
  • 16 pulse signal encoder support
Typical Applications

Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment.

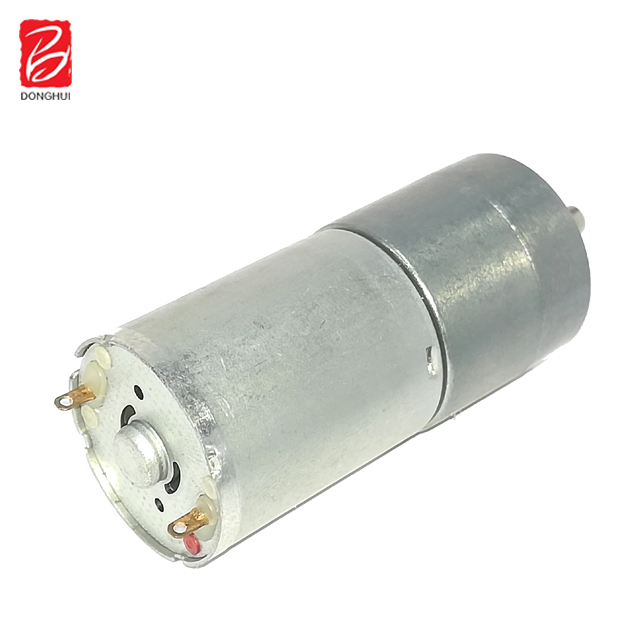

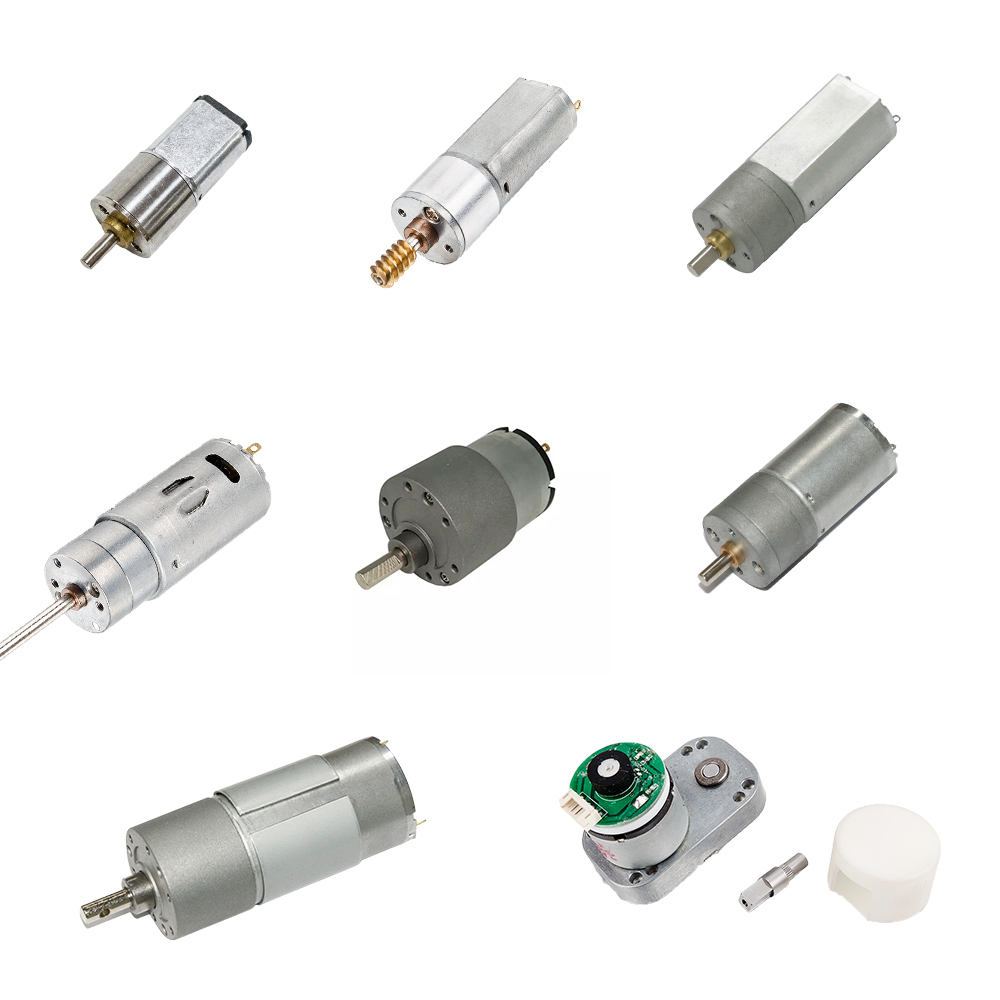

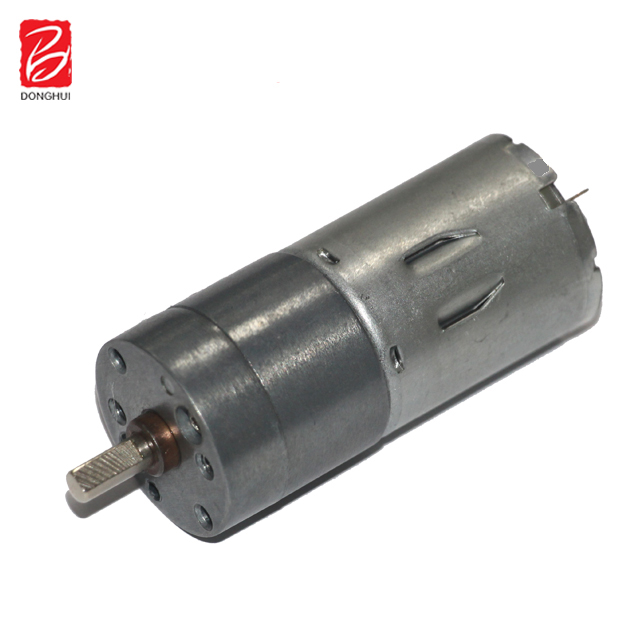

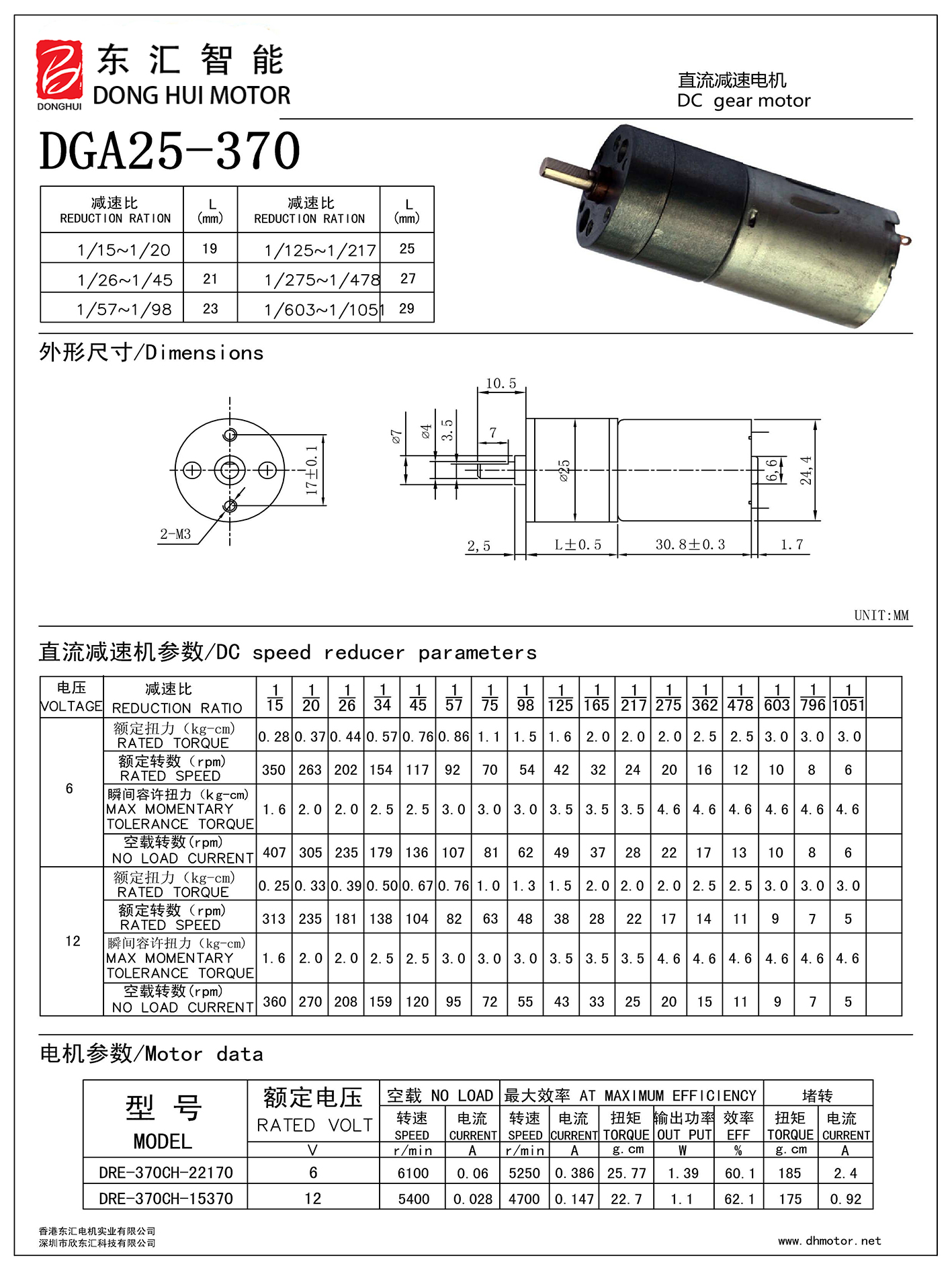

Gear Motor Application 25mm DC Motor Details Permanent Magnet Gear Motor DC Motor Structure
Performance Data
Voltage Range 6V, 12V, 24V
Speed Range 5 - 410 RPM
Torque Range 0.05 - 5 kg.cm
Reduction Ratios 1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, 1/478
Manufacturing Capabilities
Production Line Quality Control

Expertise in the development and production of micro motors including:

  • Micro DC motors (Dia 4~100mm)
  • DC gear motors and Spur gear motors
  • Coreless and Brushless motors
  • Vibration motors for various precision fields
  • Voltage capability from 1.5V to 42V DC and AC rectification (100V-240V)
Packaging & Shipping
Packaging Details 240PCS/CTN, CARTON DIMENSION: 415*315*210 MM
Delivery Detail Within 25 days
Frequently Asked Questions (FAQ)
Q1: What is the primary voltage support for this gear motor? A1: This motor primarily supports 6V, 12V, and 24V DC configurations, with a wider range available from 1.5V to 42V.
Q2: Can the gear reduction ratio be customized? A2: Yes, the reduction ratio is customizable. Standard ratios range from 1/15 up to 1/1051 to meet specific speed and torque requirements.
Q3: Is the motor compatible with encoders? A3: Yes, this model can be equipped with an encoder, providing a 16-pulse signal for precise control.
Q4: What are the typical applications for the DGA25-370 series? A4: It is widely used in home appliances, medical equipment, electronic locks/safe boxes, robots, and office automation equipment.
Q5: What is the expected operational lifespan of the motor? A5: The motor is designed for a lifespan of approximately 2500 hours under standard operating conditions.
Q6: What is the standard lead time for bulk orders? A6: For standard MOQ of 100 pieces, the delivery time is generally between 20 to 25 days.
