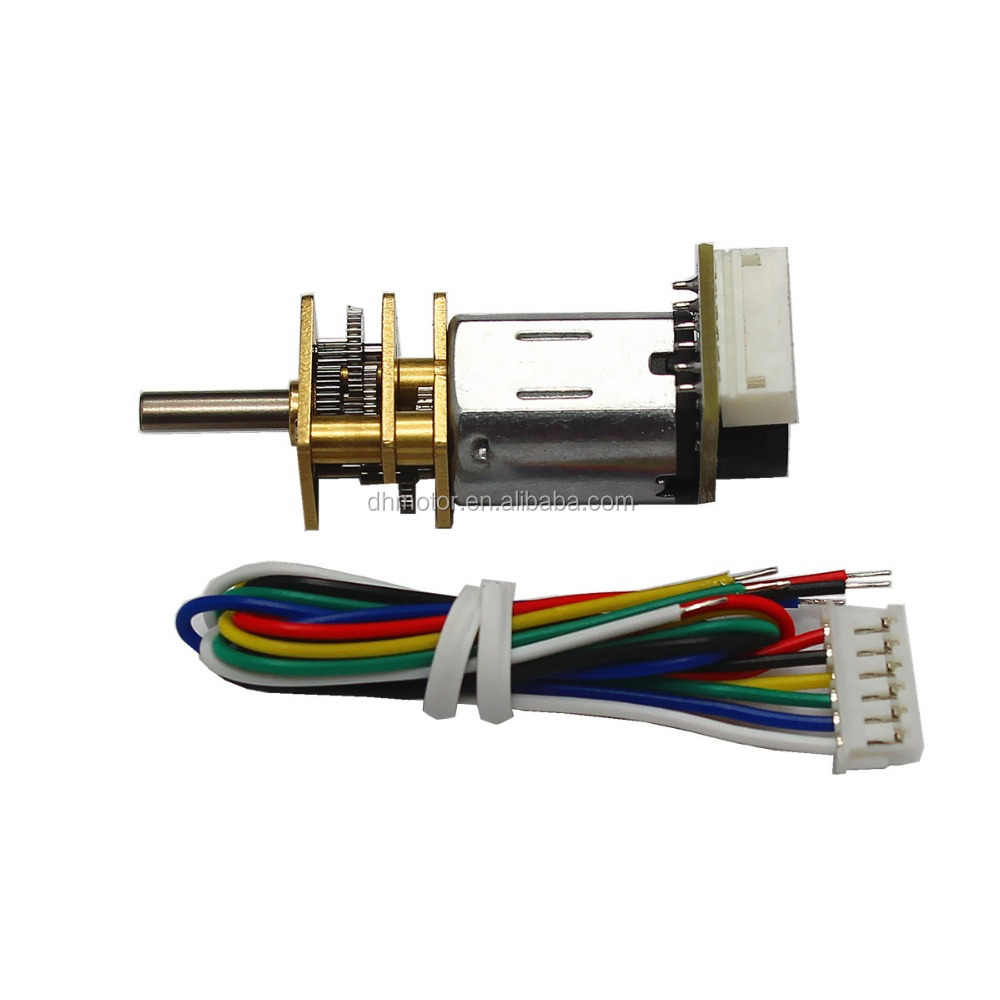

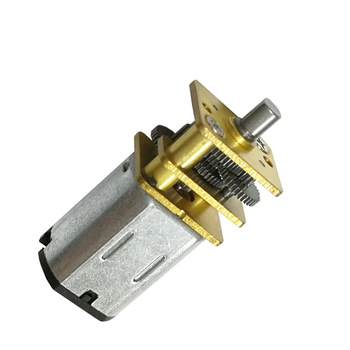

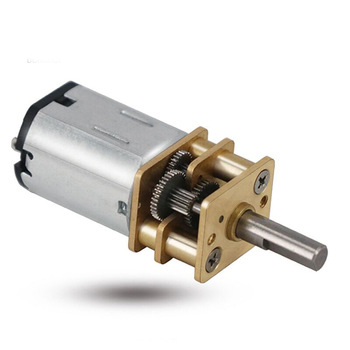

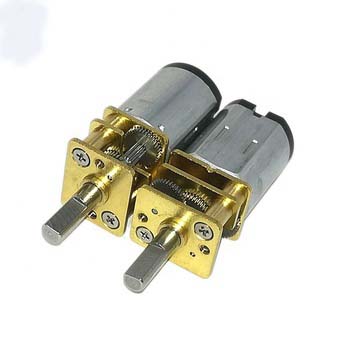

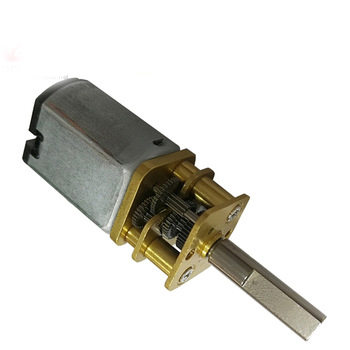

N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
1 / 5
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder
N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder

N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder

Send Inquiry

Product Description

■ Product Description
Place of Origin: Guangdong, China (Mainland) Model Number: DGA12-N20
Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance Certification: ROHS, ISO
Type: Micro Motor Torque: 300 G.cm
Construction: Permanent Magnet Commutation: Brush
Protect Feature: Drip-proof Speed(RPM): 56 RPM
Continuous Current(A): 0.12A Output Power: 0.3 W
Voltage(V): 3 v Efficiency: IE 1
Shaft: Dia 2.0mm Weight: 10g
No Load Speed: 71 rpm Style: 12mm gear motor
⚙ Specifications

N20 12mm geared motor 3v 60 rpm, 12mm gear motor dc motor for door lock, 12mm dc gear motor with Encoder

N20 12mm Geared Motor
✔ Gear Motor, DGA12-N20
✔ Rated Voltage: 1.5-12V
✔ Speed Range: 10-2000RPM
✔ Can be equipped with encoder
✔ Widely used in robots and locks
★ Key Features & Applications
● Widely used in robot, lock, Auto shutter, USB fan, Slot machine, Money detector.
● Coin refund devices, Currency count machine, Towel dispensers.
● Automatic doors, Peritoneal machine, Automatic TV rack.
● Office equipment, Household appliances.
● Low noise, low current and no spark.
● Reduction Ratio: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000.
● Ultra-compact size: 12.0*24.0*10.0mm.
Gear Motor Detail

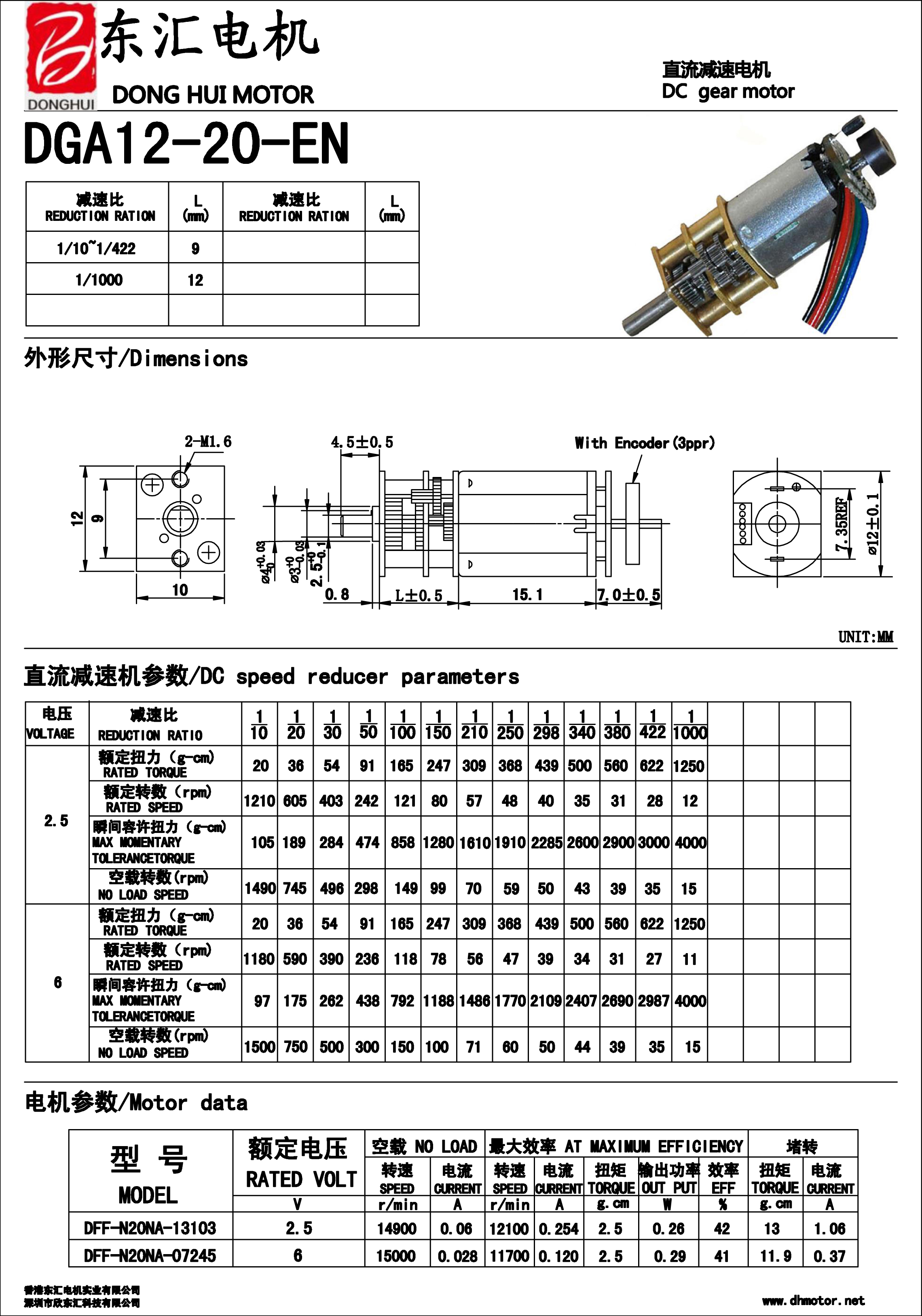

Gear Motor Dimensions
📦 Packaging & Shipping
Packaging Details: 80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 11*9*6.75 INCH
Delivery Detail: Within 25 days
🏭 Production Capability
Factory Overview
Production Line

Since establishment in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor.

▶ Main Products: Dia4~100mm DC Micro Motor, Auto DC motor, Coreless Brushless motor, Vibration motor etc.
▶ DC Voltage range: 1.5V - 42V (AC rectify options up to 240V).
▶ Speed range: 1 RPM - 30,000RPM.
▶ Stall torque: 1g.cm - 30kg.cm.
❓ Frequently Asked Questions
1. What is the standard voltage range for the N20 gear motor? The rated voltage typically ranges from 1.5V to 12V DC, depending on your specific application requirements.
2. Can this motor be used for smart locks and robots? Yes, the 12mm N20 gear motor is widely used in electronic locks, robotic projects, and medical equipment due to its high torque and compact size.
3. Does it support custom reduction ratios? We offer various reduction ratios including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000 to meet different speed and torque needs.
4. Is an encoder option available for this model? Yes, this 12mm DC gear motor can be equipped with an encoder for precise feedback and control.
5. What is the typical lead time for an order? Standard production and delivery usually take within 25 days, while sample orders can be processed in 15-20 days.
6. What is the MOQ for the N20 geared motor? The standard minimum order quantity (MOQ) is 100 pieces.
