China Factory Cheap Price Diameter 37mm 12v Dc Worm Gear Motor Two Way Motor Specifications with 528 Motor

1 / 5

China Factory Cheap Price Diameter 37mm 12v Dc Worm Gear Motor Two Way Motor Specifications with 528 Motor

Send Inquiry

Product Description

⚙️ Product Description

12V DC Worm Gear Motor Specifications

Rated Voltage: DC 12V
Speed No load: 50-200RPM
Max Torque: 2-6kg.cm (At Max Efficiency)
Motor Type: Precious Metal-brush motors
Dimensions: Diameter 37.0mm, Length 60.0mm
Shaft Diameter: 6.0mm
Weight: Approx 100g
Output Power: 1.5~3W

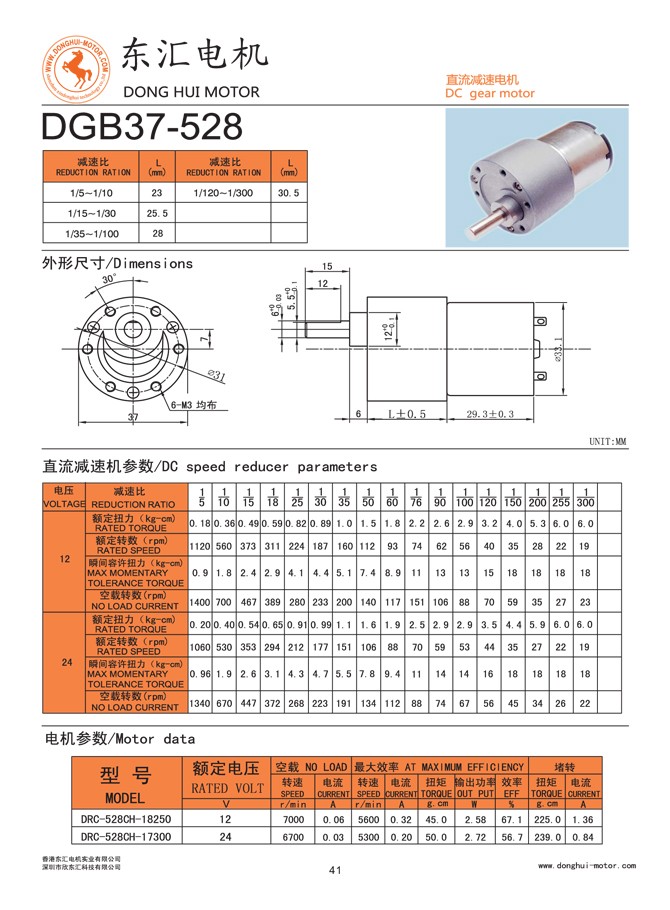

📐 Specifications & Dimensions

📦 Related Products

🏭 Production Excellence

🛡️

Military Grade Quality
High-precision gears and durable assurance.

🔬

Strong R&D Ability
Advanced design and development services.

🌍

Global Export Experience
10+ years experience in Germany, Japan, and USA.

🛠️

Customizable Performance
Free adjustment of voltage, speed, and torque.

Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras, and domestic appliances. With over 13 years of experience in producing precision DC motors and gear motors, we provide reliable solutions for various industrial and consumer needs.

❓ Frequently Asked Questions

1 What are your main product categories?

We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Brush/Brushless motors, Spur Gear motors, Vibration motors, and more.

2 What are the primary applications for these micro DC gear motors?

Our motors are widely used in home appliances, office equipment, health-care devices, sanitation industries, banking systems (vending machines, payment equipment), and automation industries like power door locks.

3 Do you offer customization for specific requirements?

Yes. We have a strong technical design team to handle customization requests and provide professional technical solutions.

4 What information is required to place an order?

Please provide the required voltage, speed, torque, and overall dimensions for your specific application.

5 What if I am unsure about the technical specifications?

Please contact our sales representatives. We will guide you through the selection process and answer all technical questions patiently.

6 Are your products suitable for high-precision equipment?

Absolutely. Our motors are designed for high-precision applications including medical equipment, robots, and intelligent security locks.
