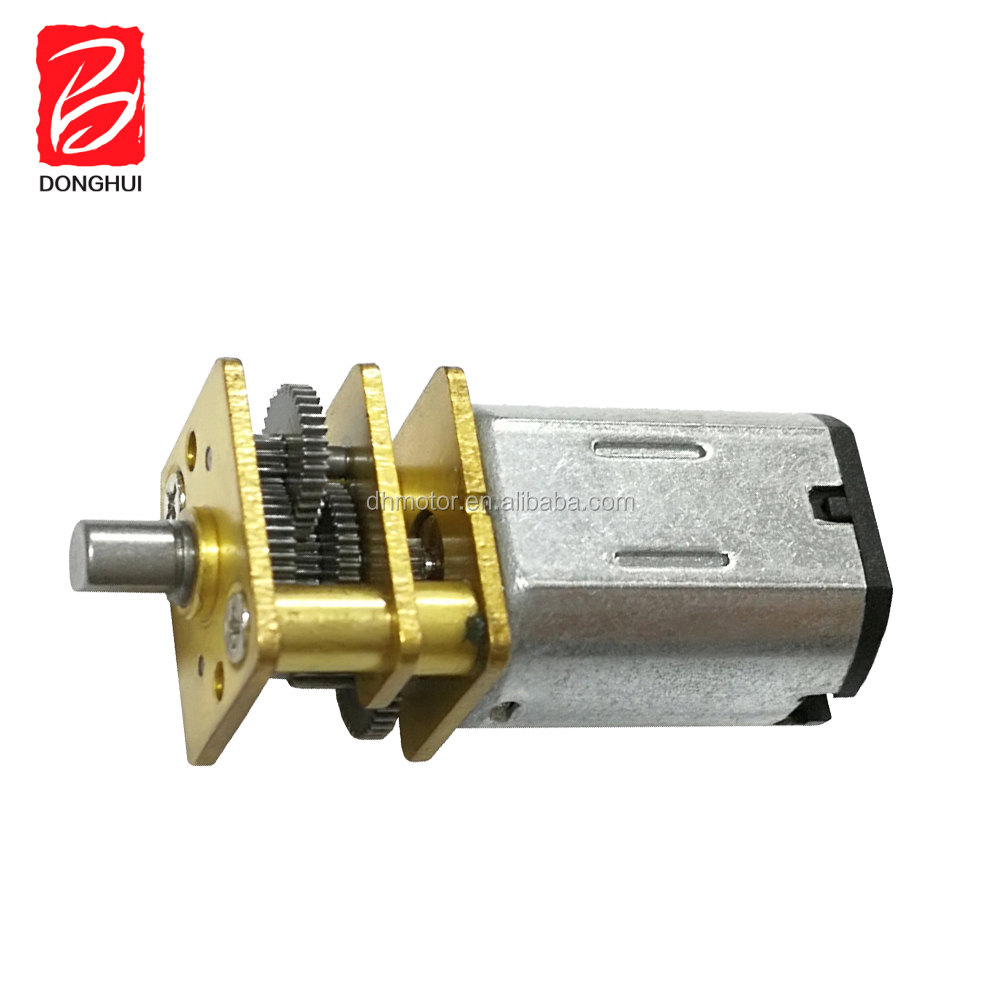

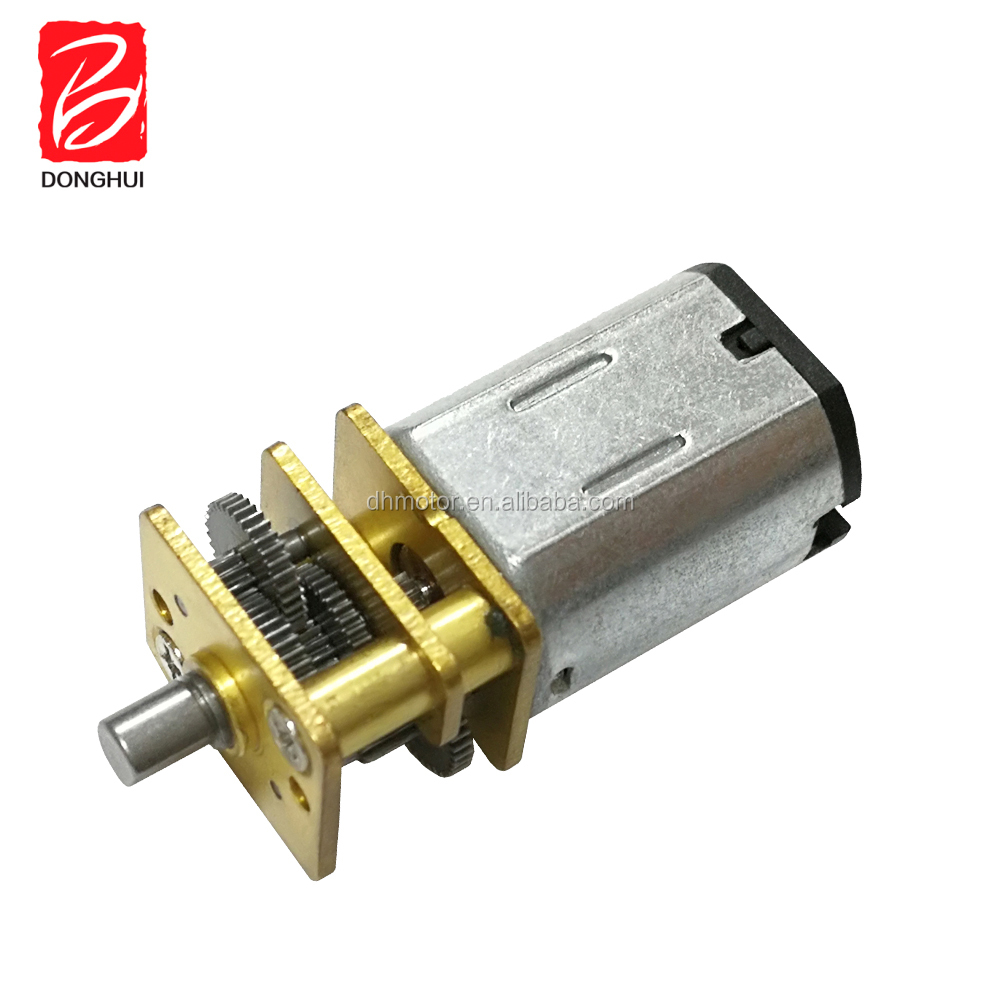

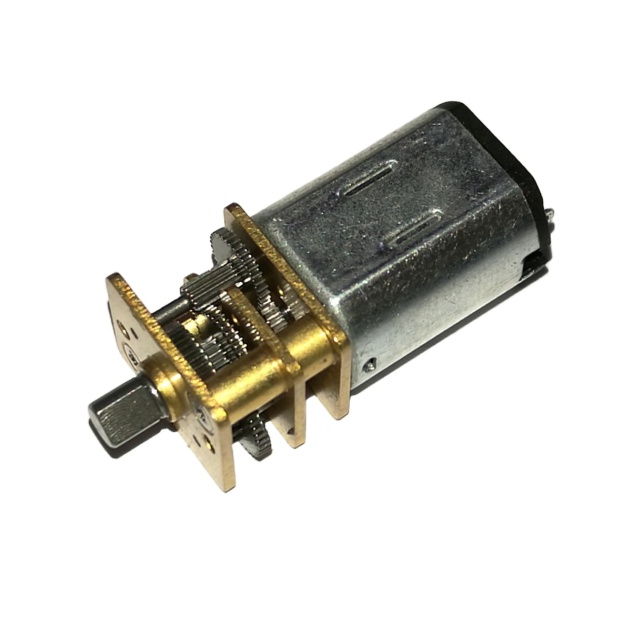

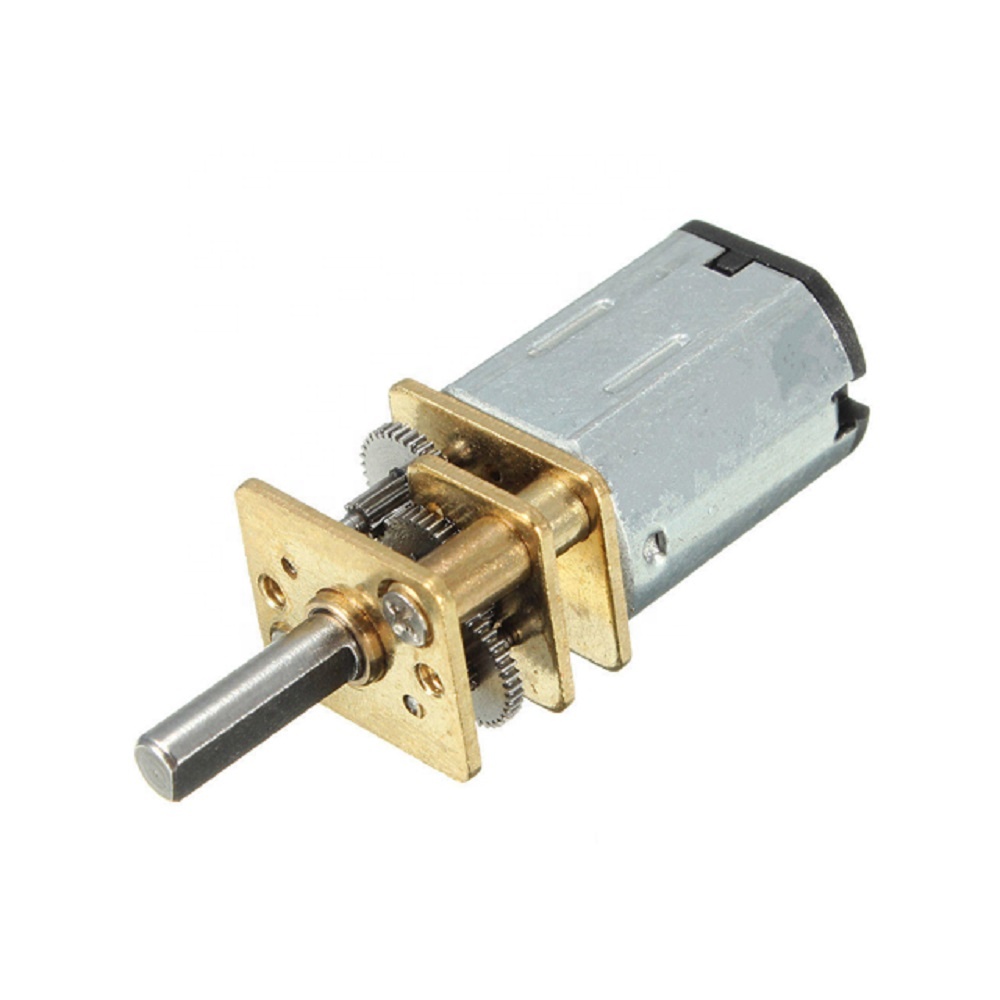

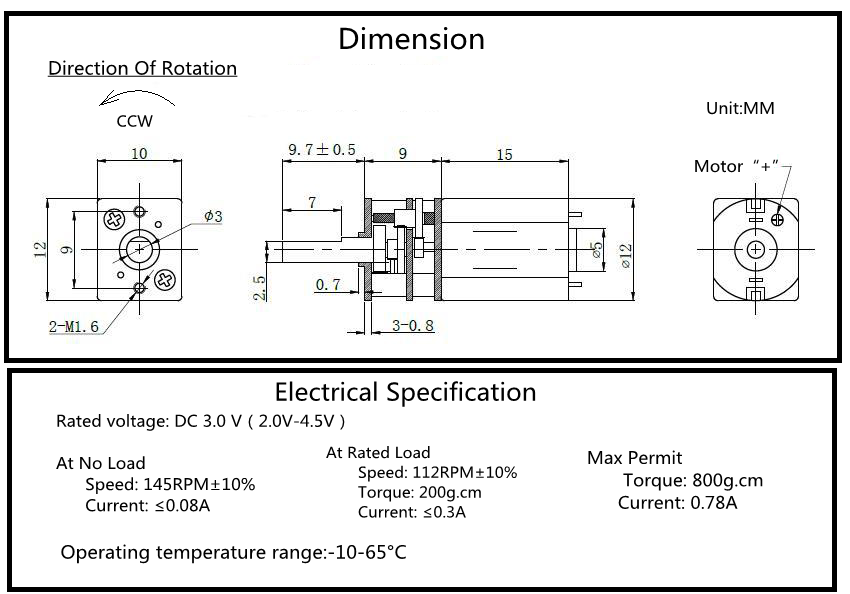

145rpm 3V 800g.cm | 10mm Shaft D2.5mm N20 Door Lock Robot Micro Geared Motor
| Item | Micro Gear Motor |

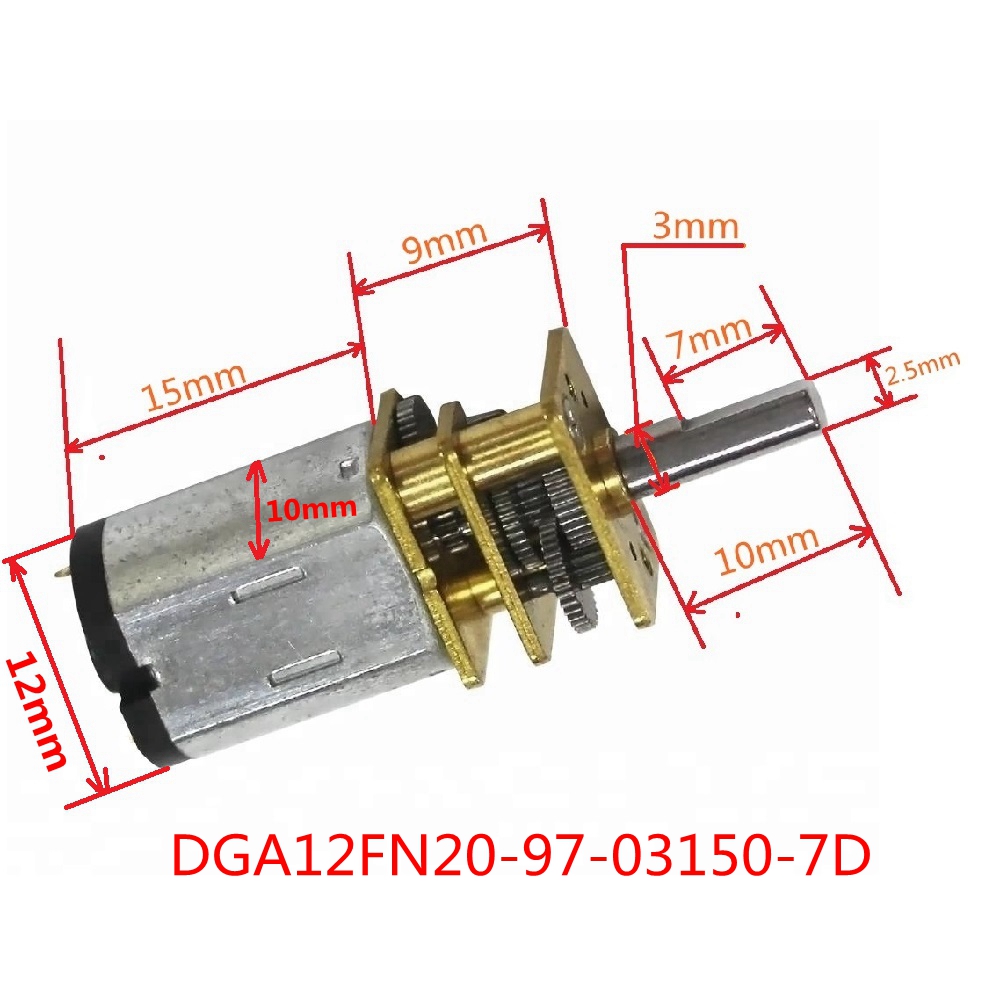

| Size | D10mm * 12mm * L24mm |
| Rated Voltage | DC 3.0 V |
| Working Voltage Range | DC 2.0 V ~ DC 4.0 V |
| Unload Speed | 145 rpm ± 10% |
| Unload Current | 60mA |
| Rated Speed | 112 rpm ± 10% |
| Rated Torque | 200g.cm |
| Rated Current | ≤ 320mA |
| Max Current | ≤ 800mA |
| Max Torque | ≤ 3500g.cm |
| Wattage | 0.29 watt |
| Application | Robot, Lock, Toys, Electric Power Tools |
M3 / M4 Screw Shaft
Length: 10mm - 45mm
For 3D Pen Printer
Wheel size customized
Metal Gear Wheel
Optimized for Door Locks
With Encoder
For precise instruments
Right Angle
For Robot and Locks
U-Type Shaft
Back output for toys
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Professional micro motor manufacturer with 10 years of expertise.
